P0038




DTC P0038 [LF, L3]

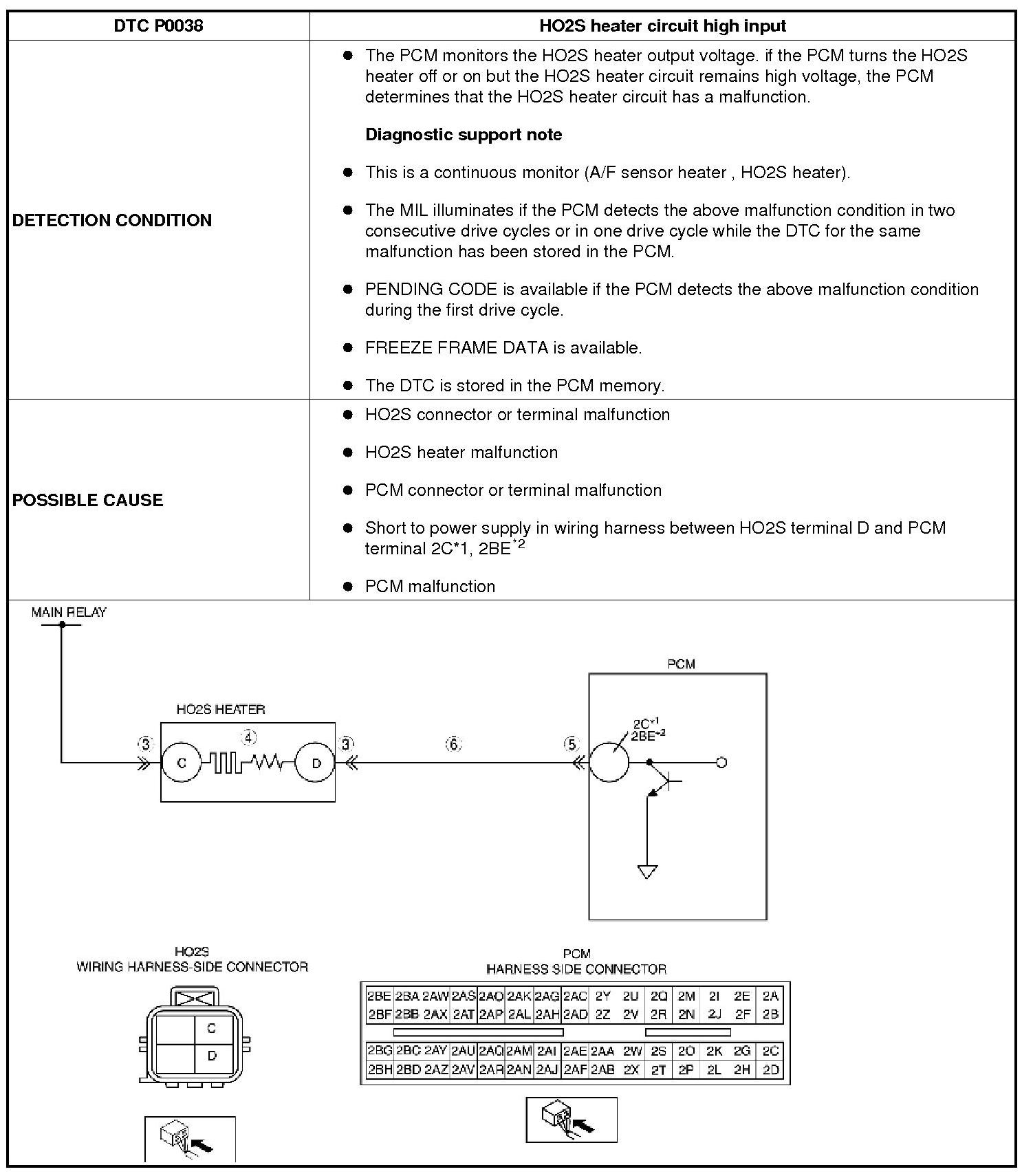

California Emission Regulation Applicable Model

Detection Condition/Possible Cause:

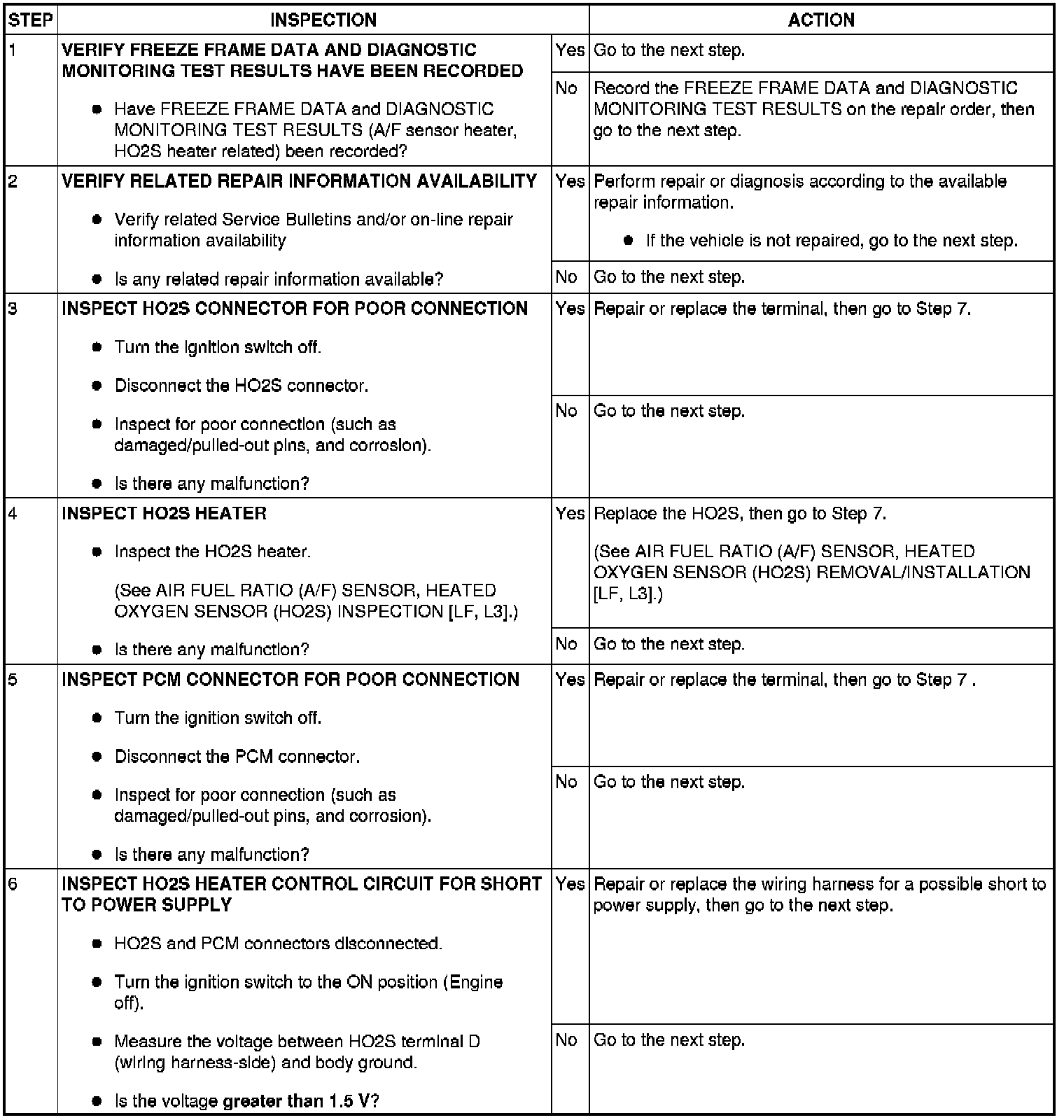

Diagnostic procedure

Step 1-Step 6:





Step 7-Step 8:

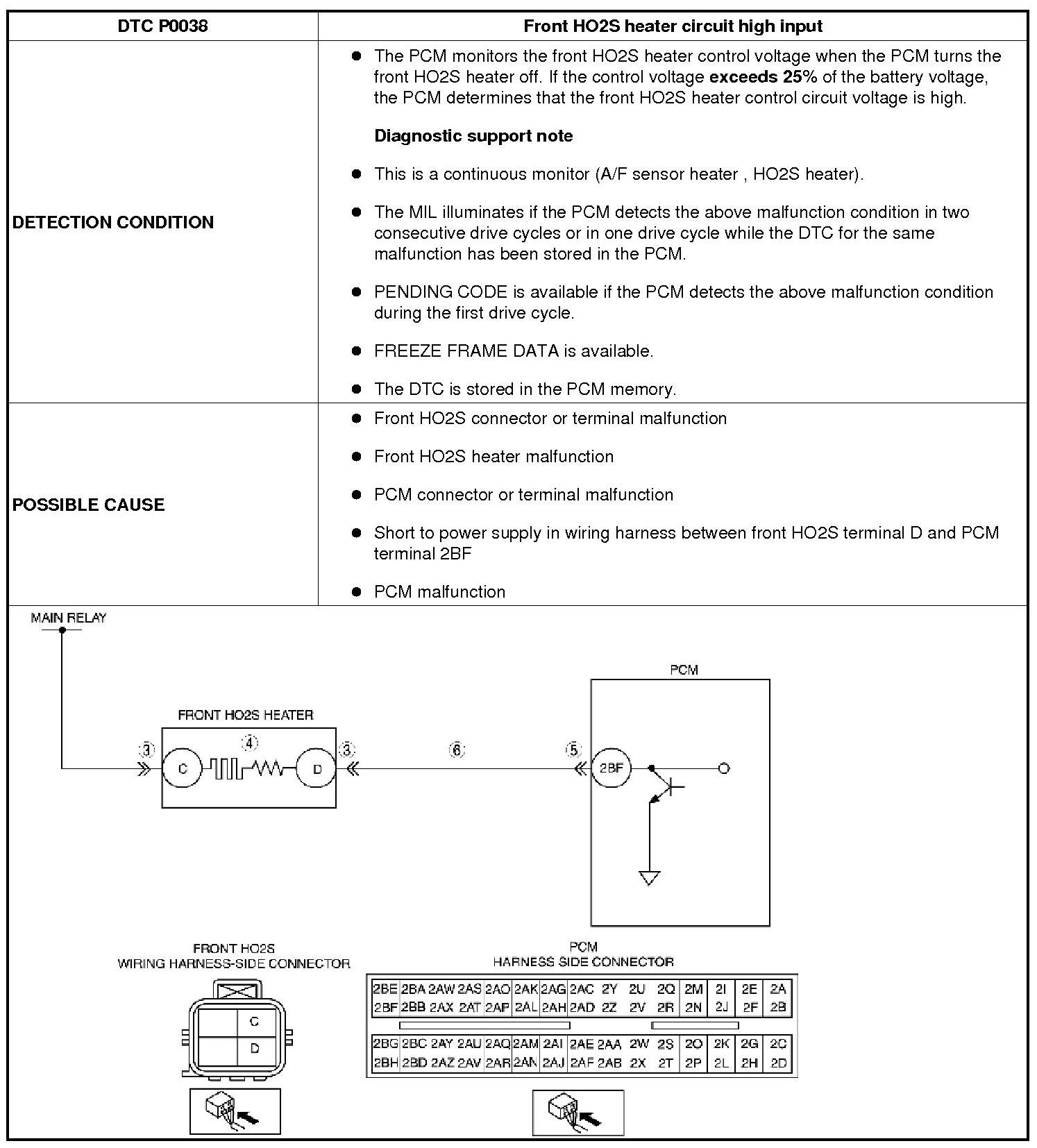

Except for California Emission Regulation Applicable Model

Detection Condition/Possible Cause:





*1
LF ATX
*2
LF MTX, L3

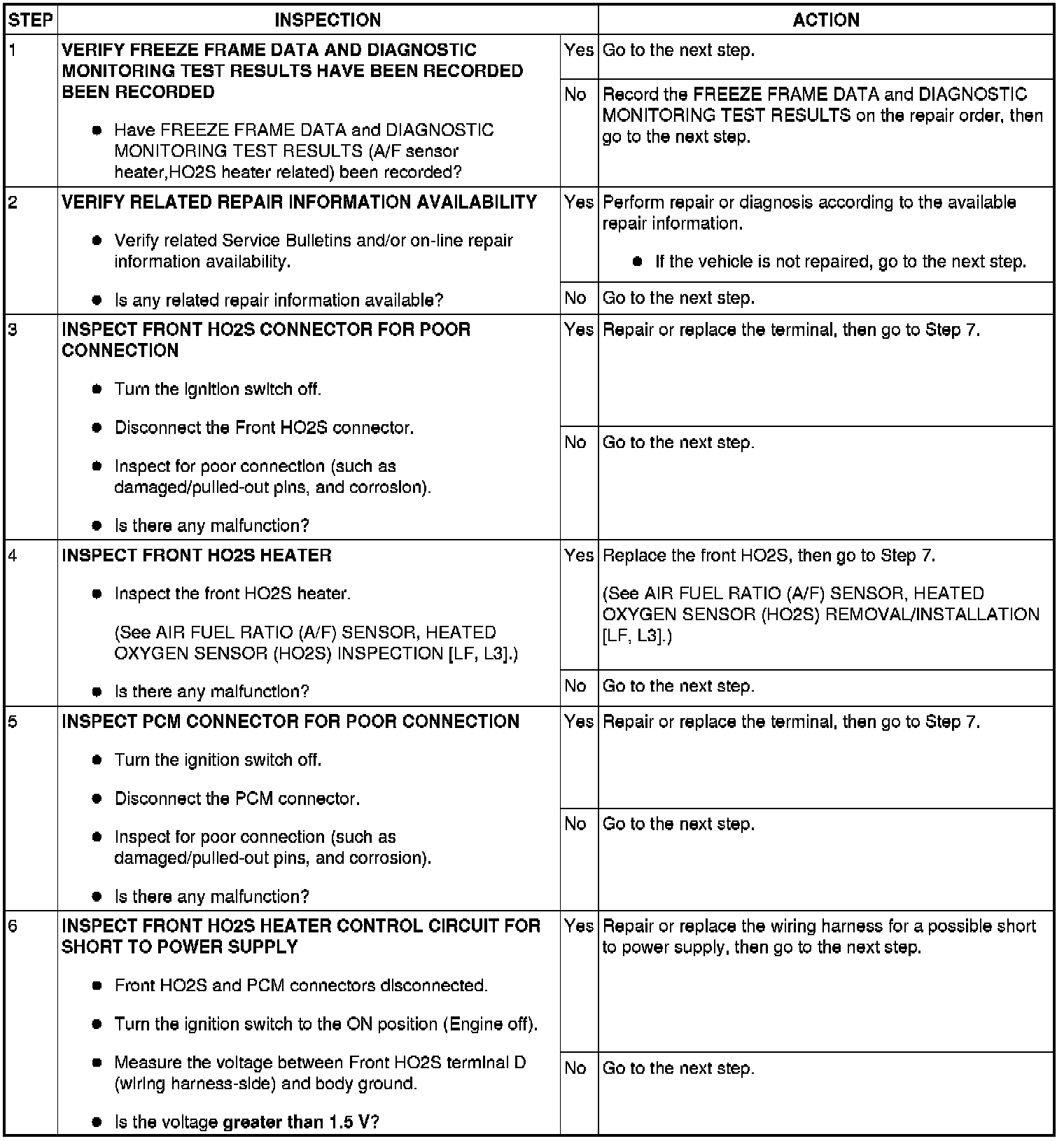

Diagnostic procedure

Step 1-Step 6:





Step 7-Step 8:
