Dynamic Stability Control (DSC)




DTC C1145, C1155, C1165, C1175 [DYNAMIC STABILITY CONTROL (DSC)]

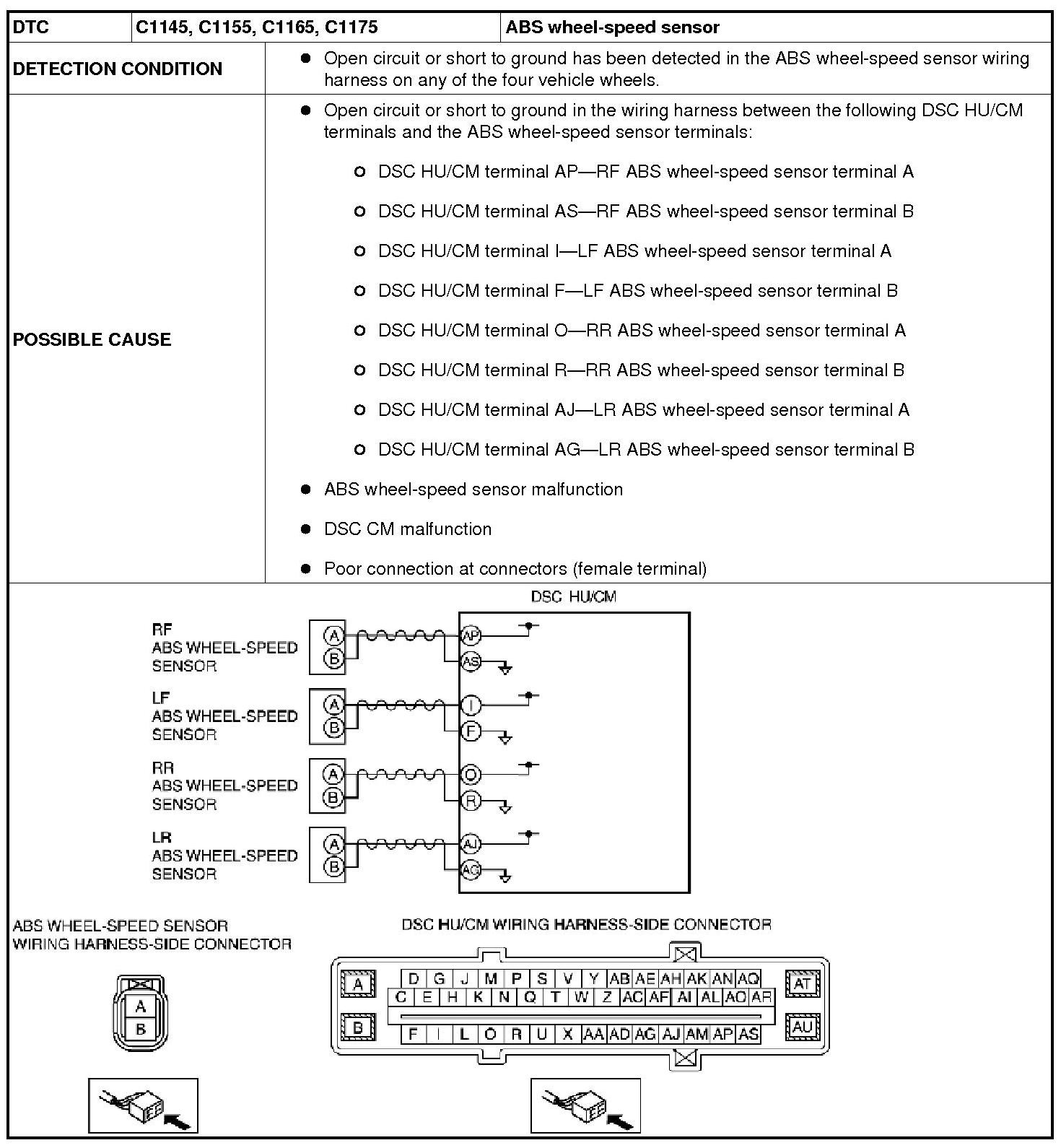

Detection Condition/Possible Cause:





Diagnostic procedure

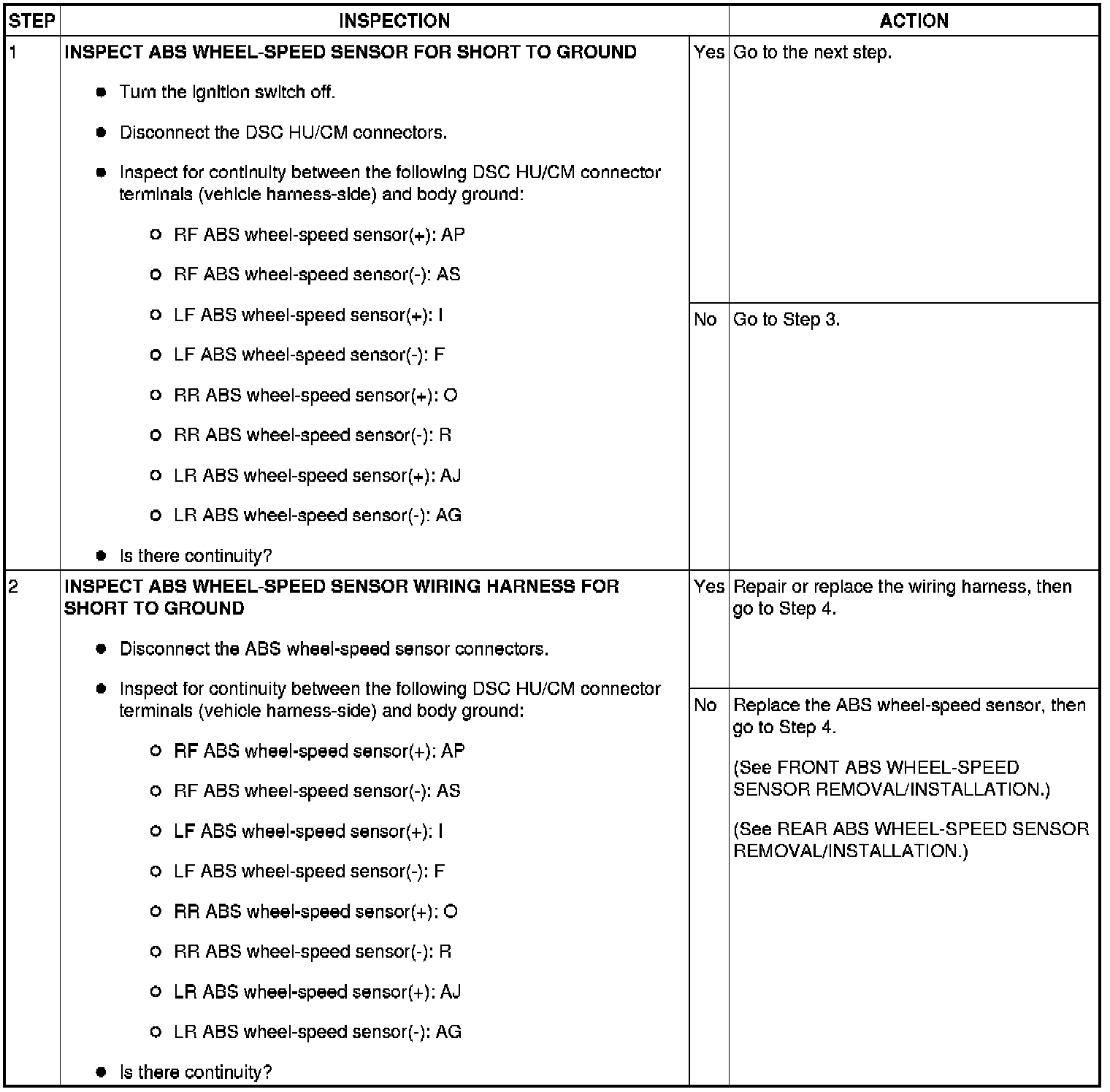

Step 1-Step 2:

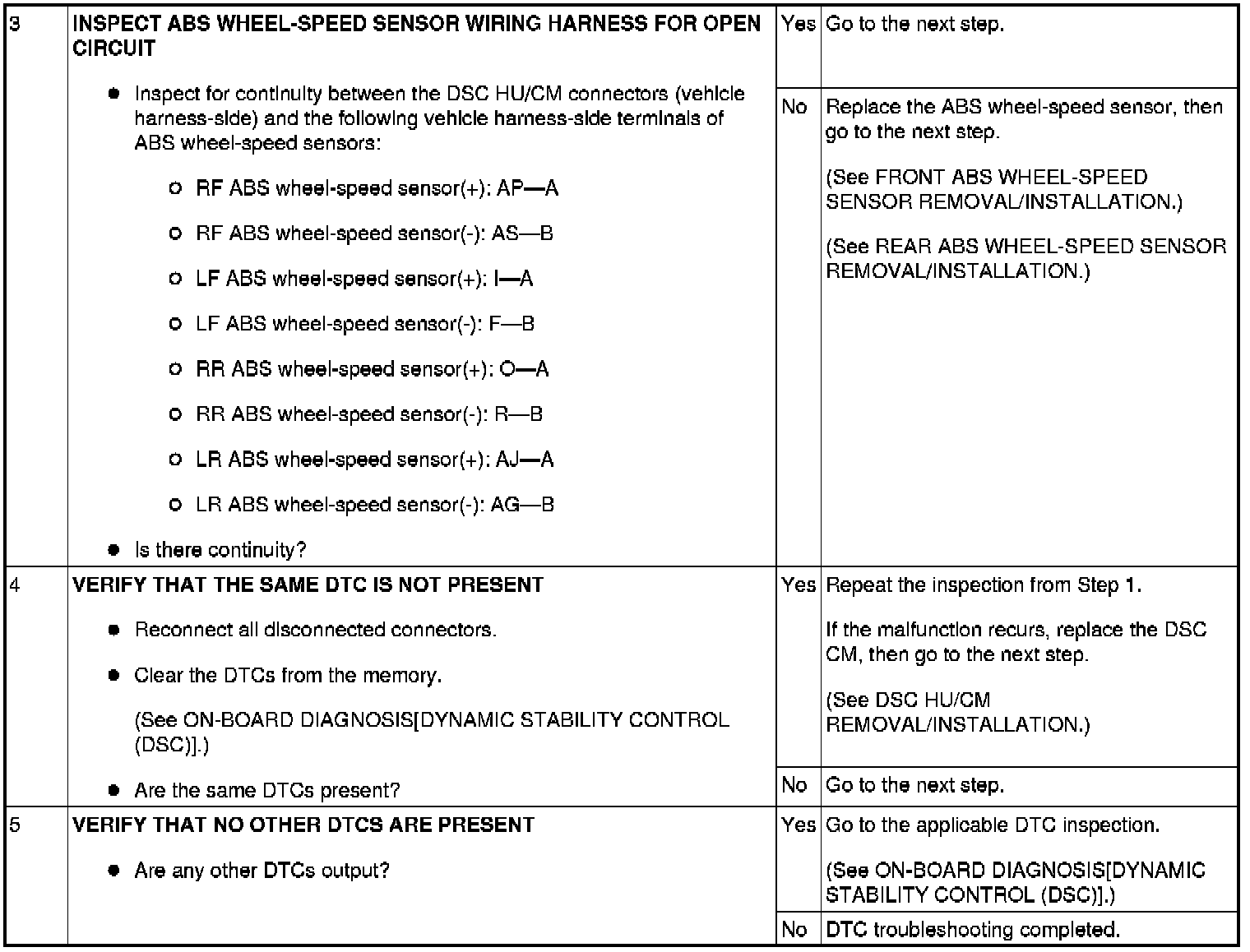

Step 3-Step 5:
