Home
>>
Mazda
>>
2009
>>
3 L4-2.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2060
B2060

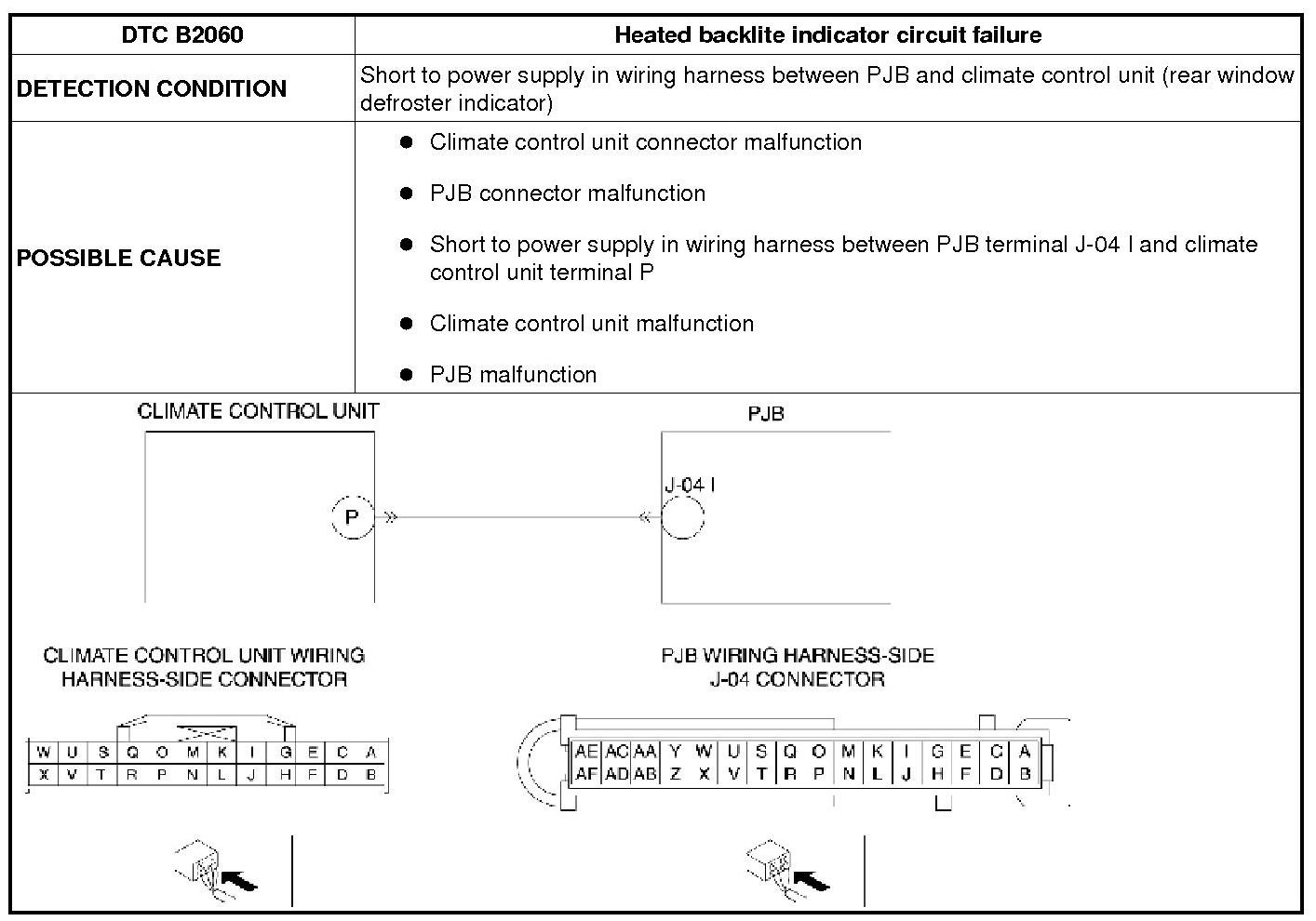

DTC B2060 [CONTROL SYSTEM]
Detection Condition/Possible Cause:

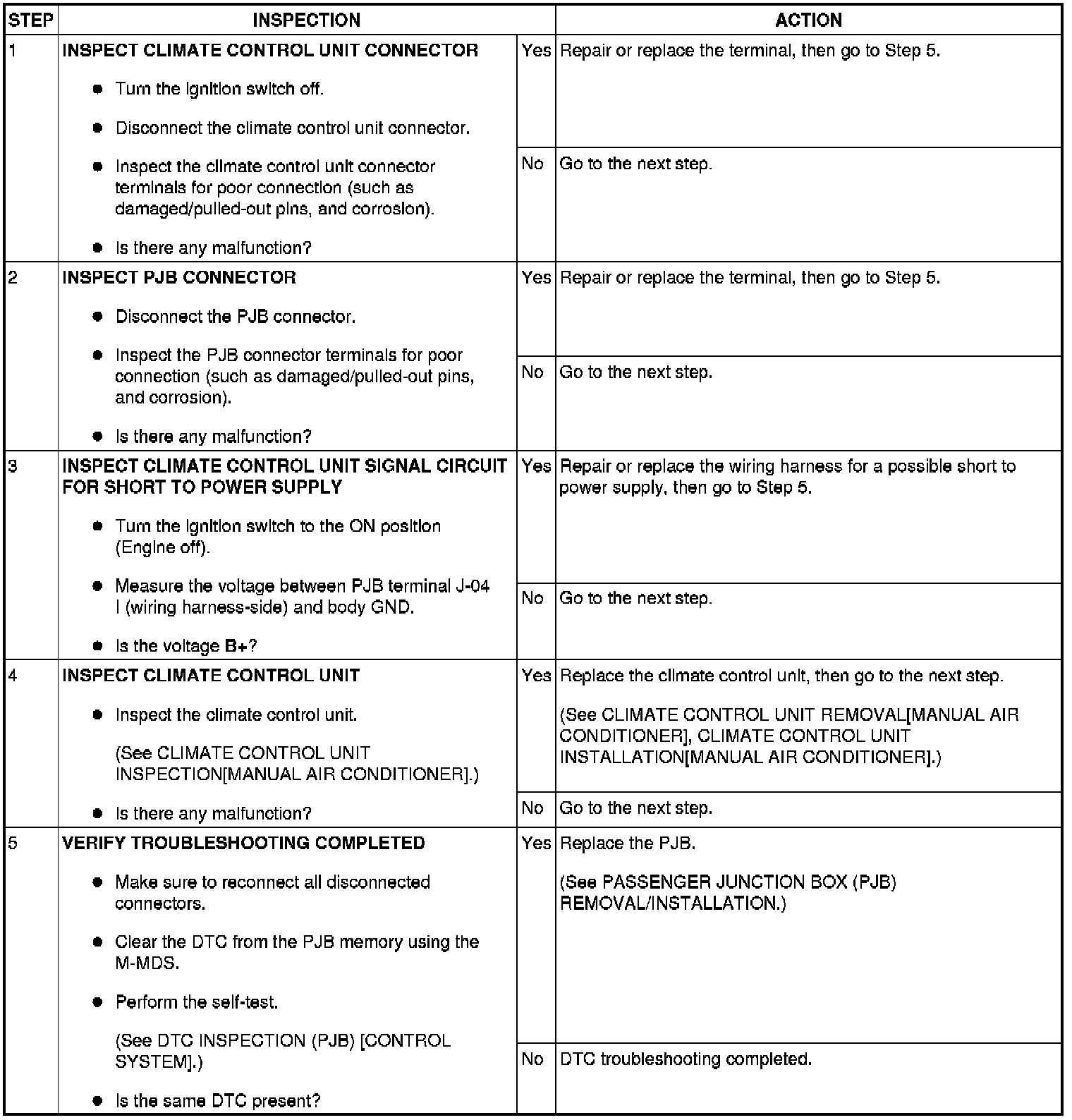

Diagnostic procedure
Step 1-Step 5:
