Home >> Mazda >> 2009 >> 3 L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1317 >> ABS

ABS

DTC B1317, B1318 [ABS]

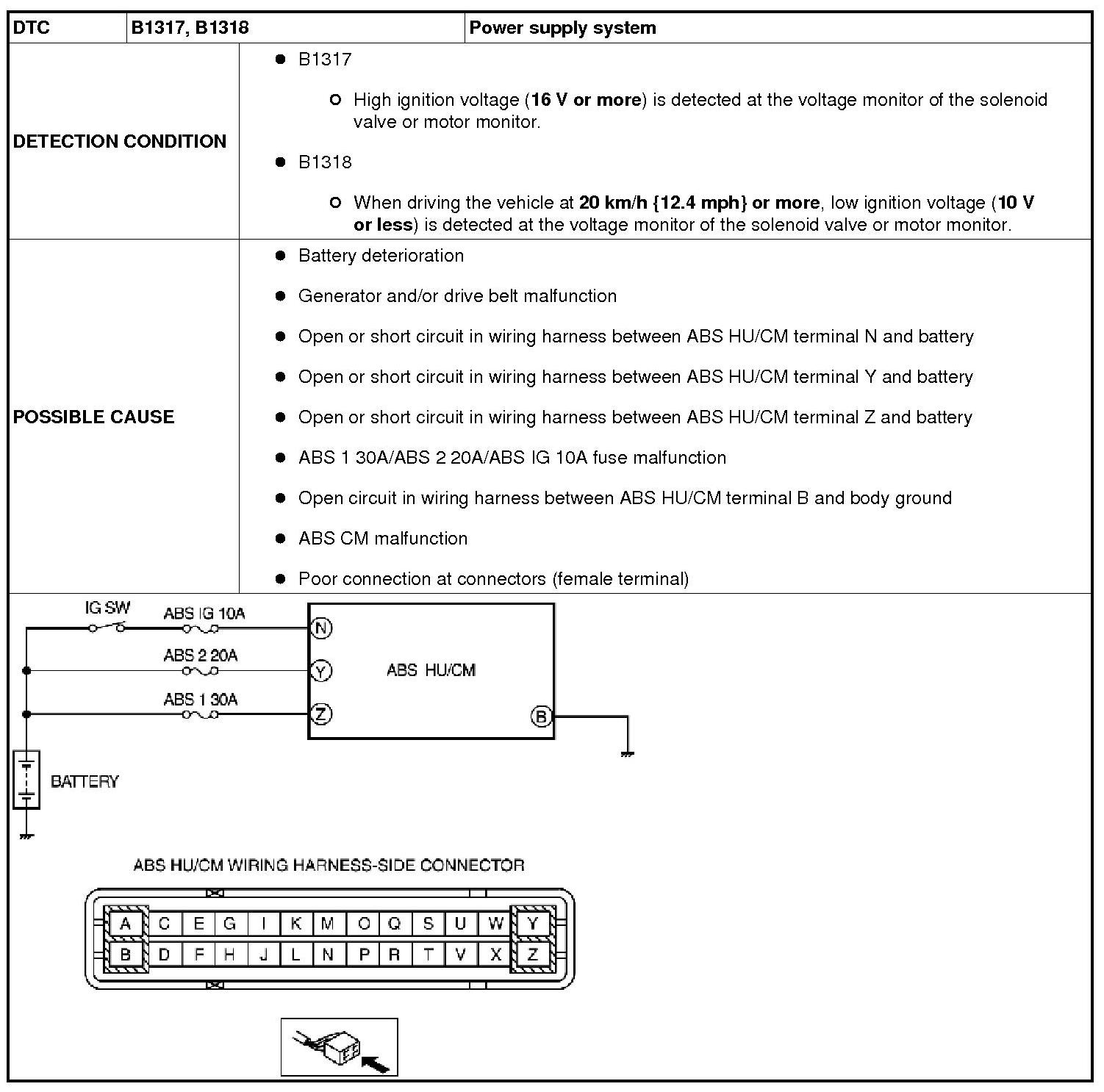

Detection Condition/Possible Cause:

Diagnostic procedure

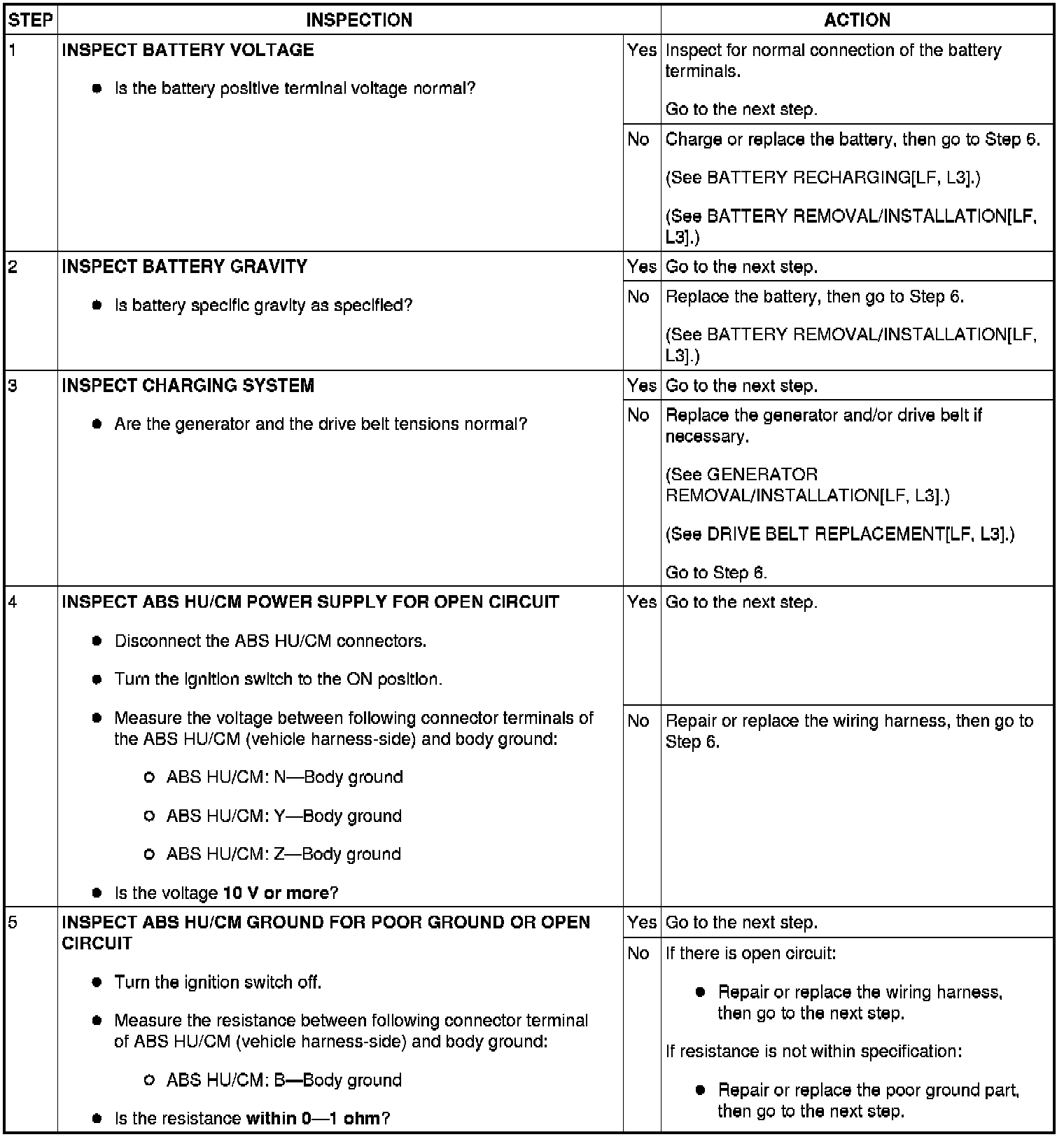

Step 1-Step 5:

Step 6-Step 7:
