Blower Motor Removal / Installation

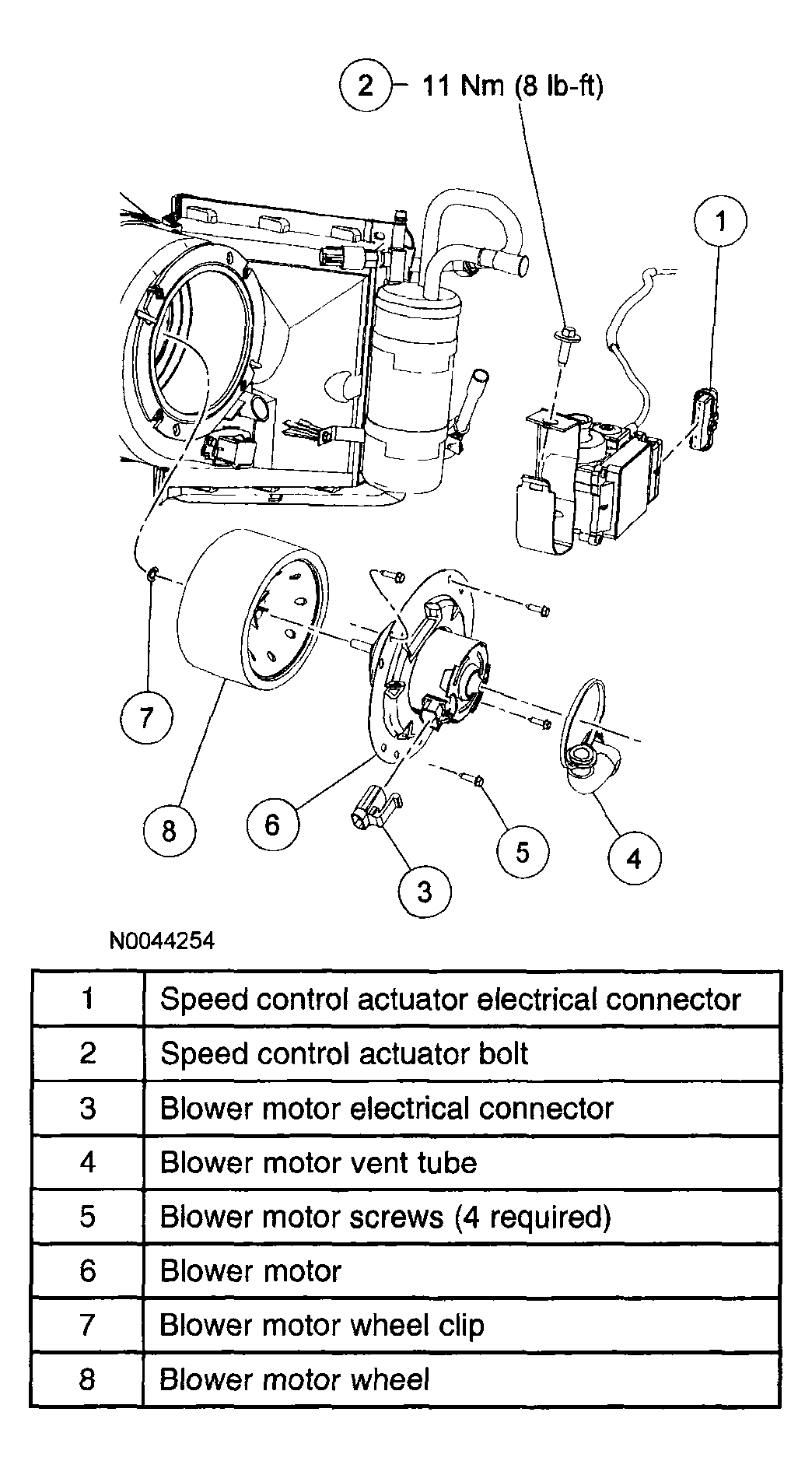

Fig 1: Exploded View Of Blower Motor With Torque Specifications
G04309923Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the speed control actuator electrical connector.
  2. Remove the speed control actuator bolt and position the speed control actuator aside.
    • To install, tighten to 11 Nm (8 ft-lbf).
  3. Disconnect the blower motor electrical connector.
  4. Remove the blower motor vent tube
  5. Remove the 4 blower motor screws and the blower motor.
  6. Remove the blower motor wheel clip.
  7. Remove the blower motor wheel.
  8. To install, reverse the removal procedure.
