Blend Door Actuator Removal / Installation

Remove the passenger air bag module. See PASSENGER AIR BAG MODULE .
Remove the defroster opening grill.

Fig 1: Defroster Opening Grill
Courtesy of MAZDA MOTORS CORP.
Detach and position the RH demister hose aside.

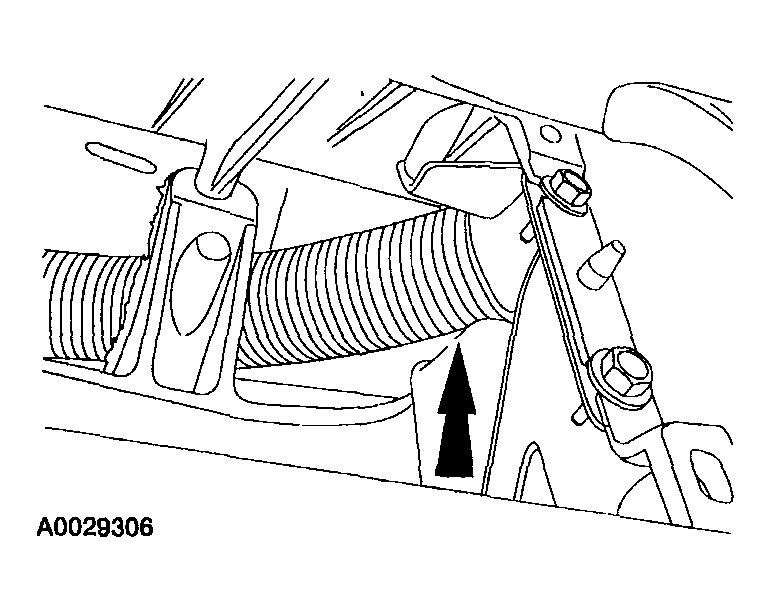

Fig 2: RH Demister Hose
Courtesy of MAZDA MOTORS CORP.
Working through the opening near the RH defroster nozzle, remove the screw.

Fig 3: Temperature Blend Door Actuator Screw
Courtesy of MAZDA MOTORS CORP.
Remove the temperature blend door actuator.
1. Disconnect the electrical connector.
2. Remove the screws and the temperature blend door actuator.
Fig 4: Locating Temperature Blend Door Actuator Connector And Mounting Screws
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
