A/C Manifold And Tube Assembly Removal / Installation - 2.3L

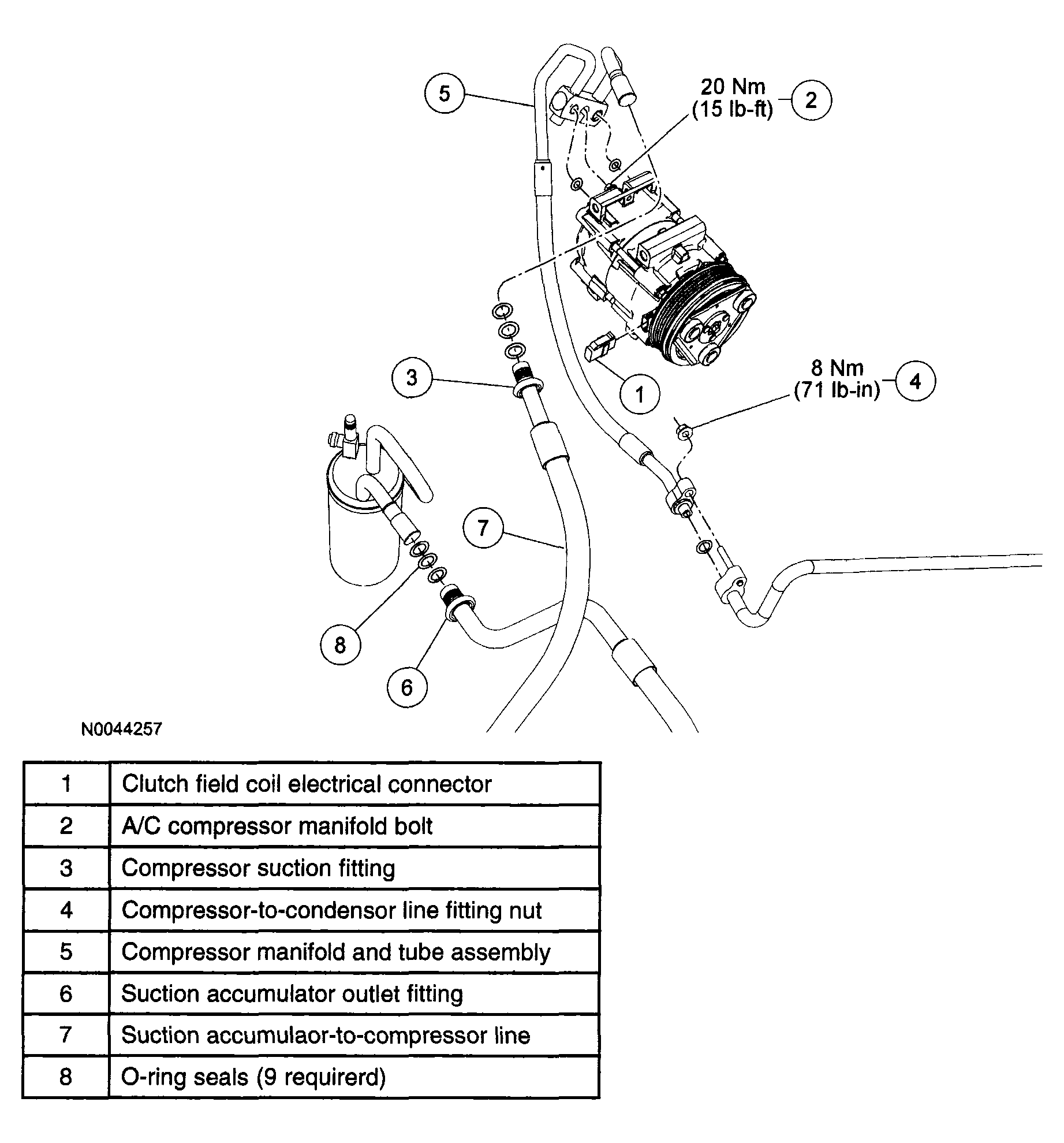

Fig 1: Removing/Installing A/C Manifold And Tube Assembly With Torque Specifications (2.3L)

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant. See A/C REFRIGERANT SYSTEM TESTS .
2. Disconnect the electrical connector.

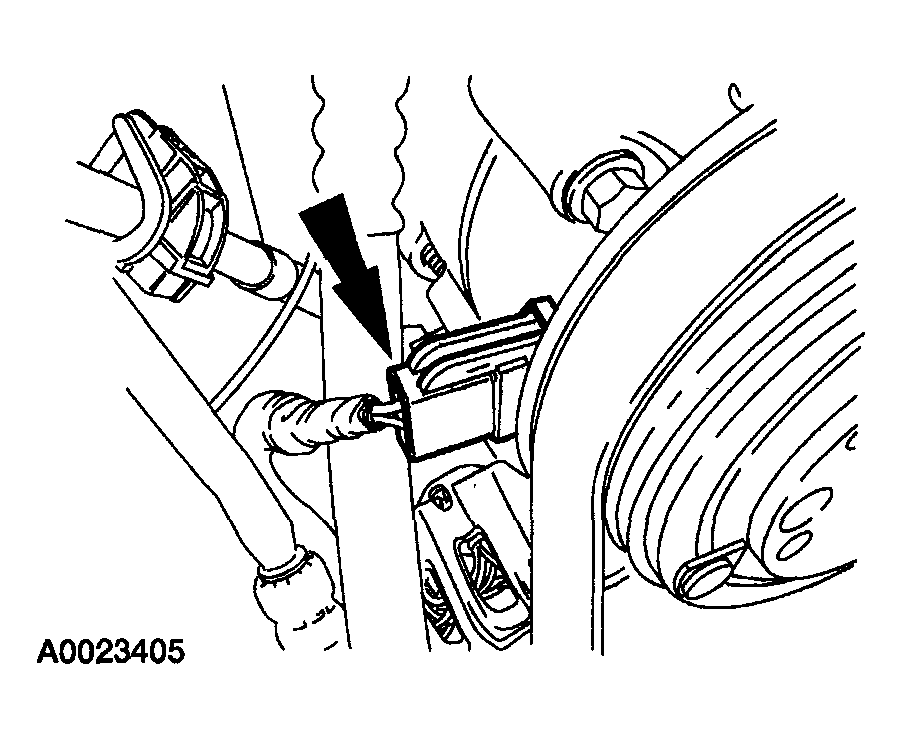

   Fig 2: Disconnecting Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the compressor manifold and tube assembly from the A/C compressor.

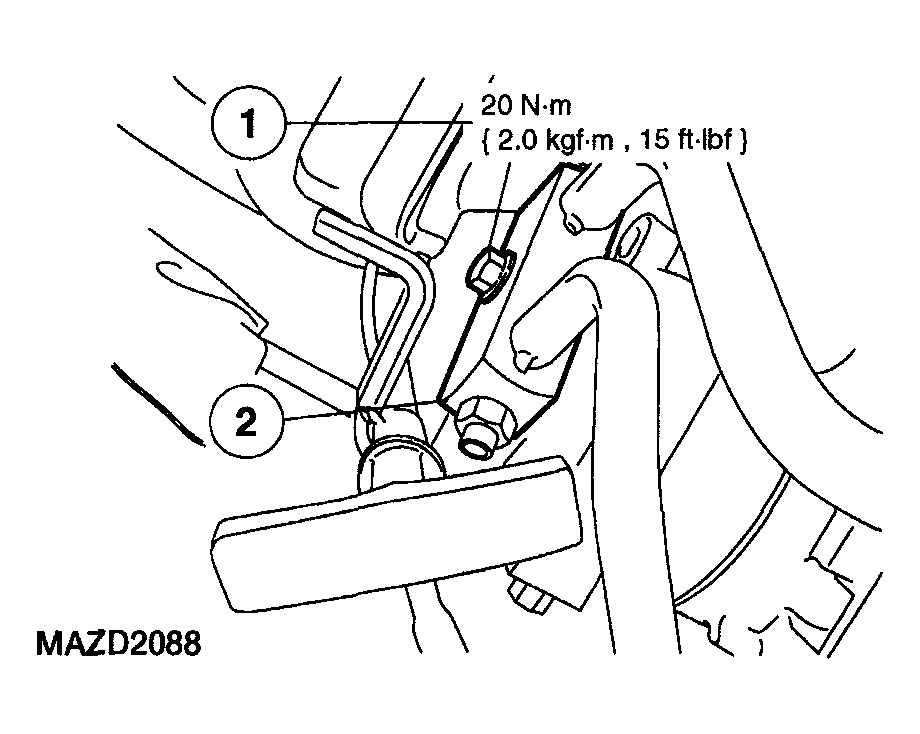

   Fig 3: Removing/Installing Compressor Manifold And Tube Assembly With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   1. Loosen the bolt.
   2. Disconnect and position aside the compressor manifold and tube assembly.
   3. Discard the O-ring seals.
4. Disconnect the manifold and tube from the receiver/drier. See A/C SPRING LOCK COUPLING  .

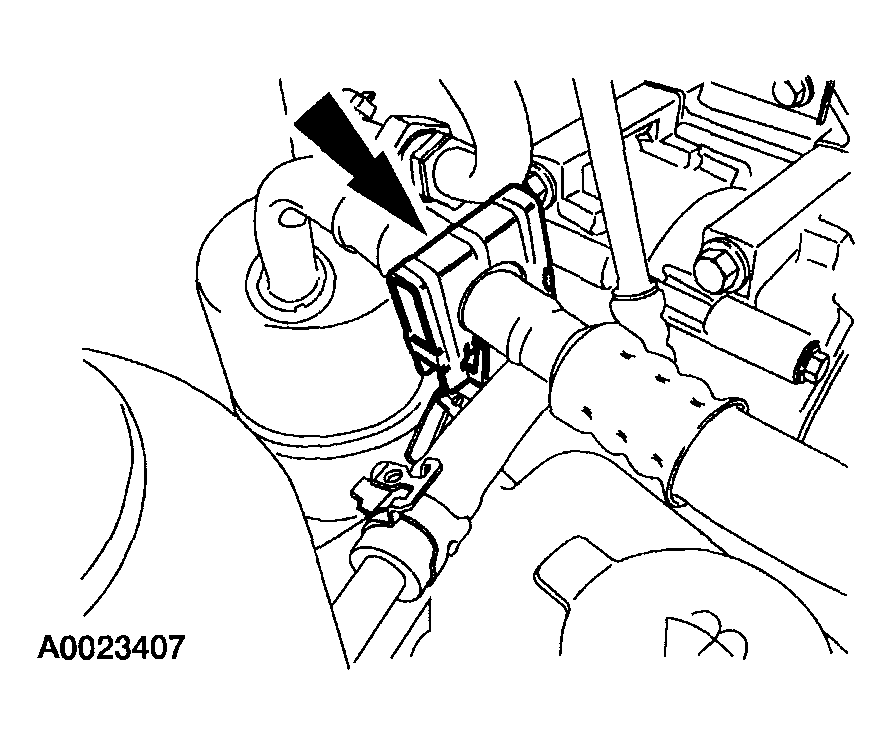

   Fig 4: Identifying A/C Spring Lock Coupling

   Courtesy of MAZDA MOTORS CORP.
   • Discard the O-ring seals.

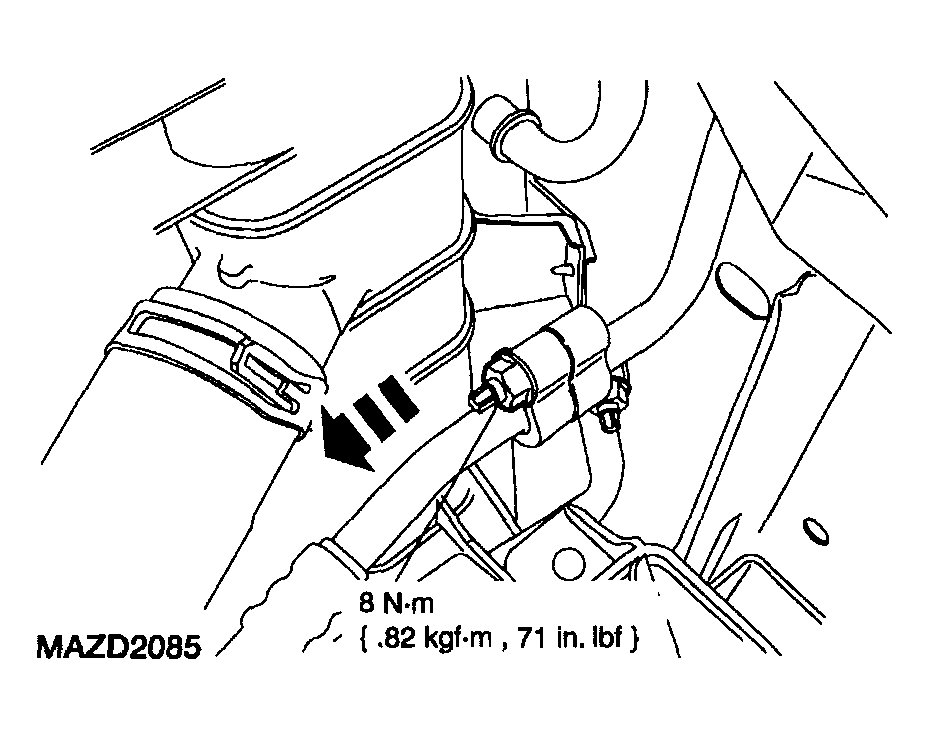

5. Disconnect the compressor manifold and tube assembly from the compressor to condenser discharge line and remove the compressor manifold and tube assembly.
   Fig 5: Removing/Installing Compressor Manifold And Tube Assembly With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   • Discard the O-ring seal.
6. To install, reverse the removal procedure.
   • If a new compressor manifold and tube assembly is to be installed, transfer the pressure cutoff switch to the new compressor manifold and tube assembly.
   • Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See A/C REFRIGERANT OIL ADDITION .
7. Evacuate, leak test, and charge the refrigerant system. See A/C REFRIGERANT SYSTEM TESTS .
