A/C Compressor Magnetic Clutch Adjustment

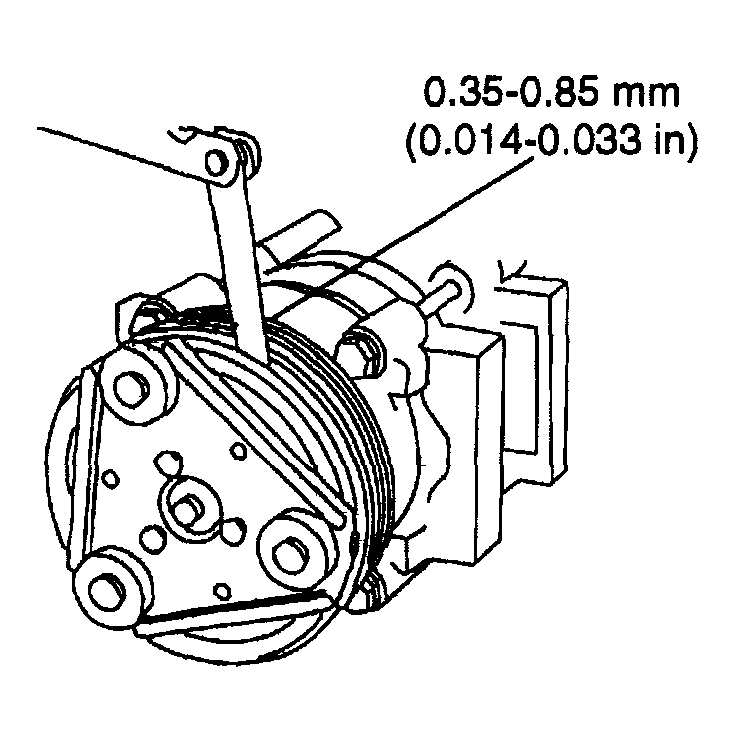

Fig 1: Measuring A/C Clutch Air Gap Between Clutch Hub And A/C Clutch Pulley
G04309868Courtesy of MAZDA MOTORS CORP.
  1. Check the A/C clutch air gap at three equally spaced places between the clutch hub and the A/C clutch pulley.
  2. Remove the magnetic clutch. See A/C COMPRESSOR MAGNETIC CLUTCH REMOVAL / INSTALLATION  .
  3. Add or remove spacers between the A/C clutch and the A/C clutch and the compressor shaft until clearance is within specification (0.35 - 0.85 mm, 0.014 -0.033 in.).
