Connector End Views - Instrument Cluster

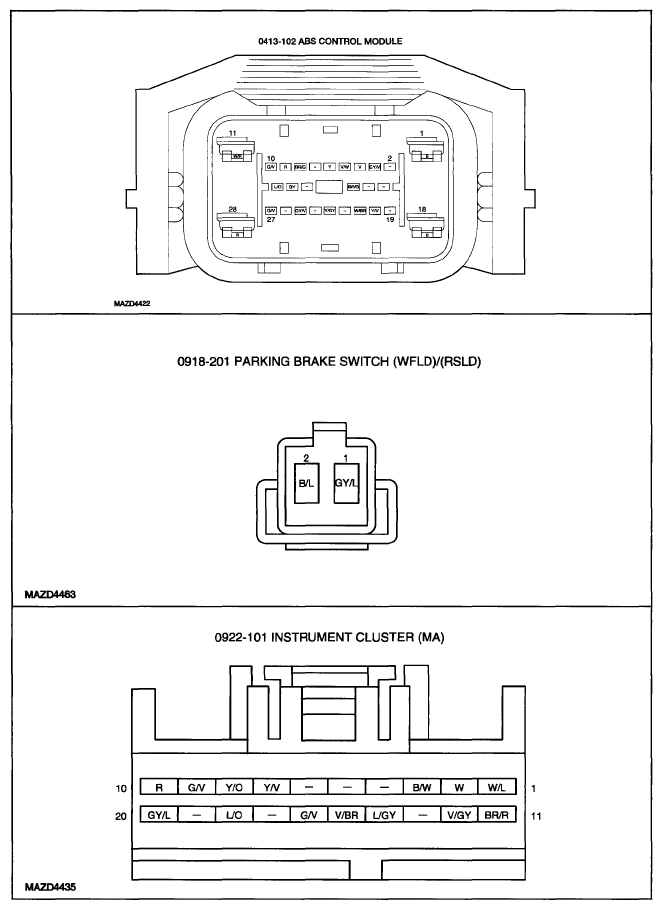

Fig 1: Identifying Instrument Cluster Connector End Views (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

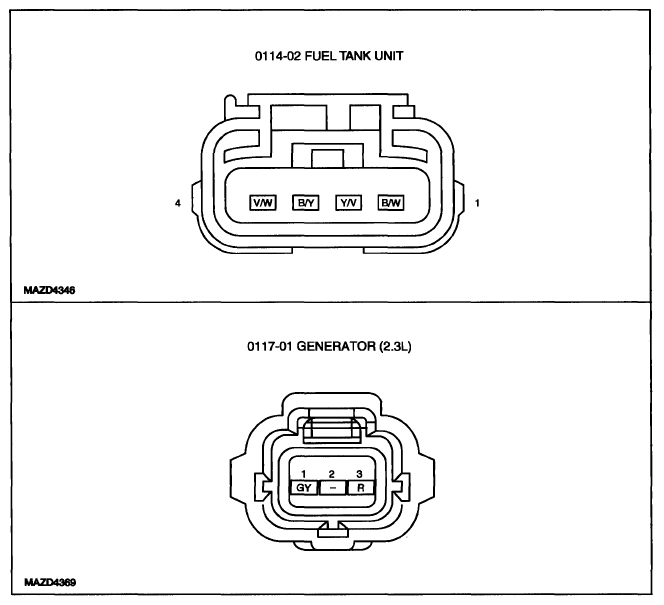

Fig 2: Identifying Instrument Cluster Connector End Views (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

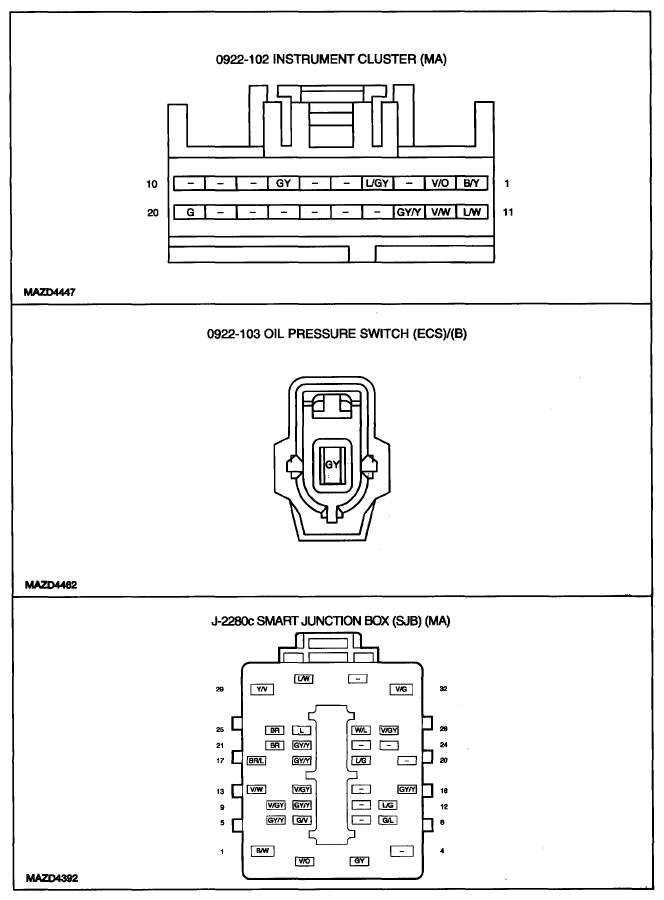

Fig 3: Identifying Instrument Cluster Connector End Views (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
