Transfer Case: Diagrams

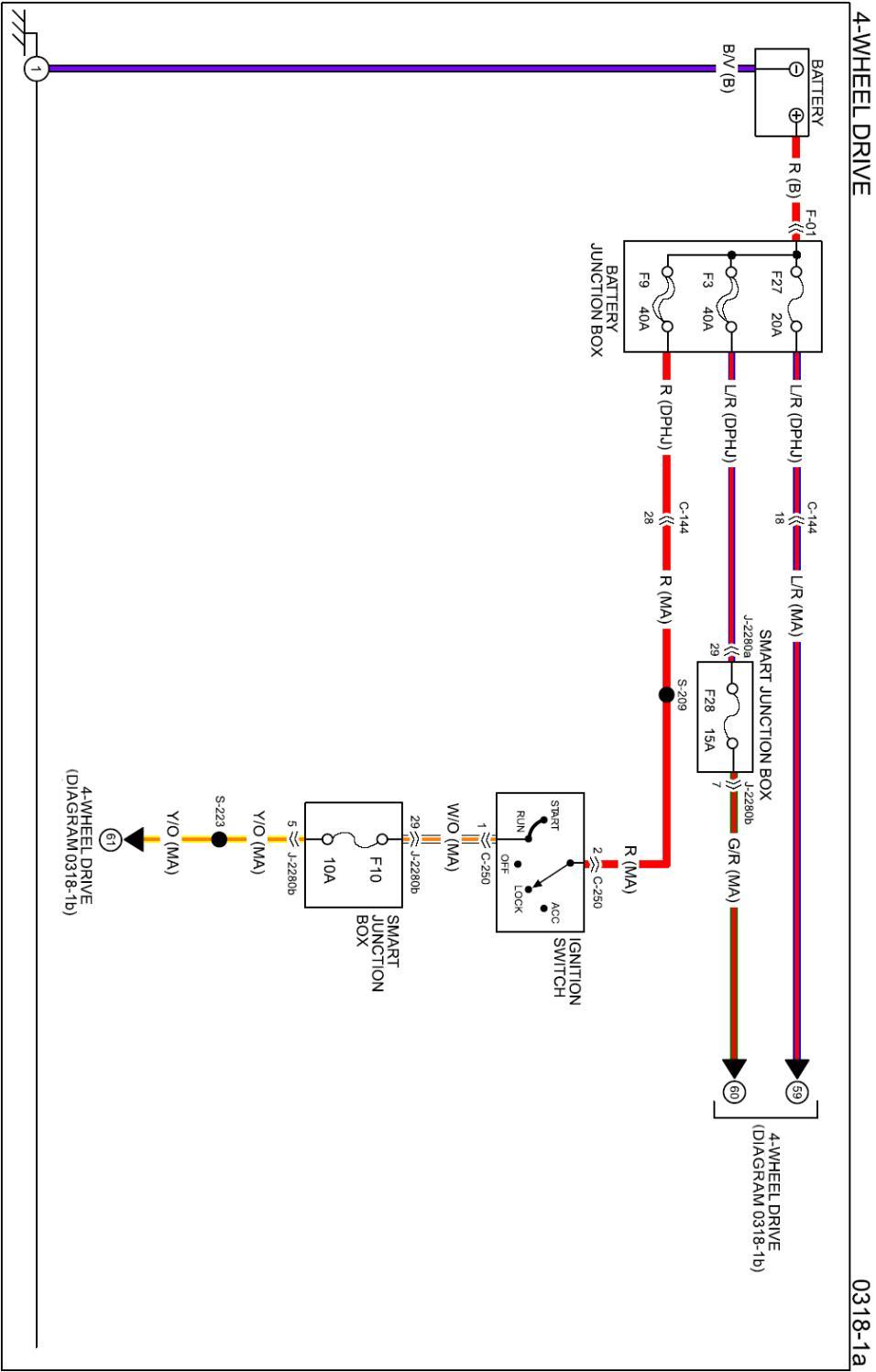

Diagram 0318-1a:

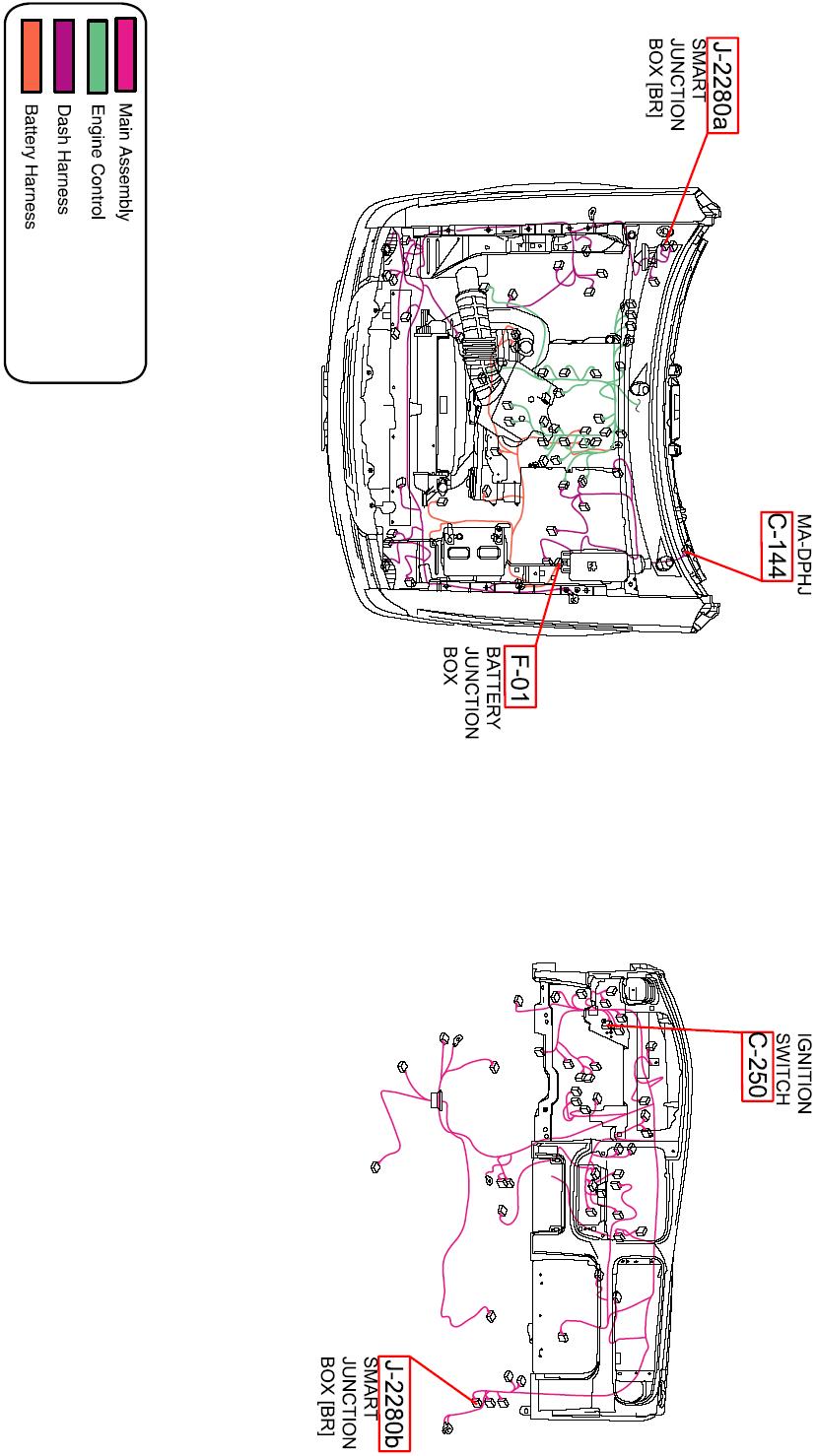

Routing View 0318-1a:

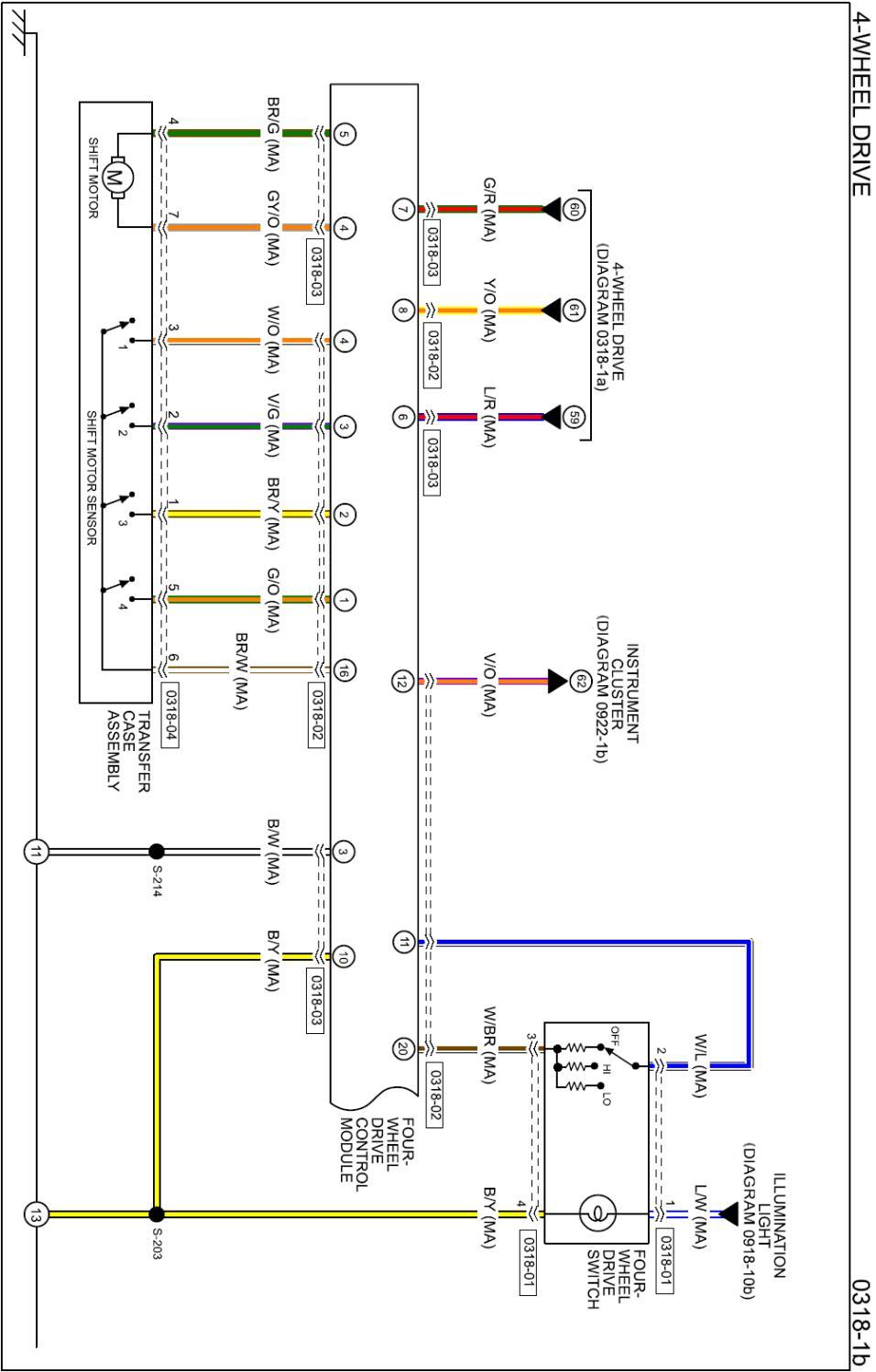

Diagram 0318-1b:

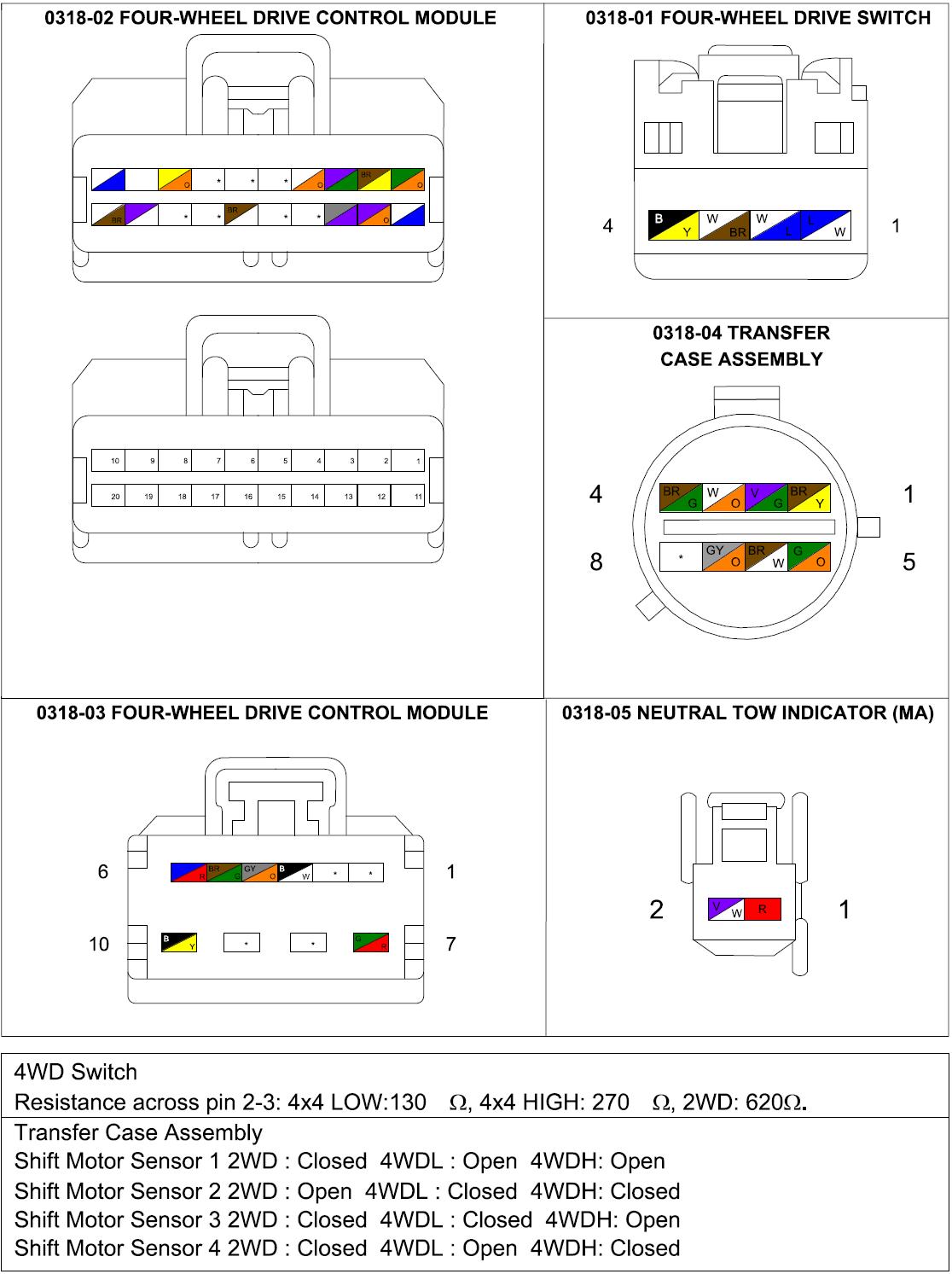

Connectors 0318-1b:

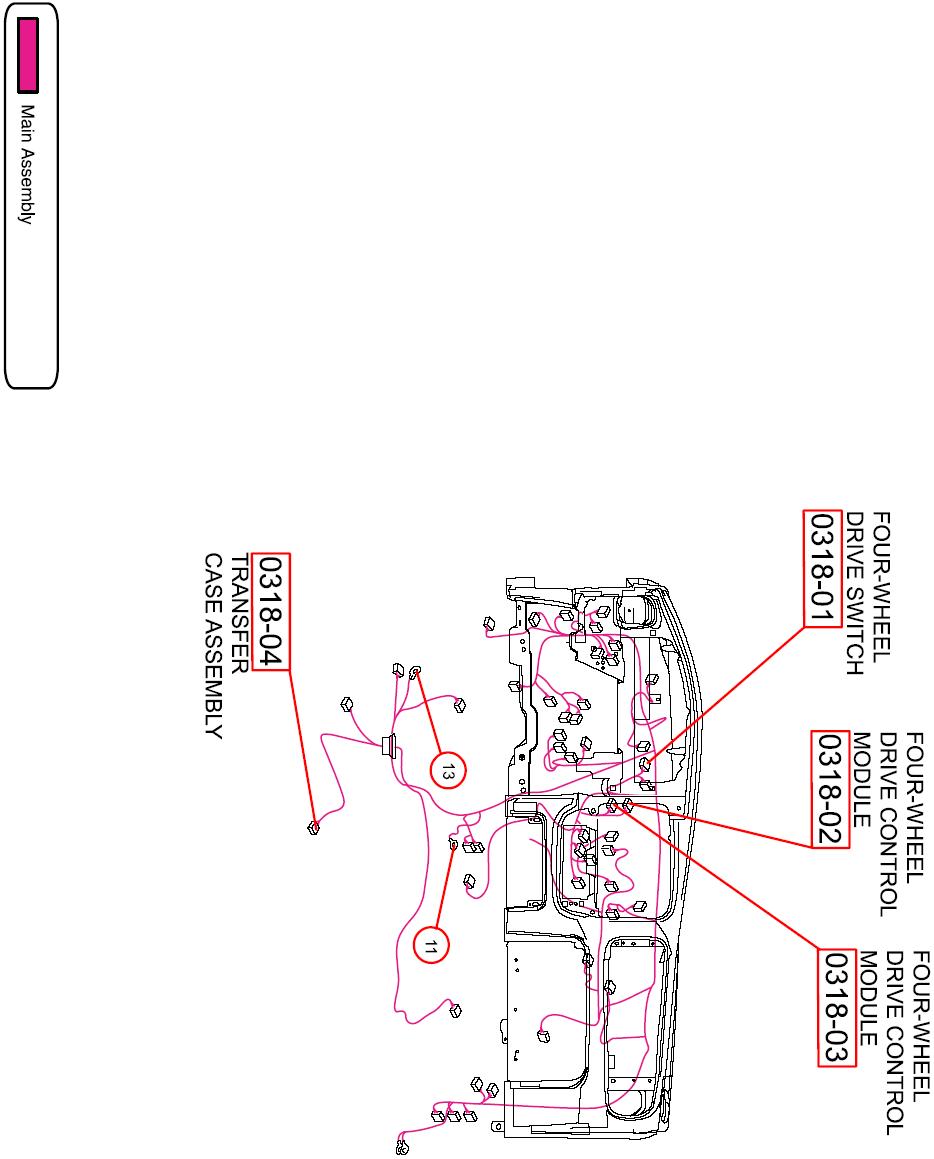

Routing View 0318-1b:

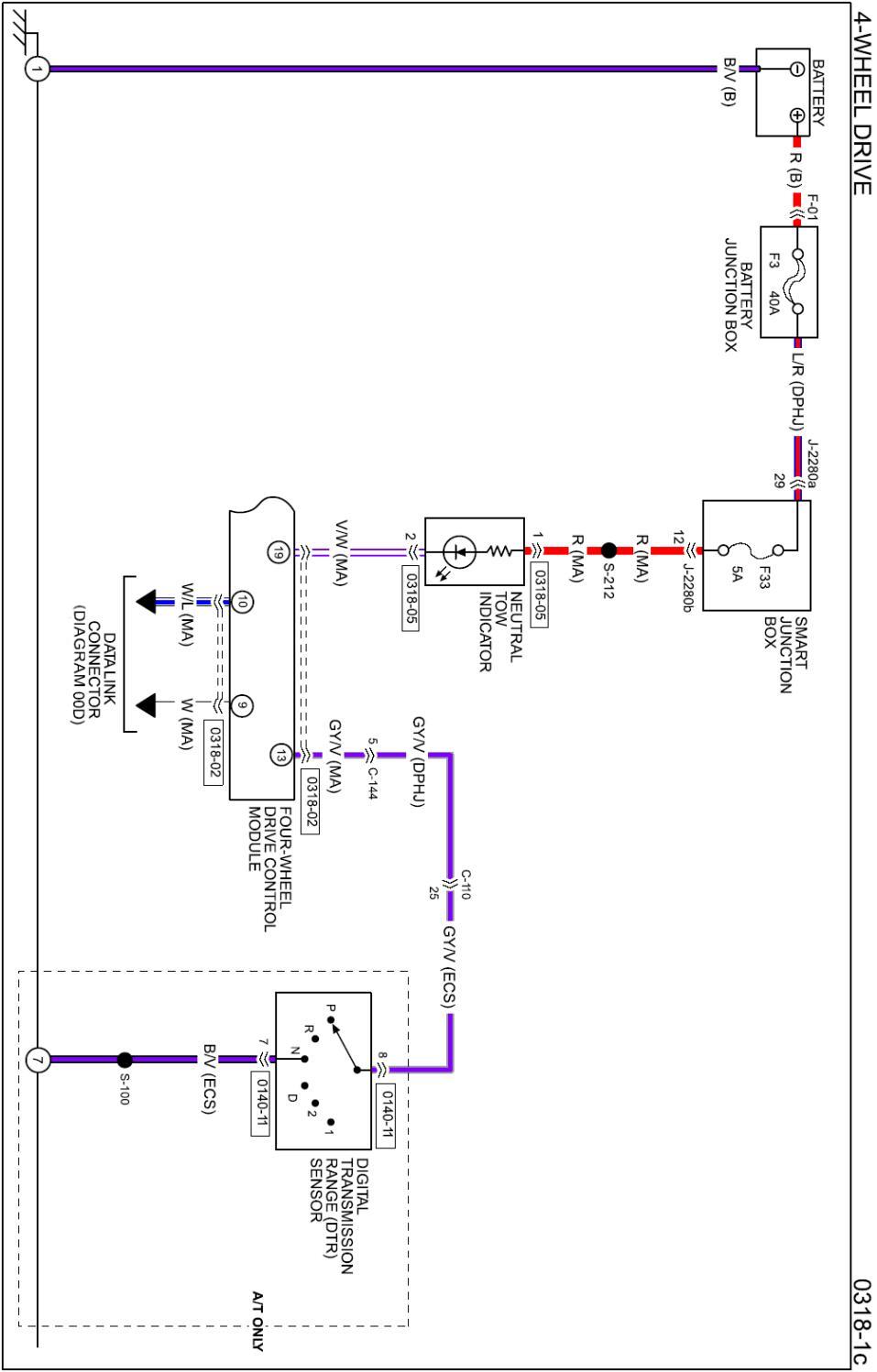

Diagram 0318-1c:

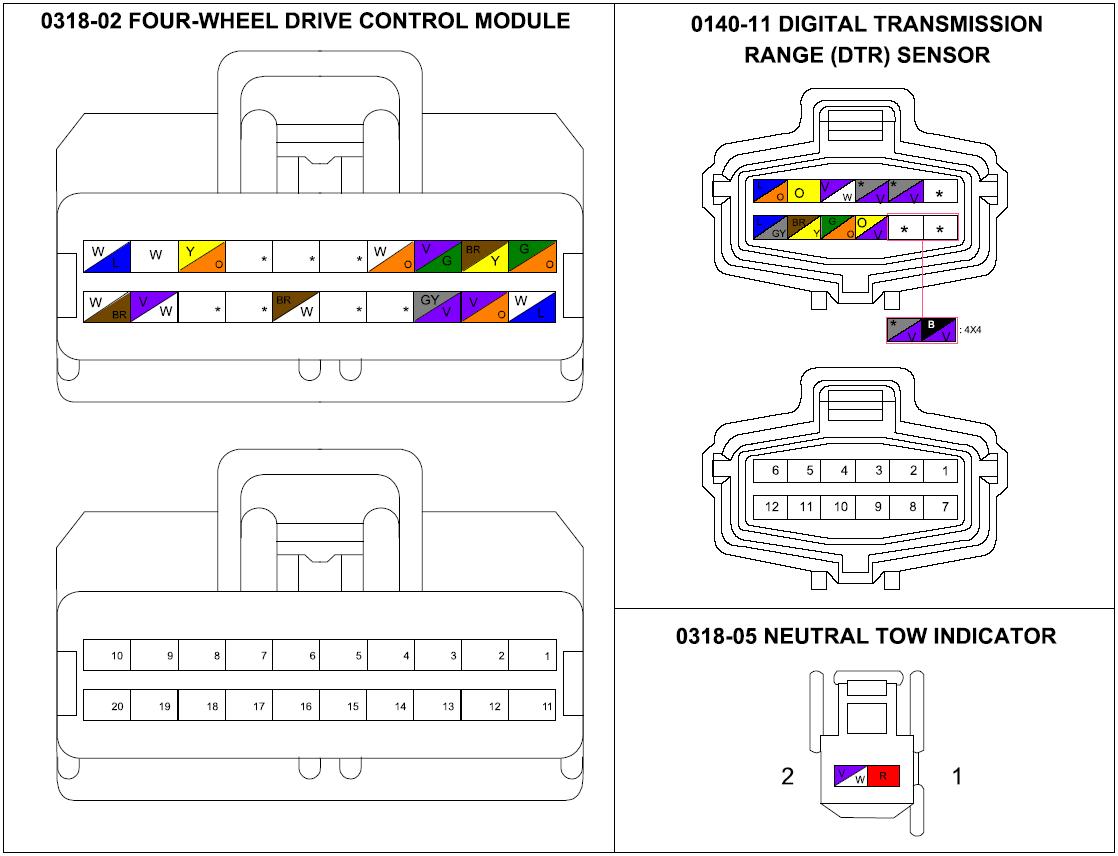

Connectors 0318-1c:

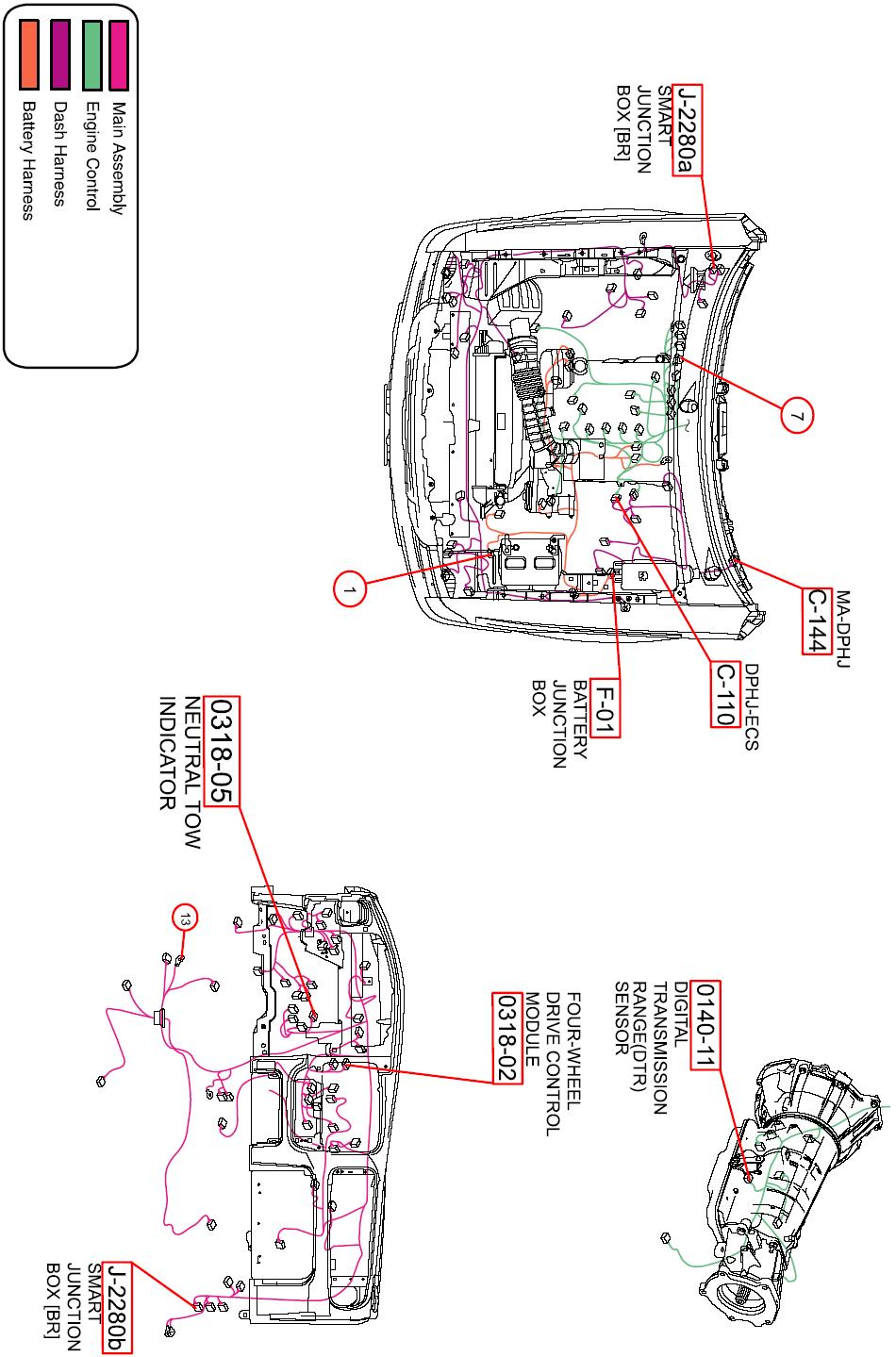

Routing View 0318-1c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
