Abnormal Tire Wear

Abnormal Tire Wear

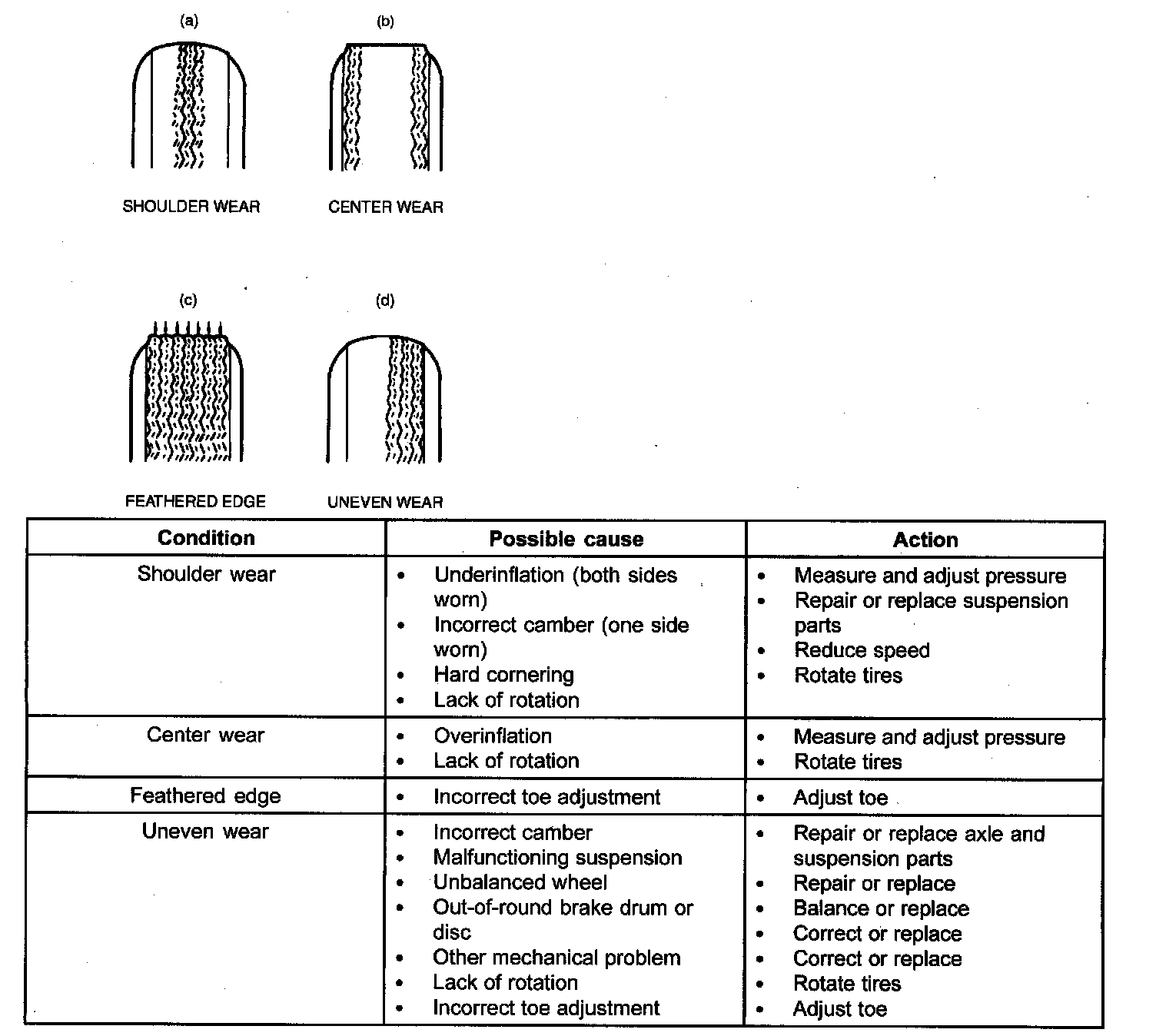

Abnormal tire wear patterns shown in the illustration can occur. See the chart for the possible causes and actions.
