Ball Joint - Lower 4WD

BALL JOINT - LOWER 4WD





Removal
1. Remove the wheel knuckle.

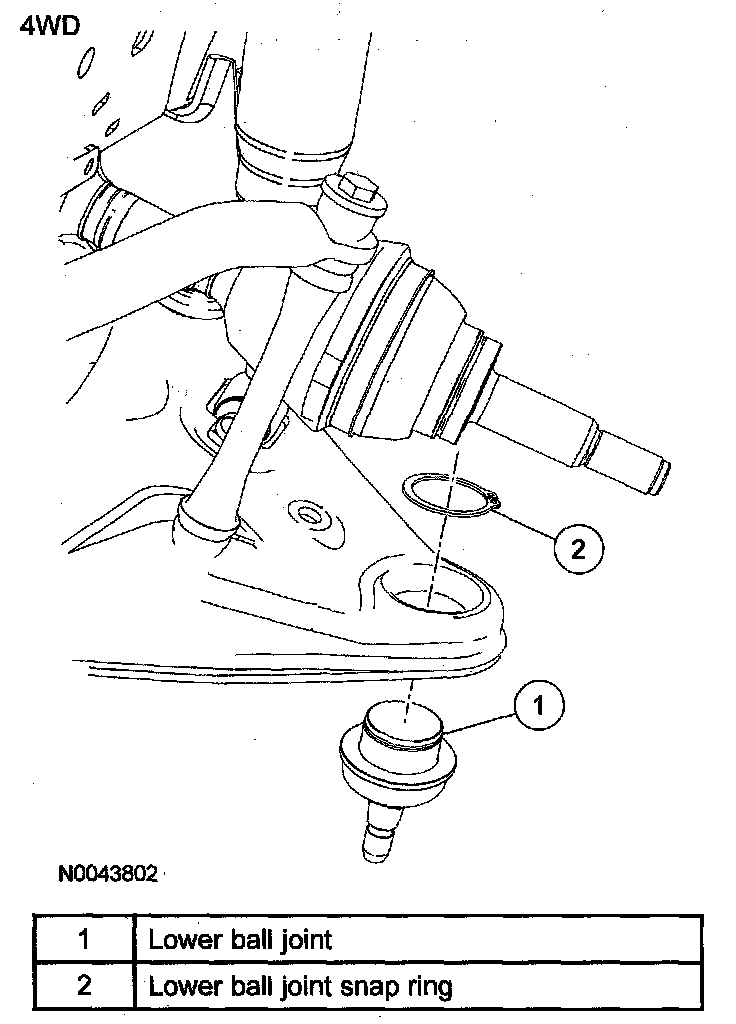

2. Remove and discard the lower ball joint snap ring.Using SST 205-086 and SST 204-182 remove the ball joint.





Installation





Caution:
^ Do not damage the lower ball joint boot when installing the tool.

Note:
^ Clean and inspect the lower arm lower ball joint bore for damage before installing a new ball joint.

Note:
^ Make sure the new lower ball joint snap ring is fully seated.

Note:
^ Always install new nuts and cotter pins.

1. Using a suitable ball joint installation tool, install the lower ball joint.
2. Install the wheel knuckle.
