License Plate Lamp: Diagrams
Diagram 0918-3:

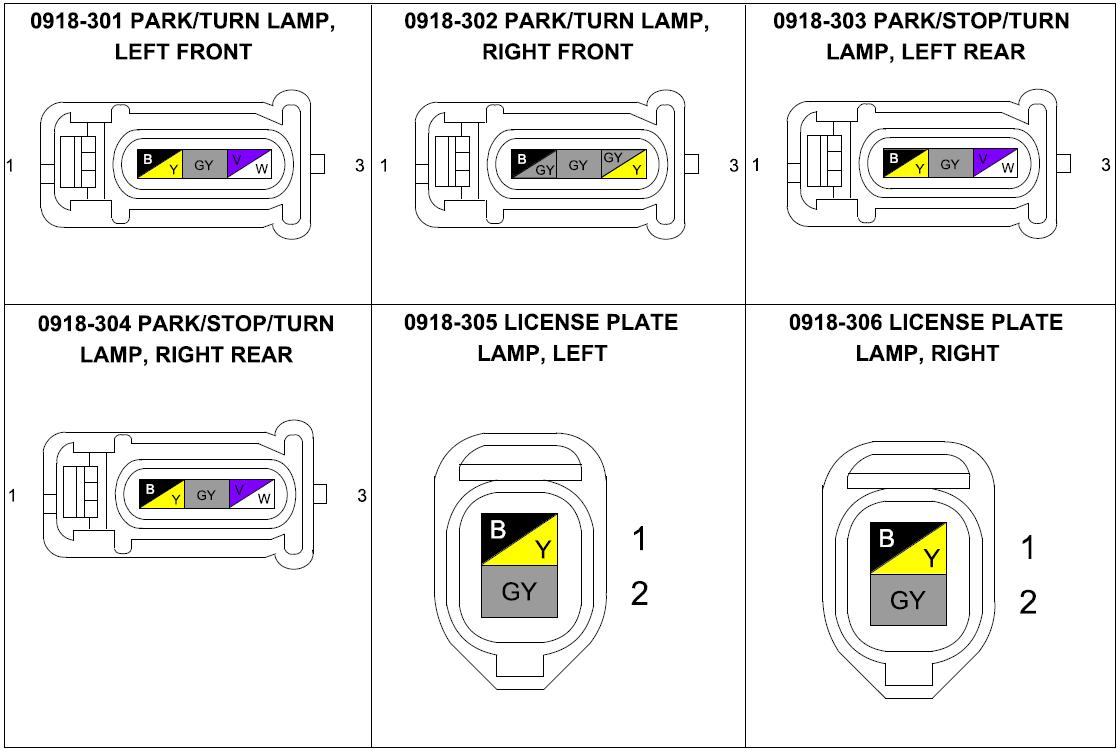

Connectors 0918-3:

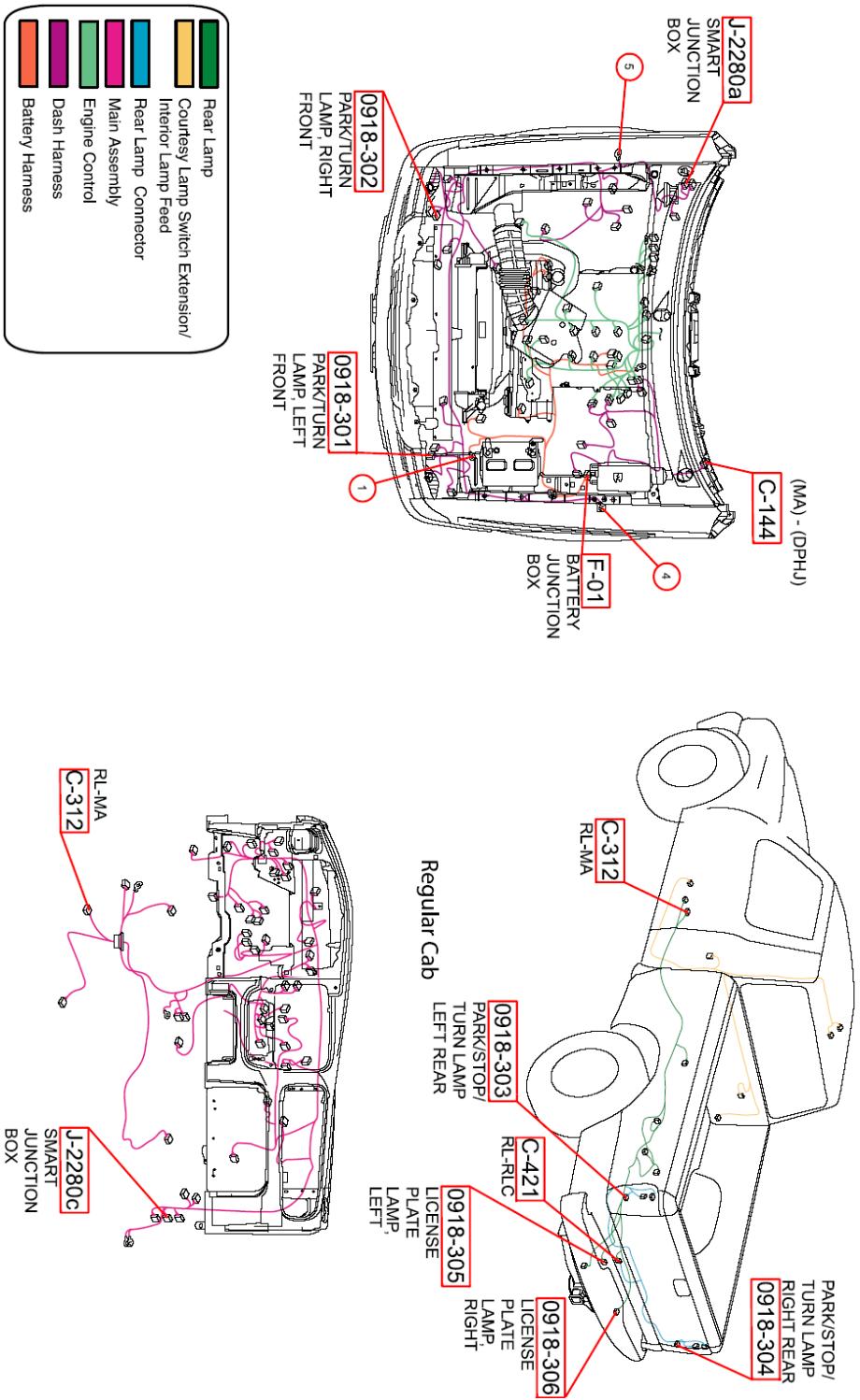

Routing View 0918-3:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
