Horn: Diagrams
Diagram 0922-2:

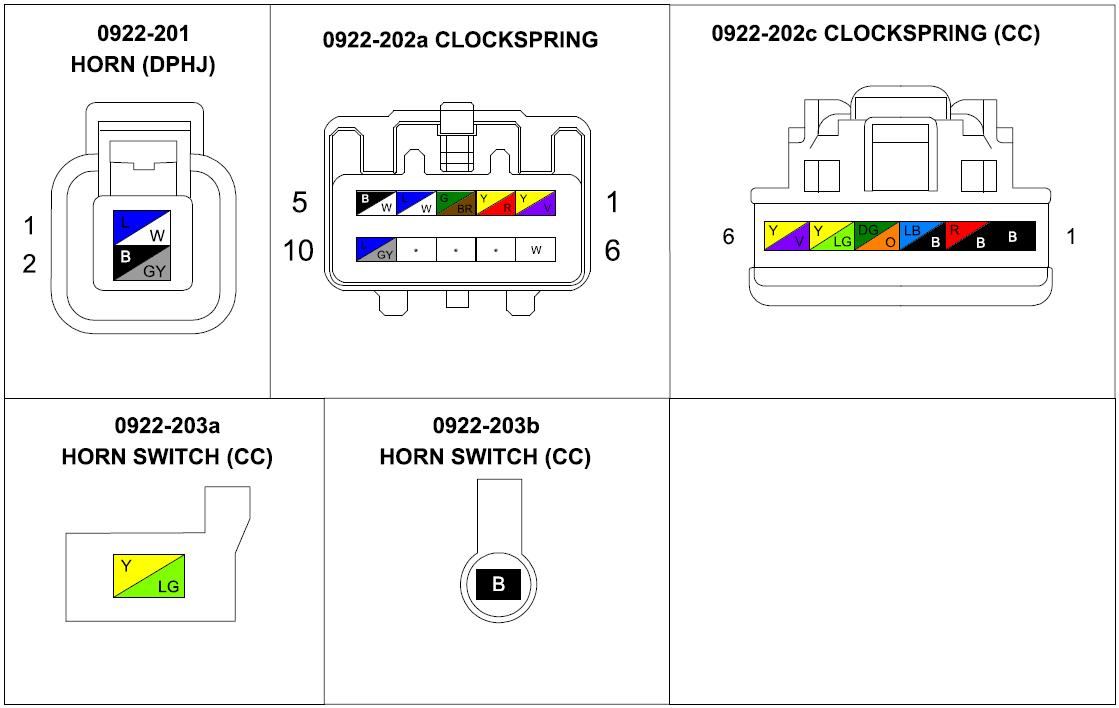

Connectors 0922-2:
Routing View 0922-2:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
