Instrument Cluster and Panel Illumination
Instrument Cluster and Panel Illumination

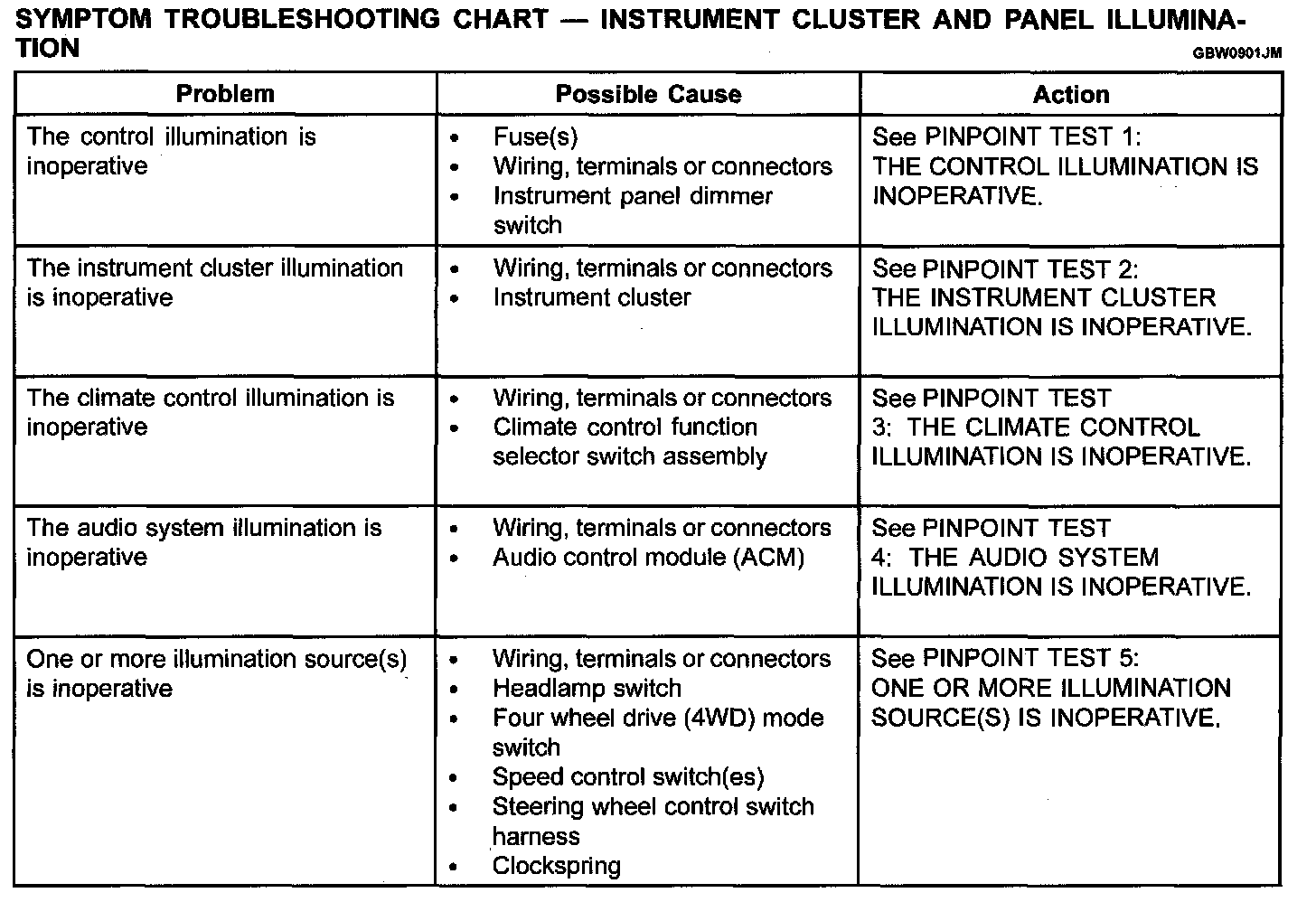

Symptom Troubleshooting Chart-Instrument Cluster And Panel Illumination:
