Instrument Panel Illumination

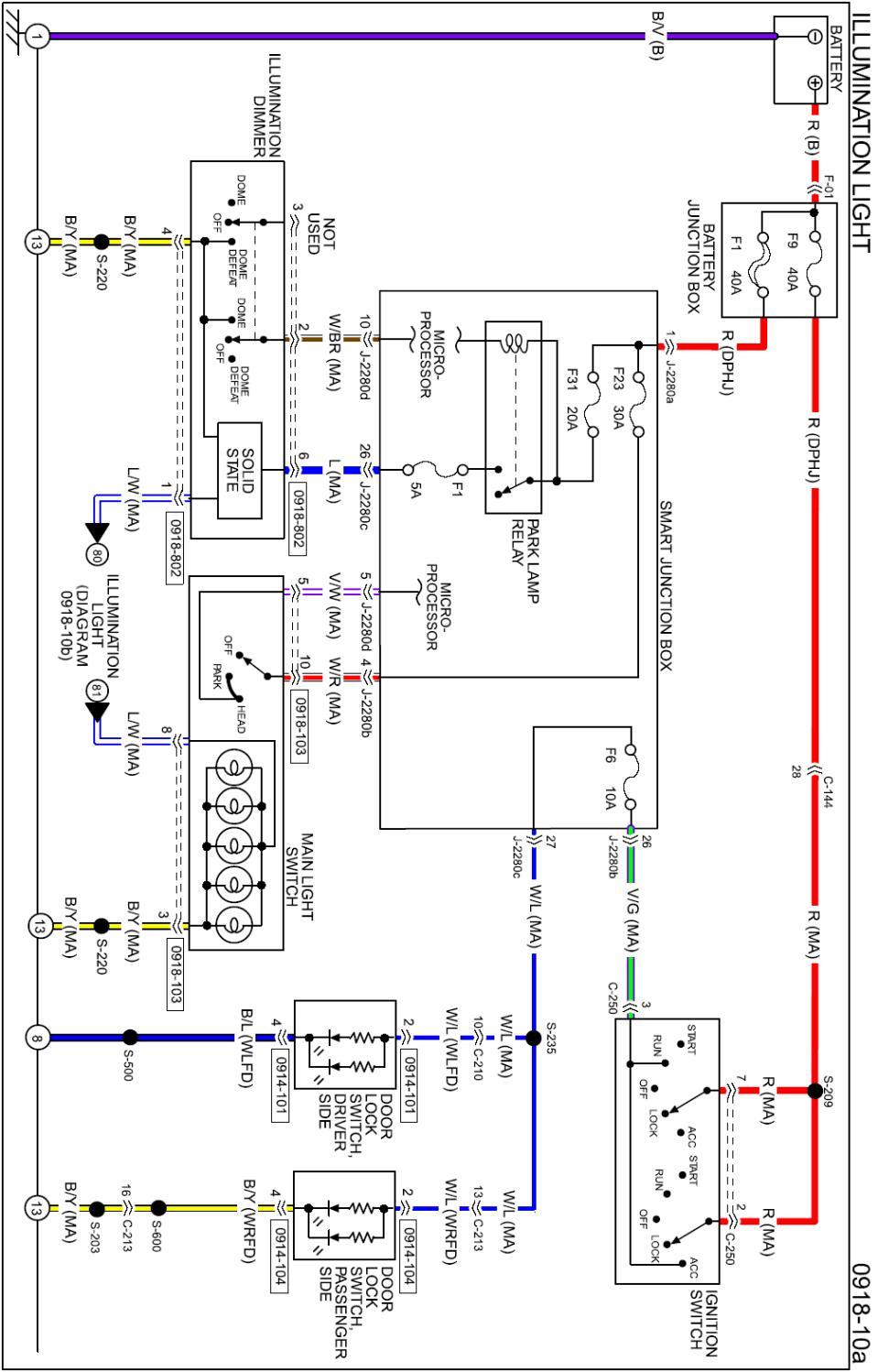

Diagram 0918-10a:

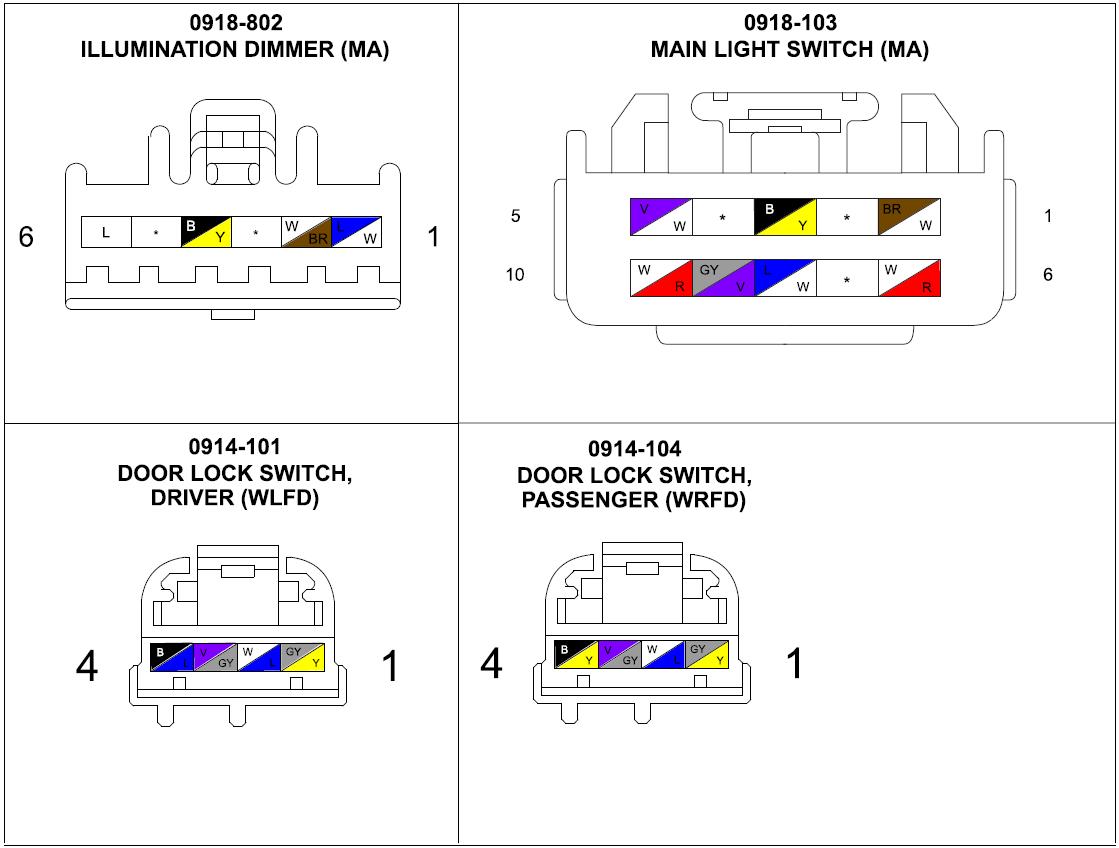

Connectors 0918-10a:

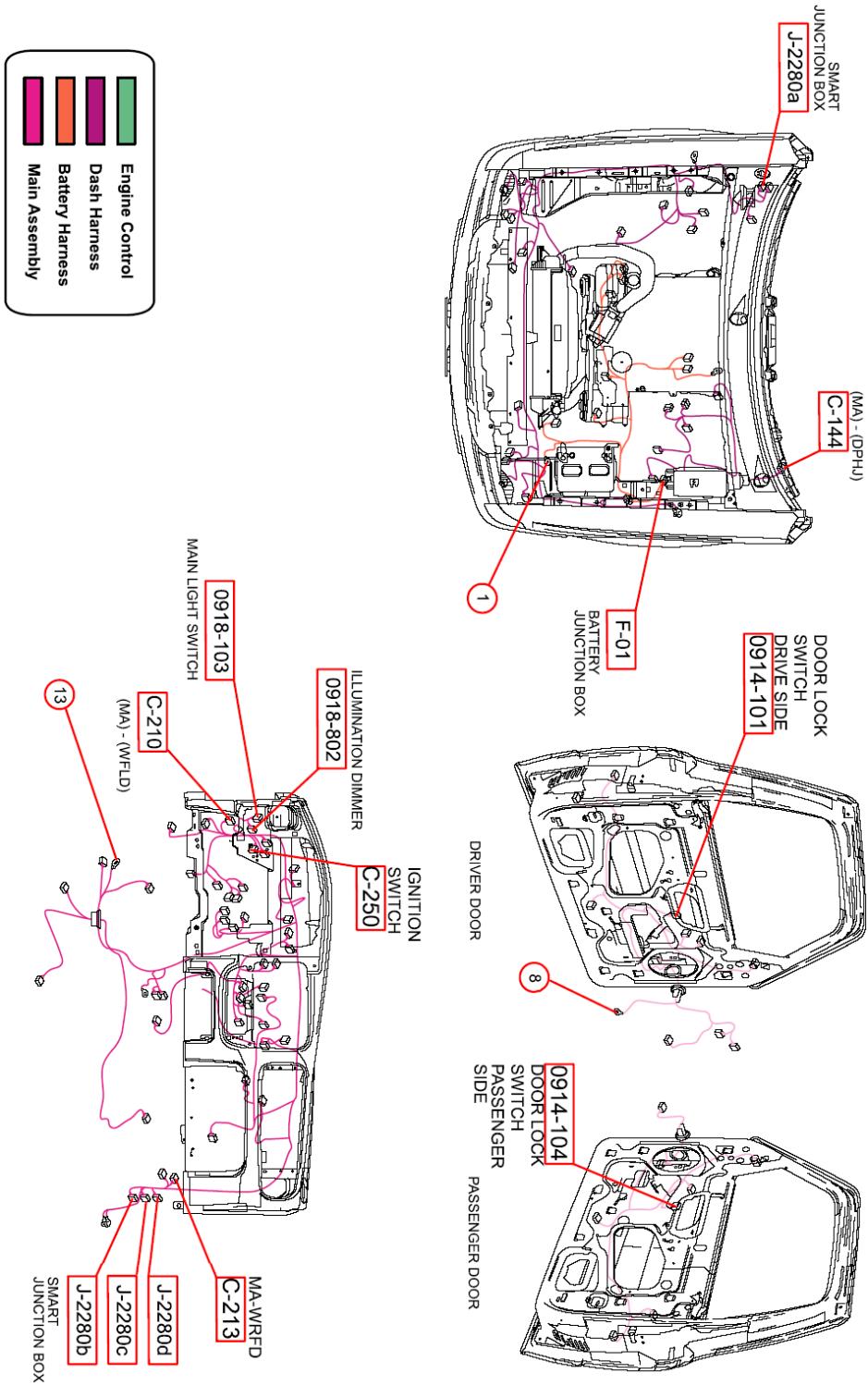

Routing View 0918-10a:

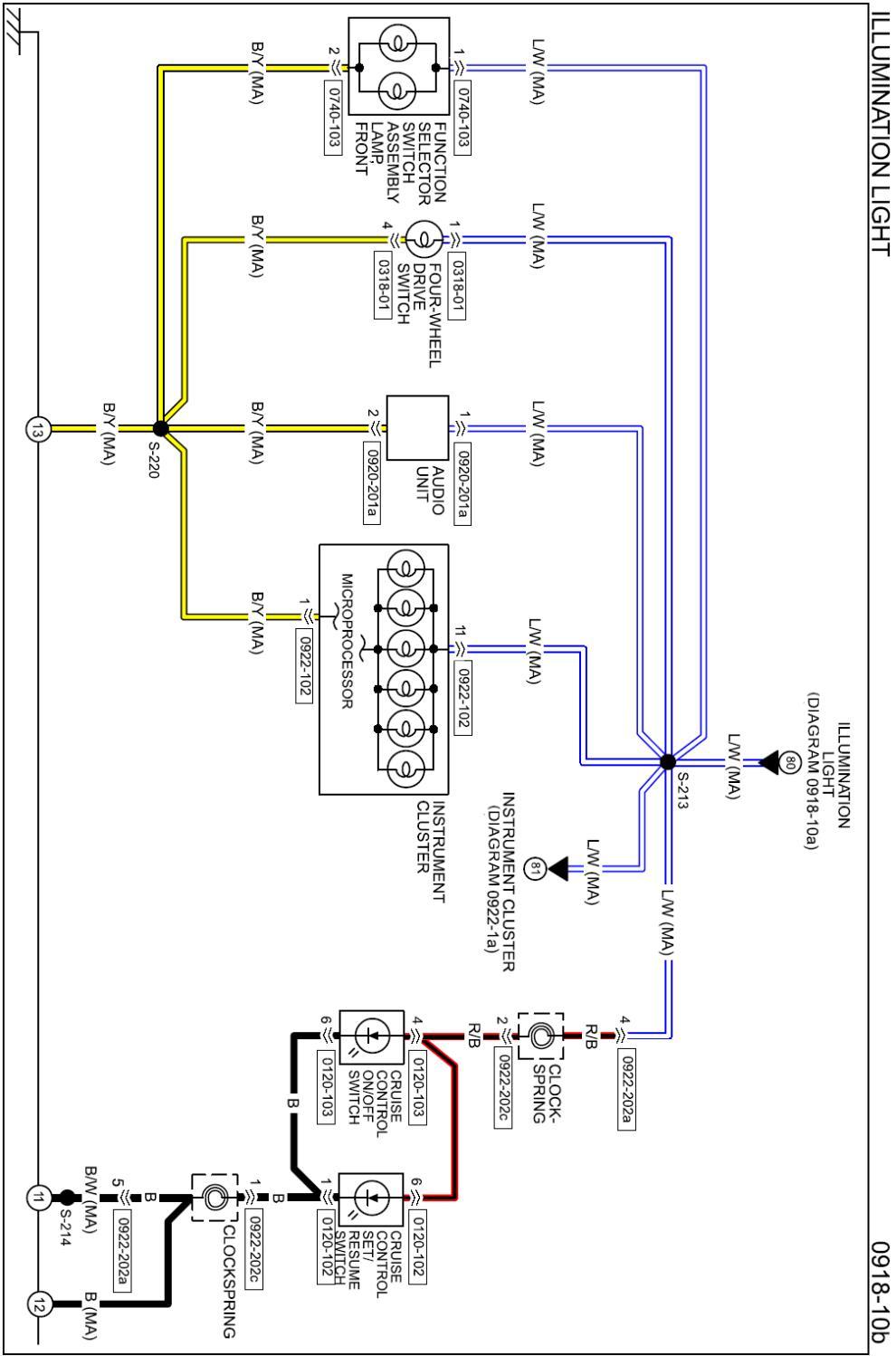

Diagram 0918-10b:

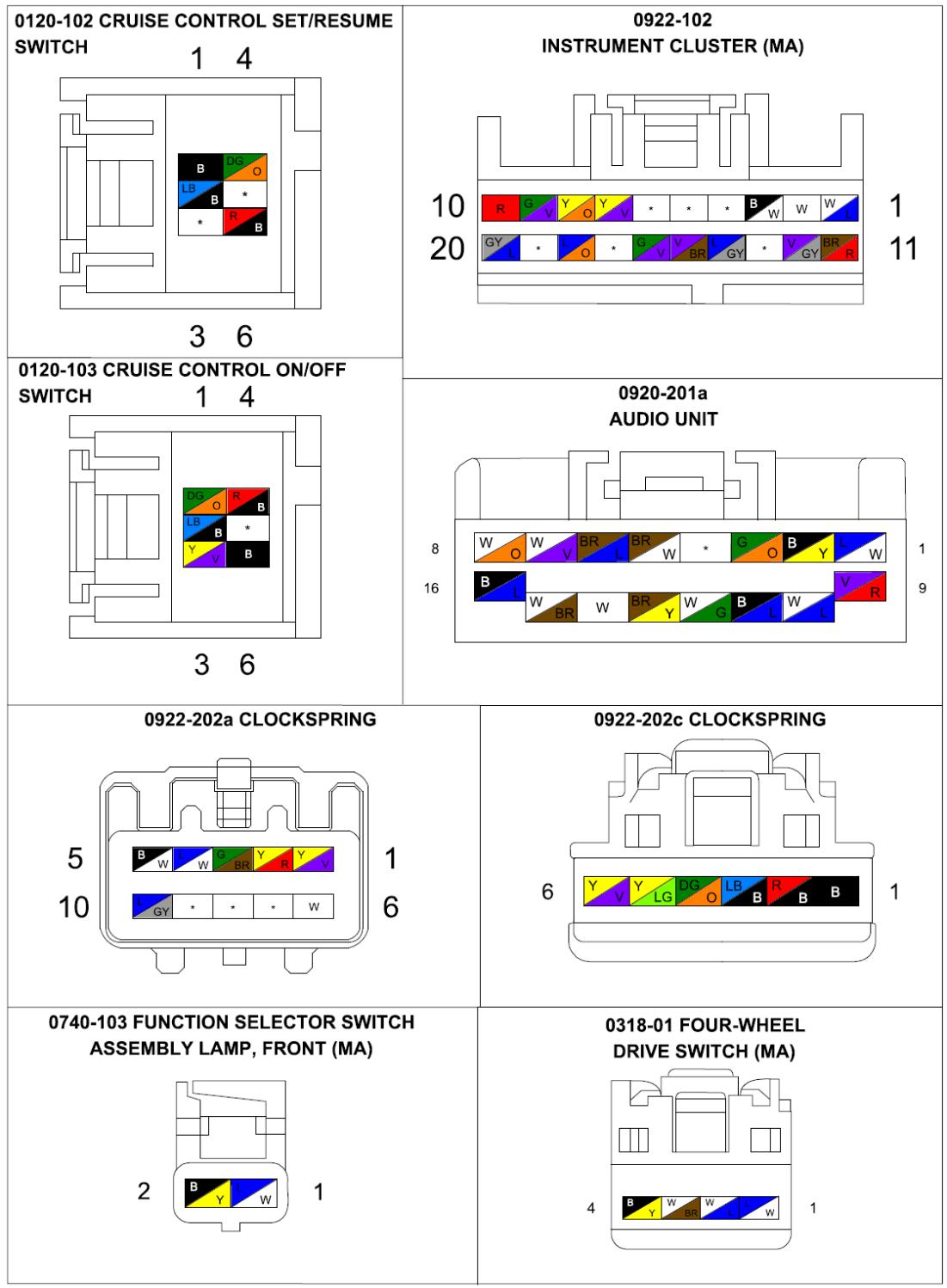

Connectors 0918-10b:

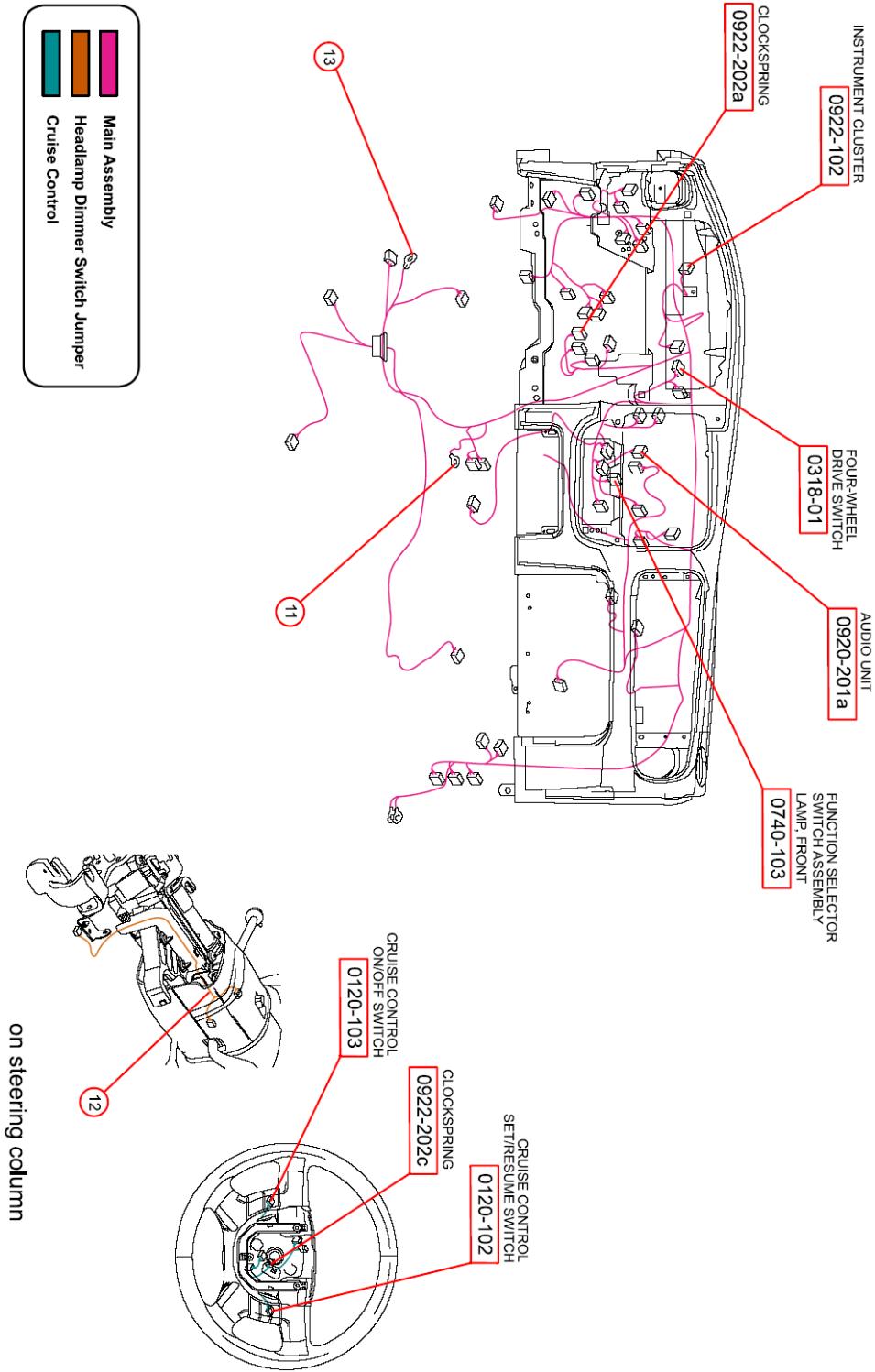

Routing View 0918-10b:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
