Rear Door Panel: Service and Repair

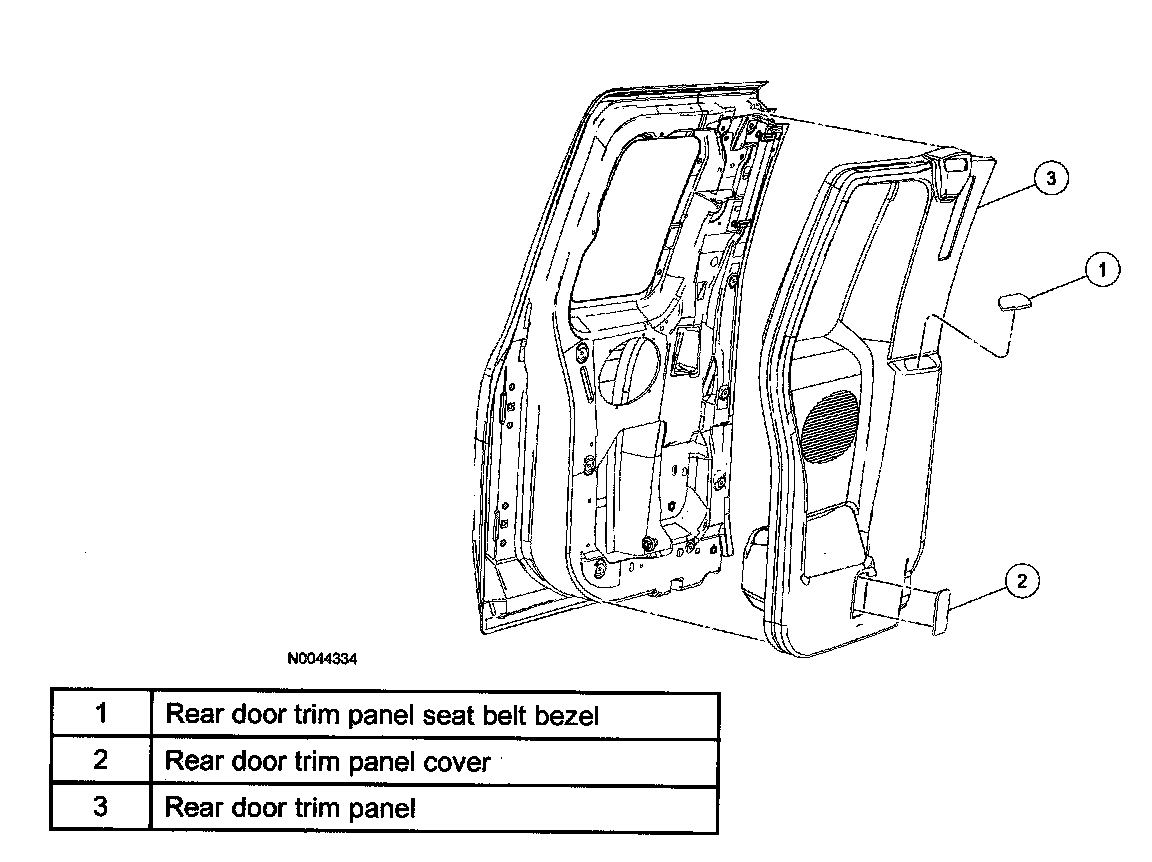

DOOR TRIM PANEL - REAR






Removal and Installation






NOTE:
- If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.
- Safety belt guide cover removed for clarity.

1. Remove the front safety belt guide cover.
- Release the retaining tabs and remove the cover.






2. Remove the bolt and safety belt guide.
- Use the safety belt bolt bit to remove the bolt.

Tightening Torque: 40 Nm (4.1 kgf-m, 30 ft-lbf)






3. Remove the safety belt anchor.
1. Use the Safety Belt Bolt Bit to remove the bolt.
2. Disconnect the safety belt anchor.

Tightening Torque: 40 Nm (4.1 kgf-m, 30 ft-lbf)






4. Remove the door trim panel.
- Separate the trim panel from the door.

5. To install, reverse the removal procedure.
