P0712

TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR 5R44E AND 5R55E ONLY

Note:
^ See AUTOMATIC TRANSMISSION DIAGNOSIS and the Control Valve Body Wire Harness Diagram. Reading and Clearing Diagnostic Trouble Codes

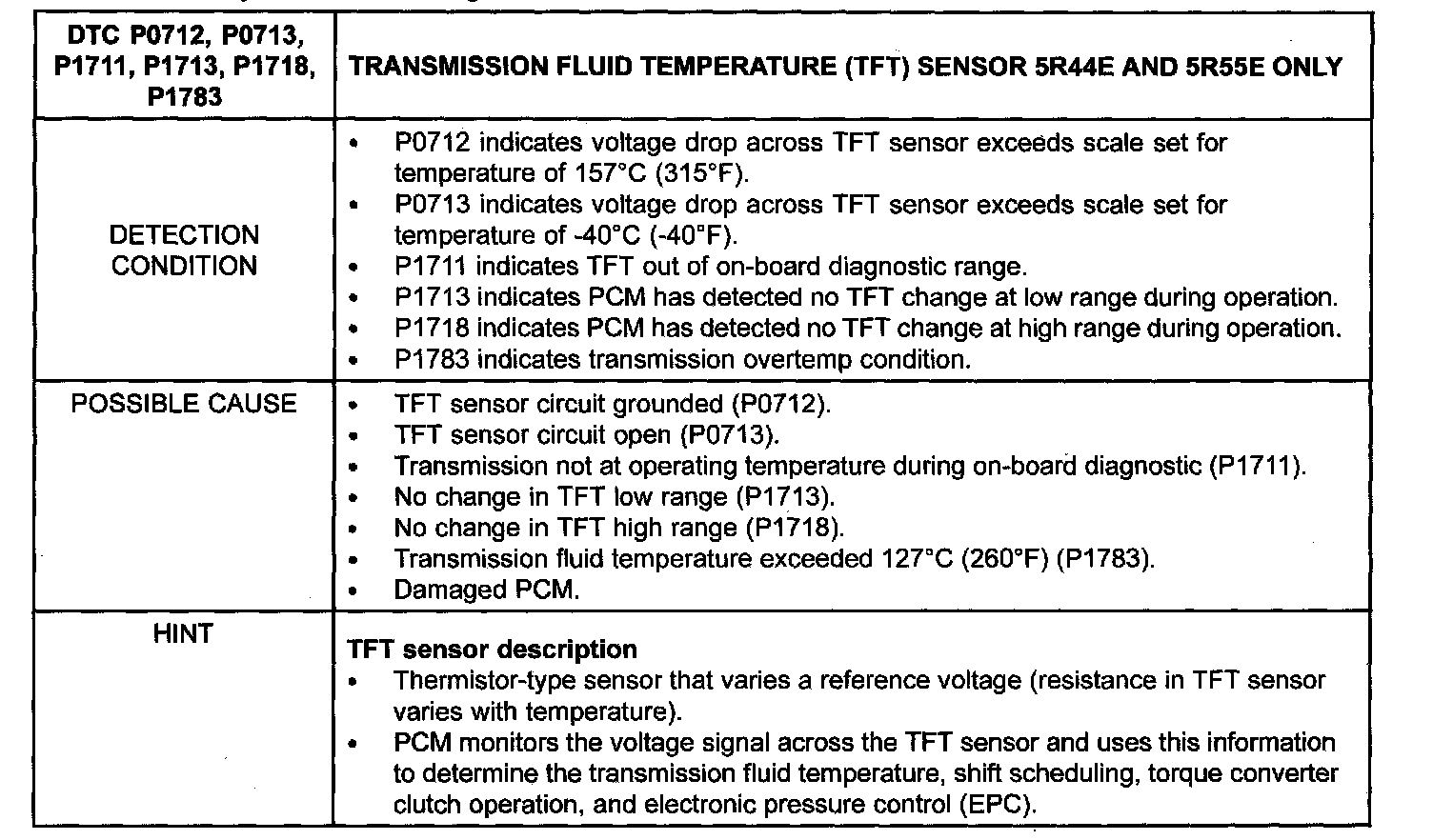

P0712-P0713 / P1711 / P1713 / P1718 / P1783:

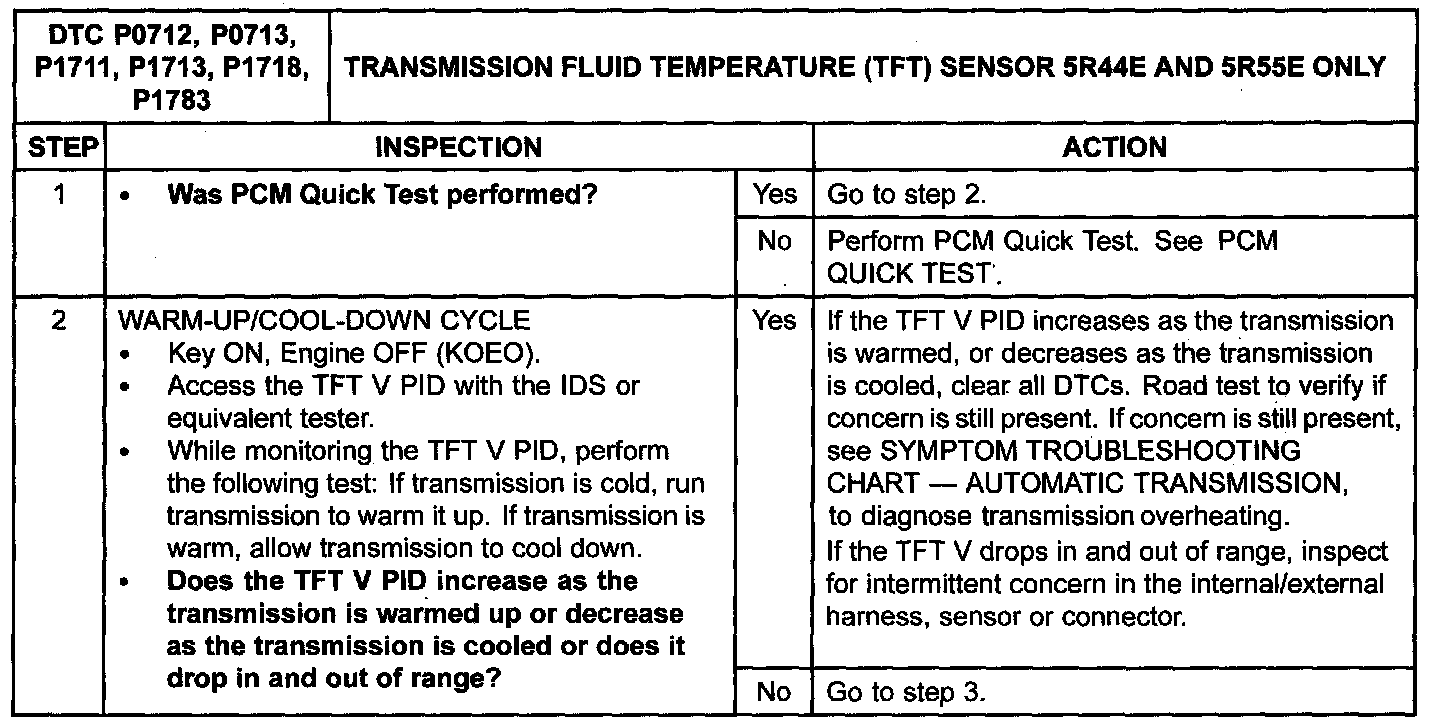

Step 1-Step 2:

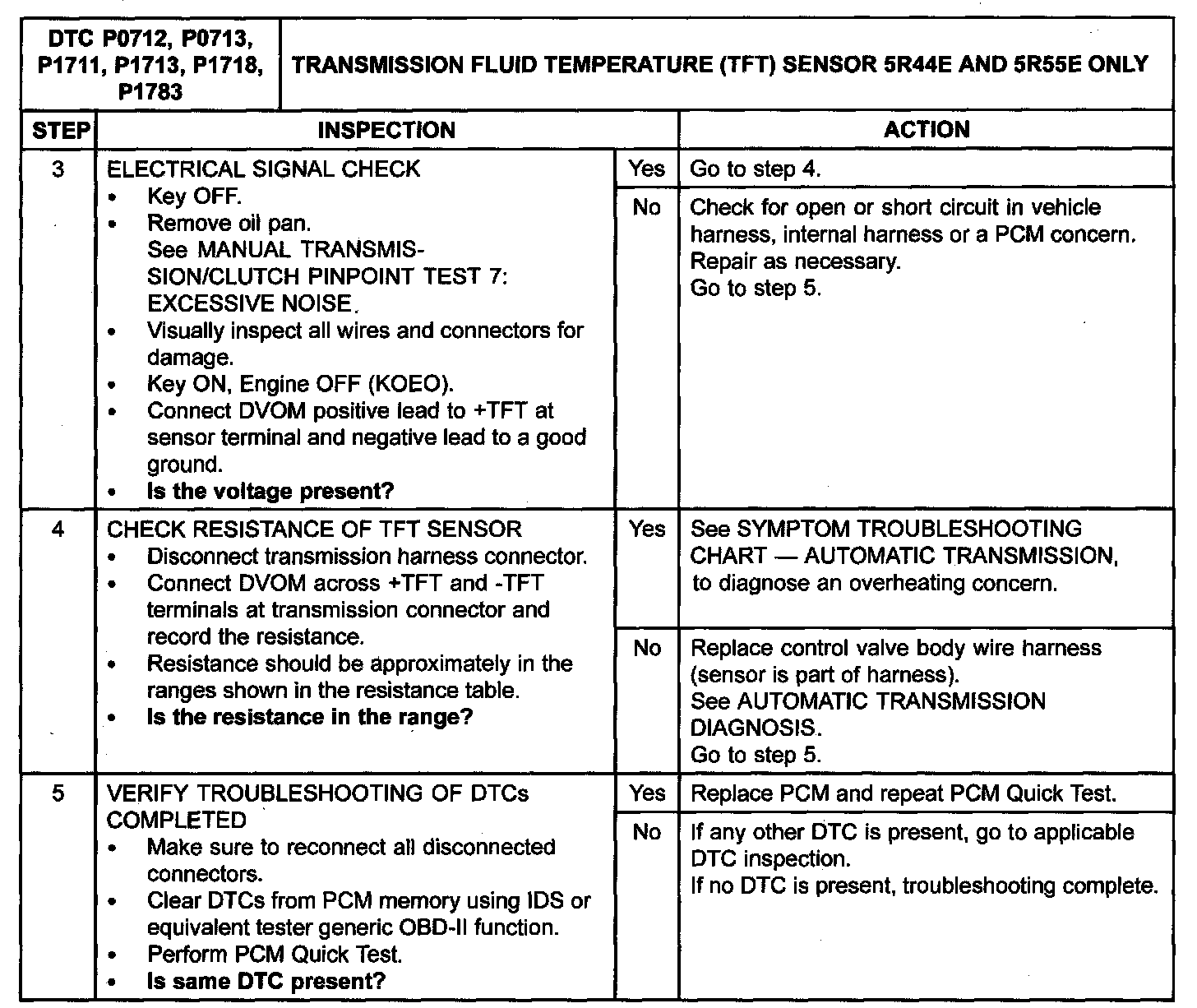

Step 3-Step 5:
