Entertainment

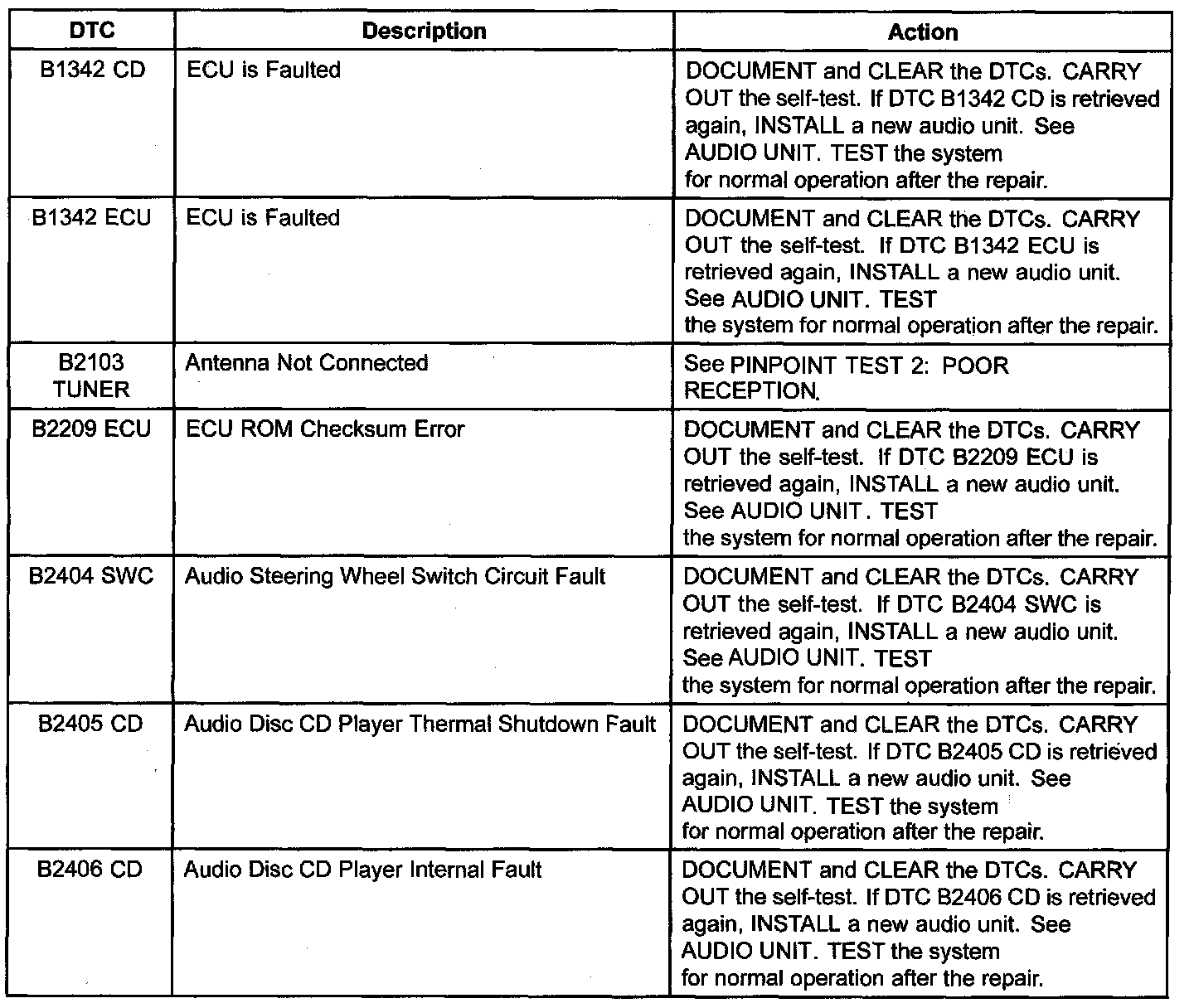

AUDIO UNIT DIAGNOSTIC TROUBLE CODE (DTC) INDEX

CAUTION: For the CD6 the audio unit, must be placed in shipment mode before removal. See AUDIO UNIT SHIPMENT MODE. Failure to follow this instruction may result in damage to the audio unit.

NOTE: The audio unit DTCs are only retrieved by using the speaker walk-around test.

B1342 CD-B2406 CD:

B2857 CD-B2858 CD:
