B1363

PINPOINT TEST 22: DTC B1363 - IGNITION START CIRCUIT FAULT

Normal Operation

NOTE: The smart junction box (SJB) is also known as the generic electronic module (GEM).

DTC B1363 sets when the instrument cluster senses voltage applied to the run/start circuit (Y/O) for more than 15 seconds.

This pinpoint test is intended to diagnose the following:
- Instrument cluster

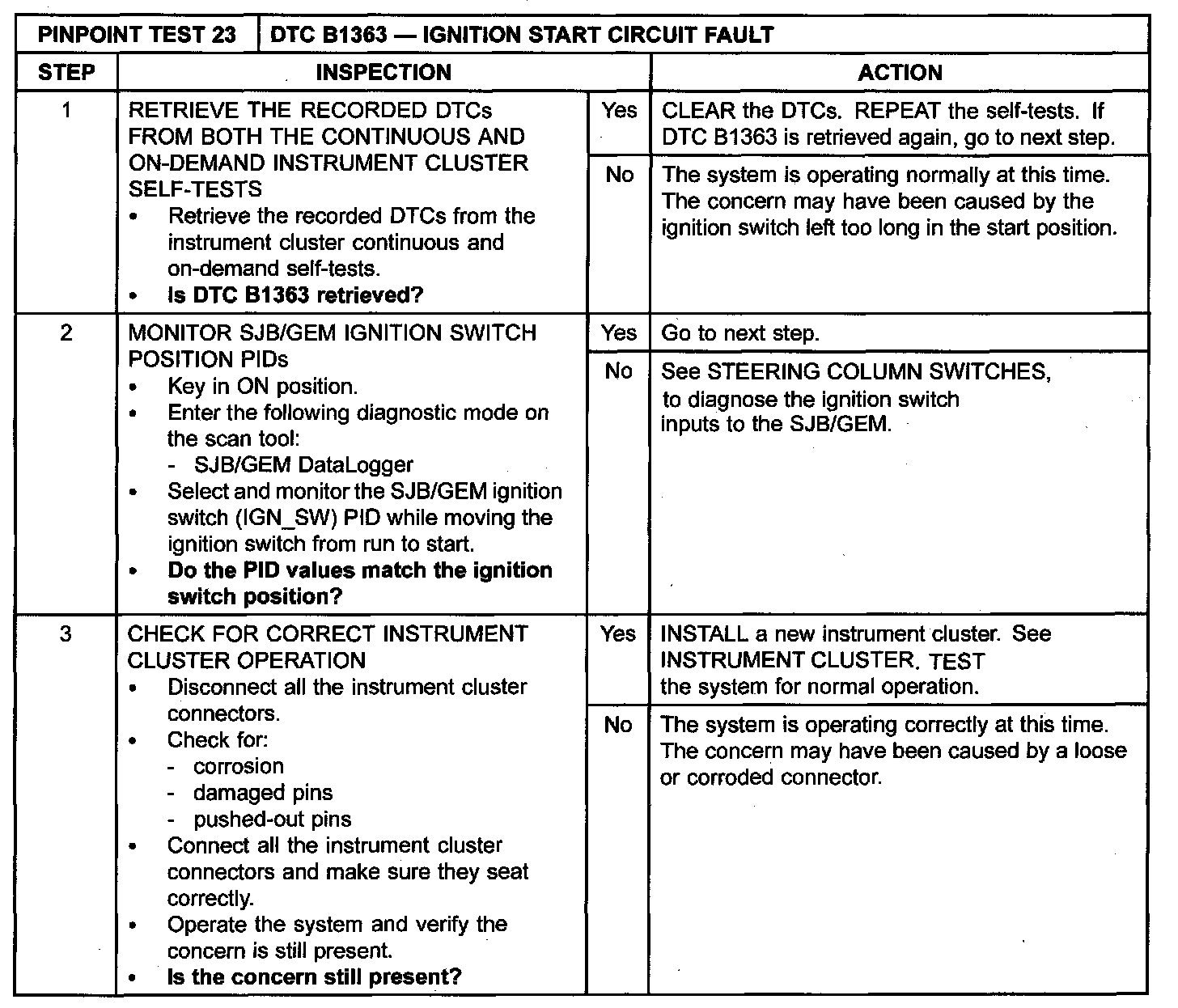

Step 1-Step 3:
