Removal and Replacement

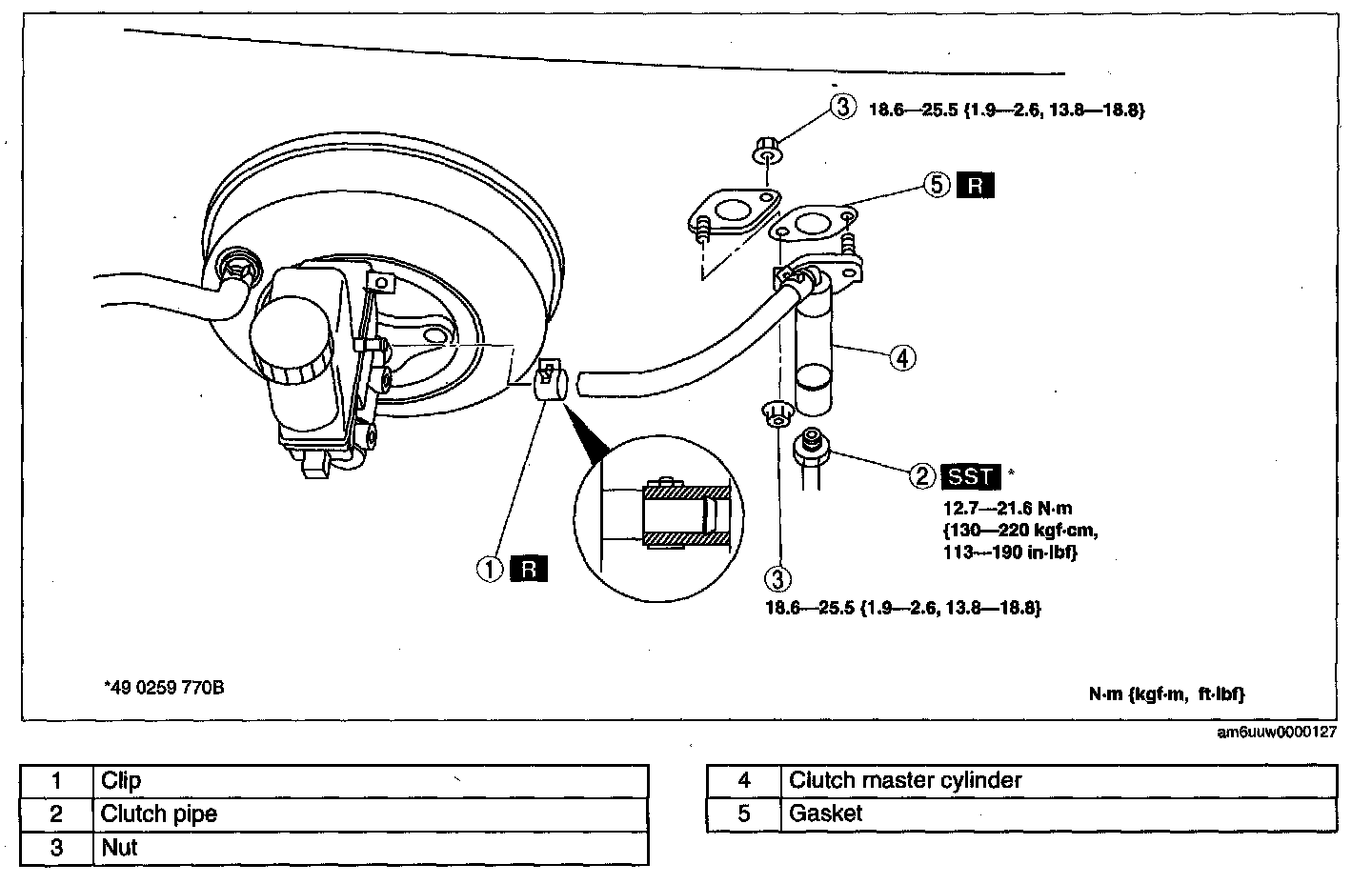

CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [G35M-R, A65M-R]
1. Remove the battery and battery tray.
2. Remove in the order indicated in the table.
3. Plug the clutch pipe after removing it to avoid leakage.
4. Install in the reverse order of removal.
