Overhaul

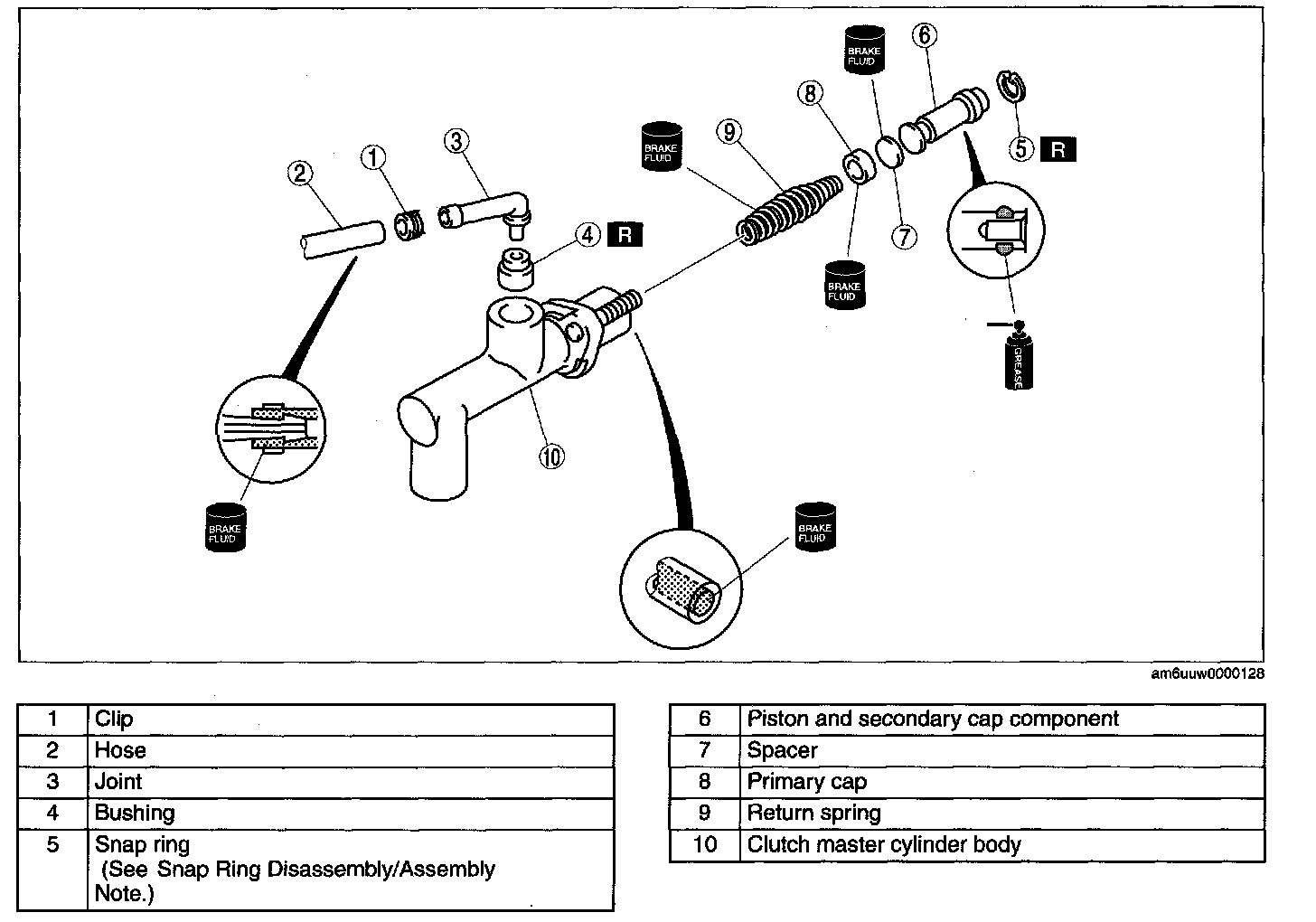

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY [G35M-R, A65M-R]
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.





Snap Ring Disassembly/Assembly Note





1. Hold the piston down using a cloth-wrapped pin punch.
^ If disassembling, remove the snap ring; if assembling, install it.
