Headlight (Without DRL)

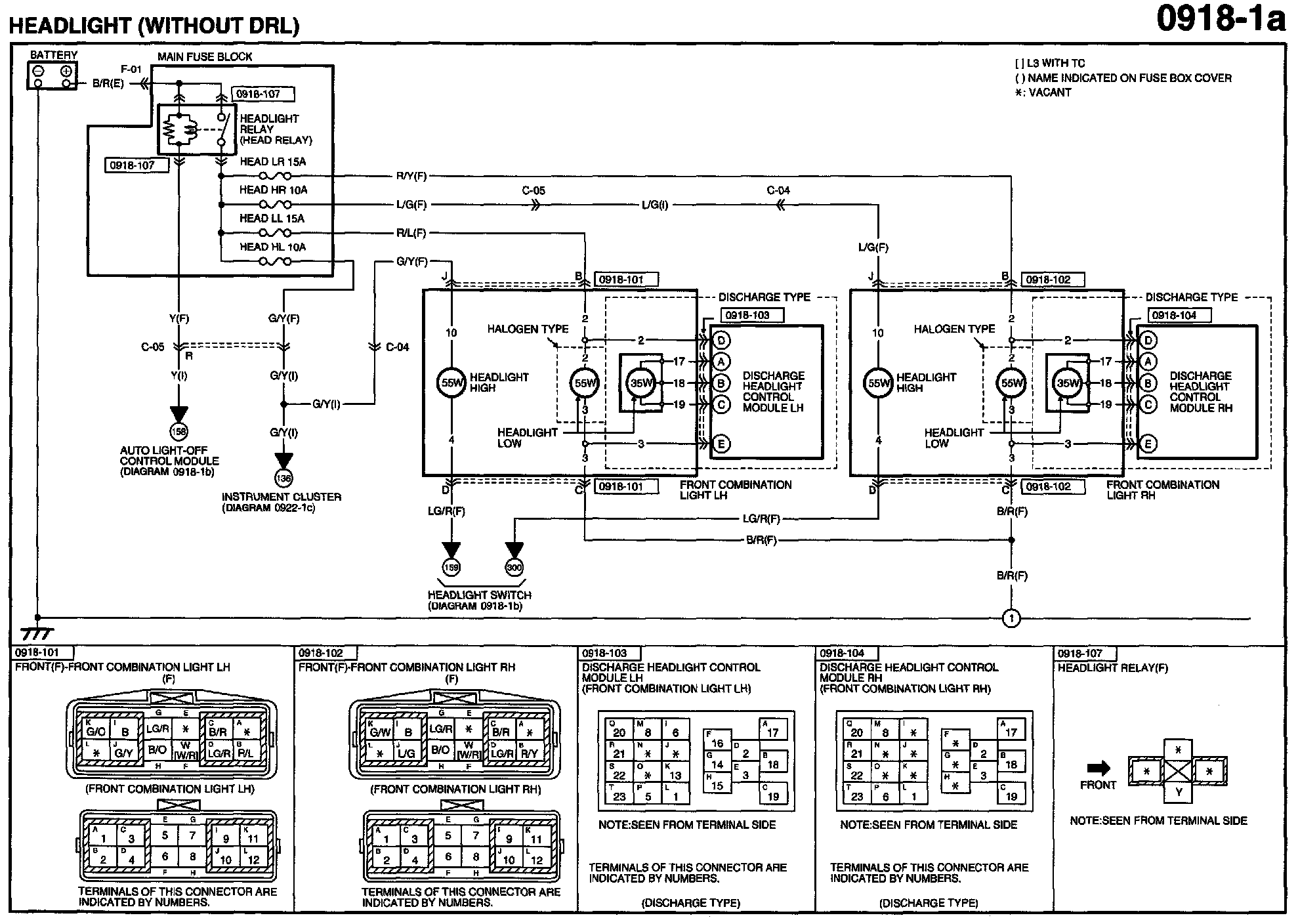

Diagram 0918-1a:

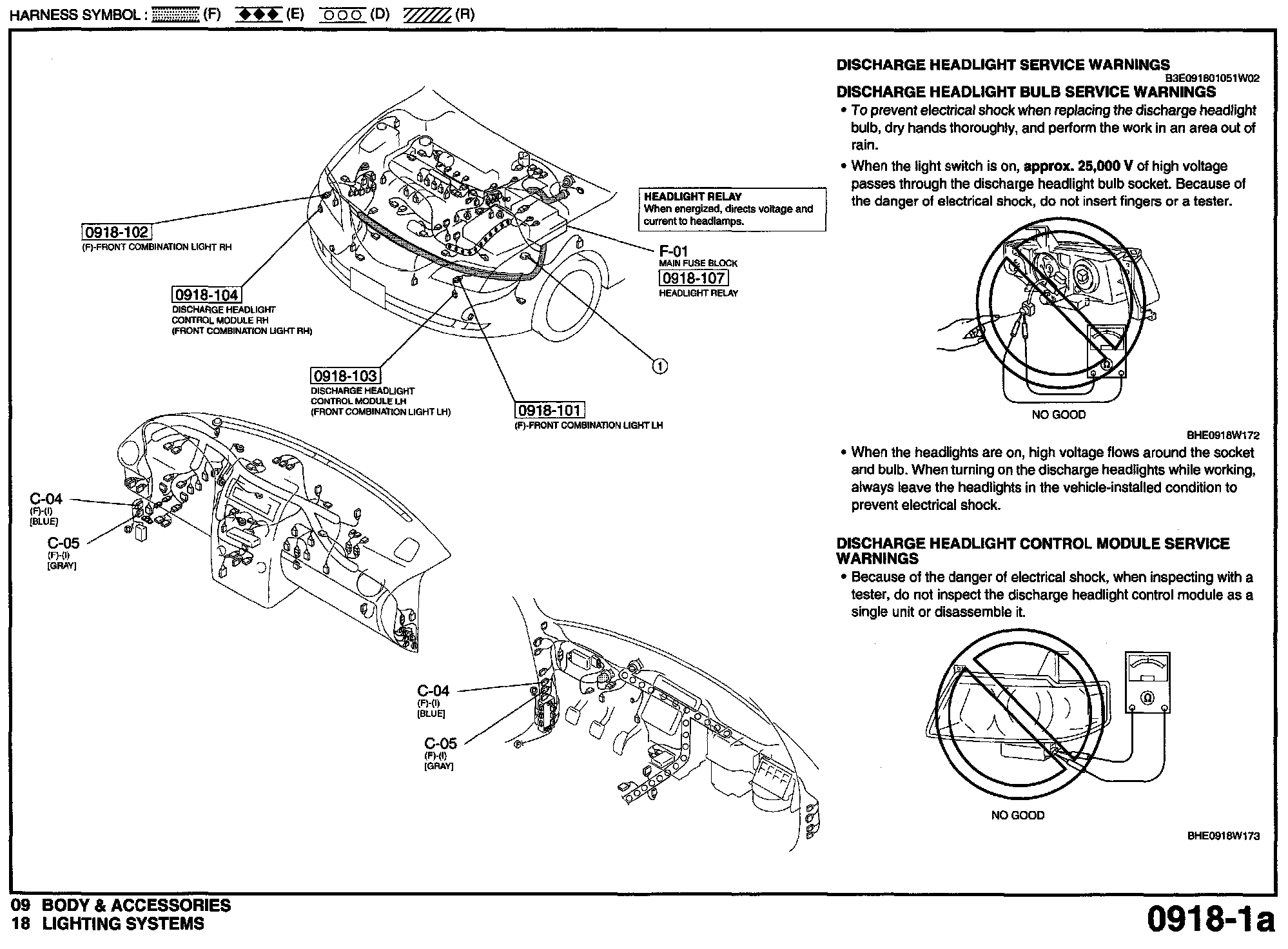

Routing View 0918-1a:

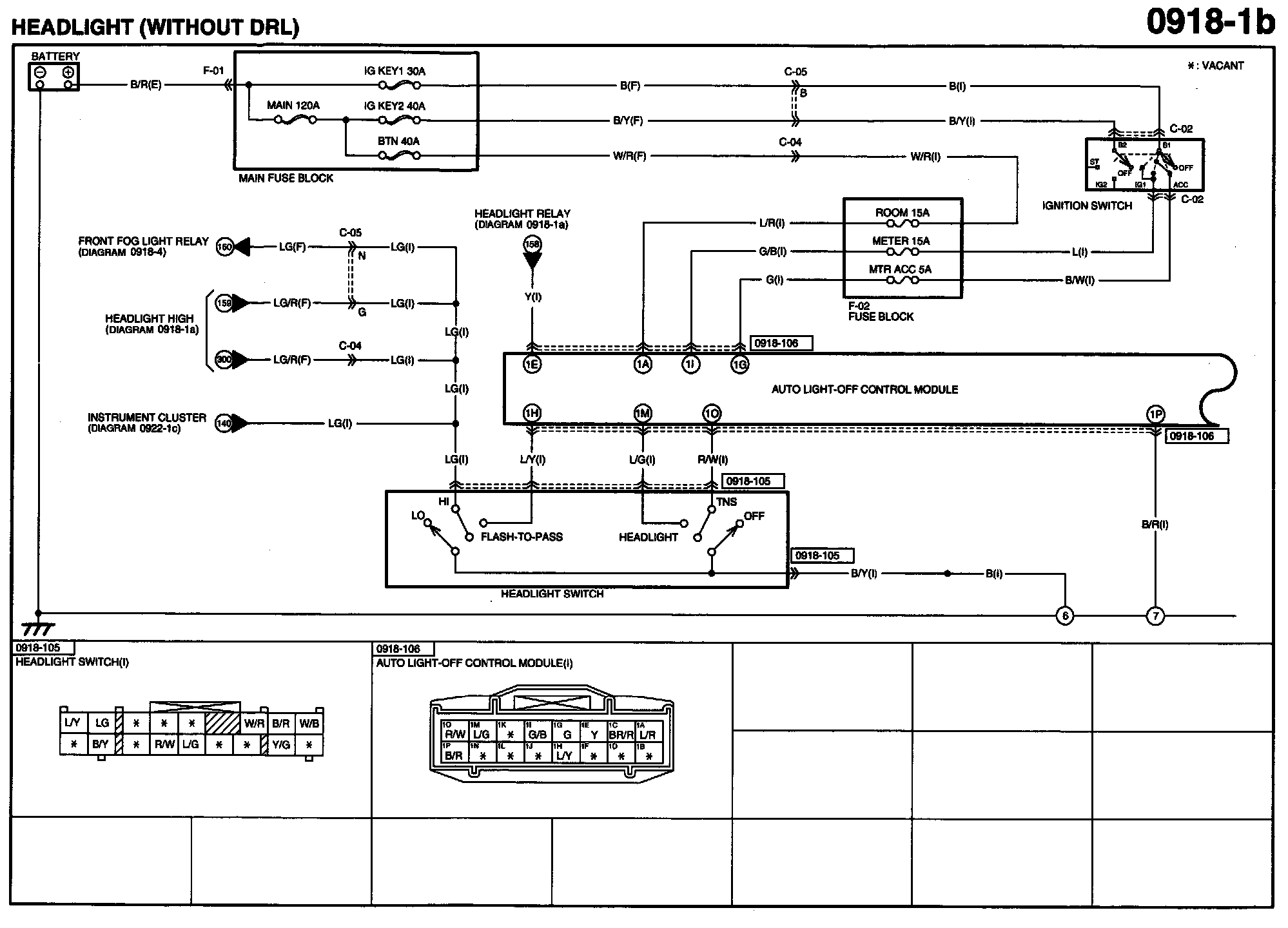

Diagram 0918-1b:

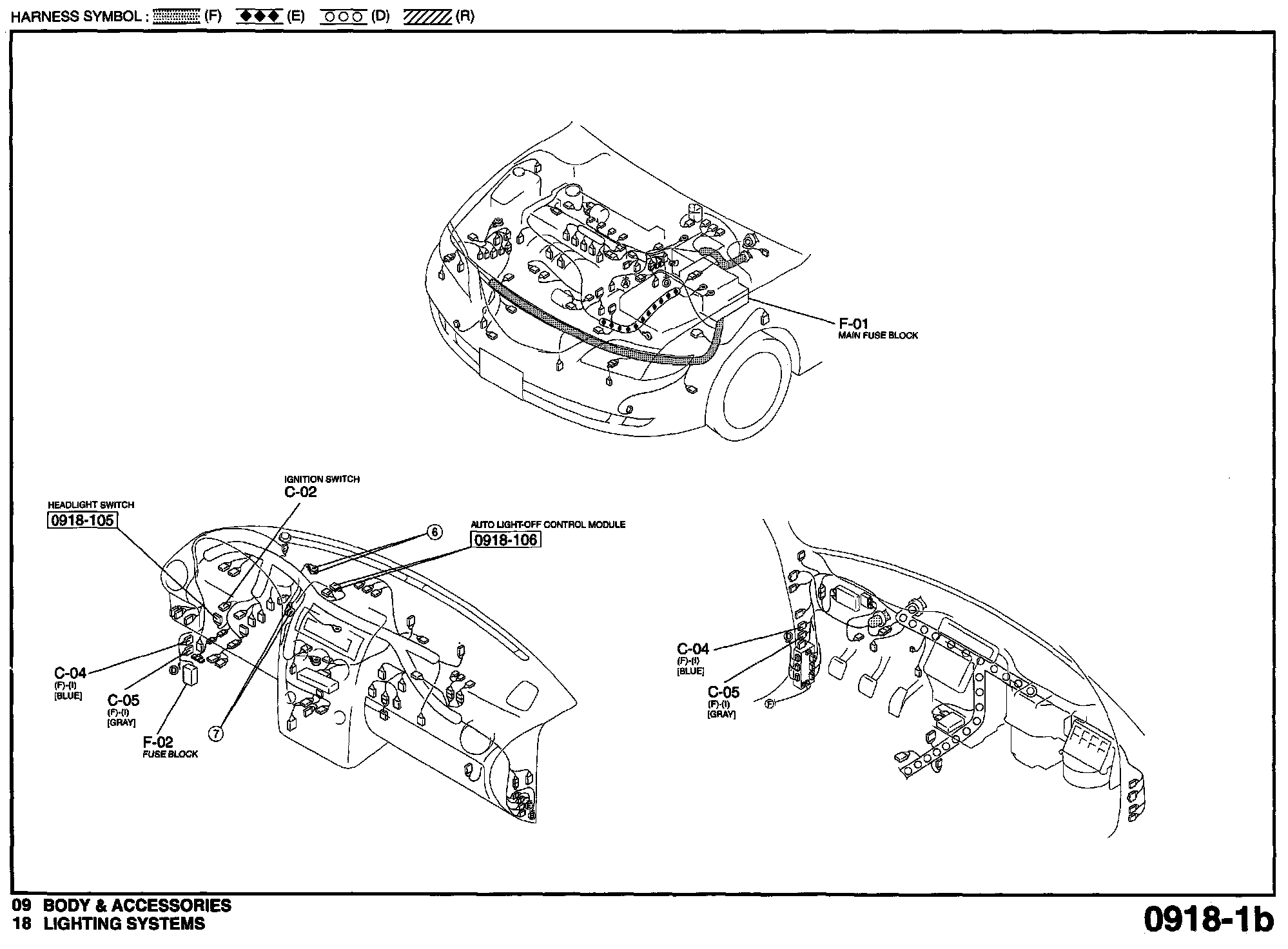

Routing View 0918-1b:

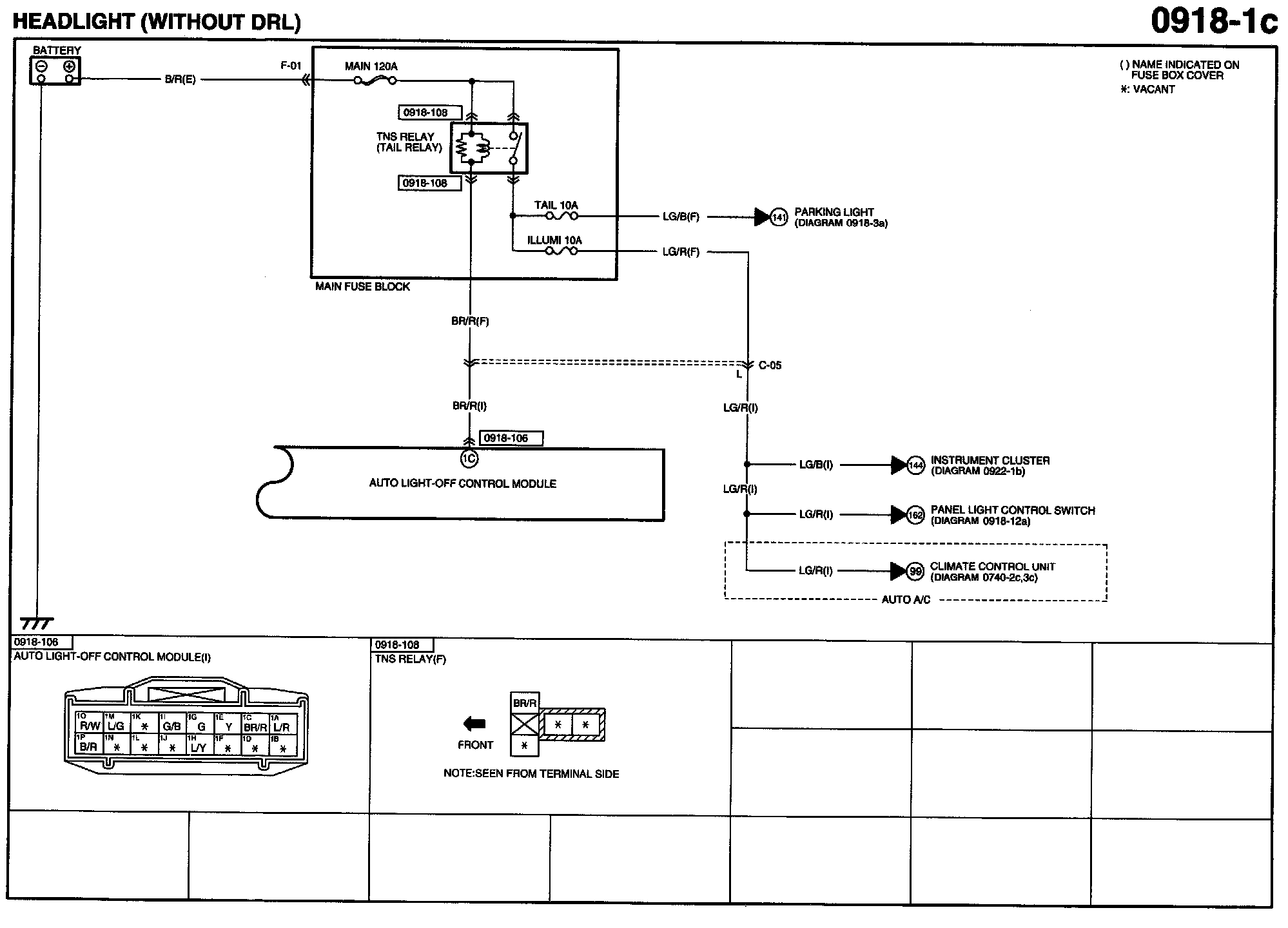

Diagram 0918-1c:

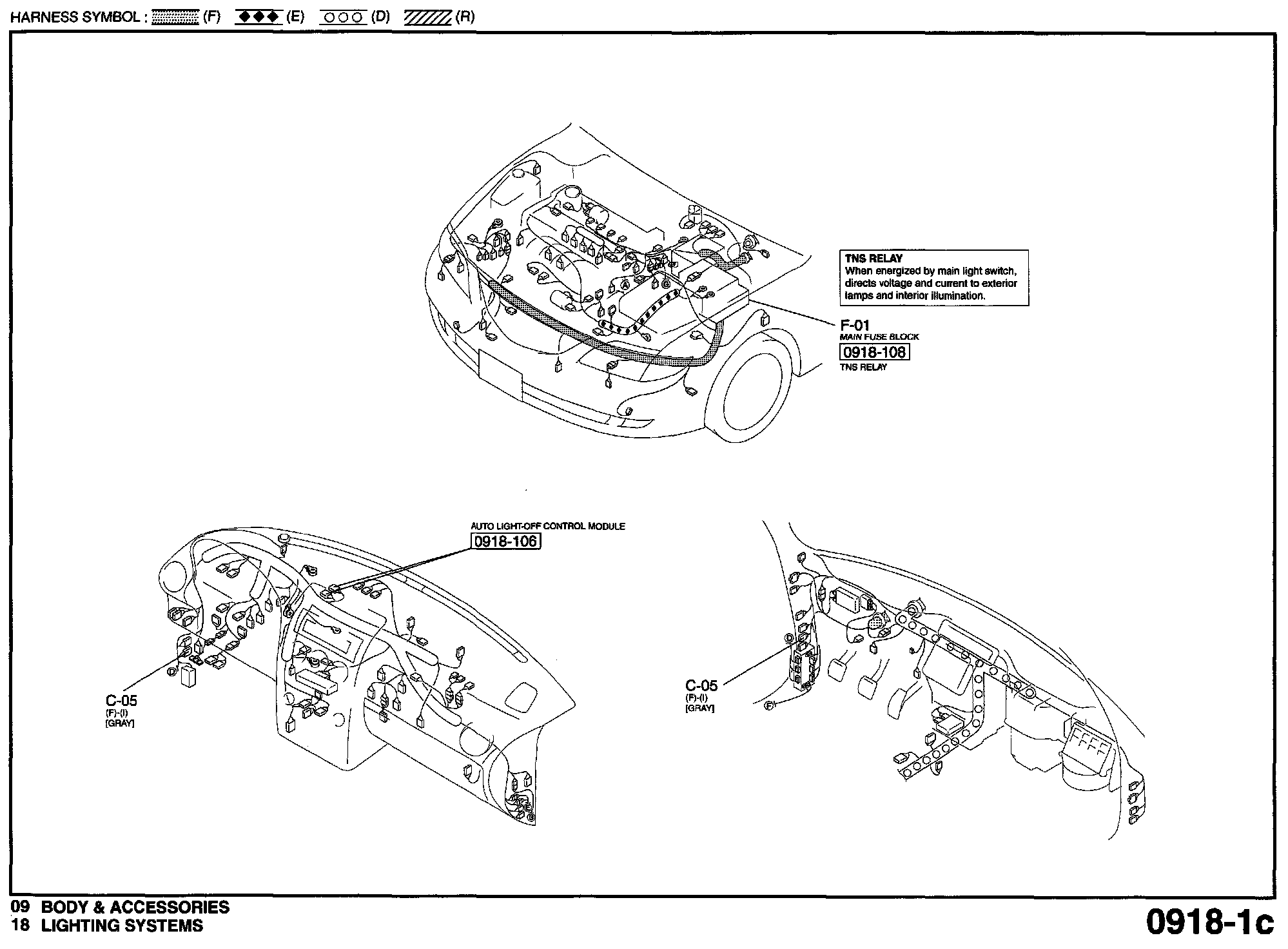

Routing View 0918-1c:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
