Electrical Diagrams

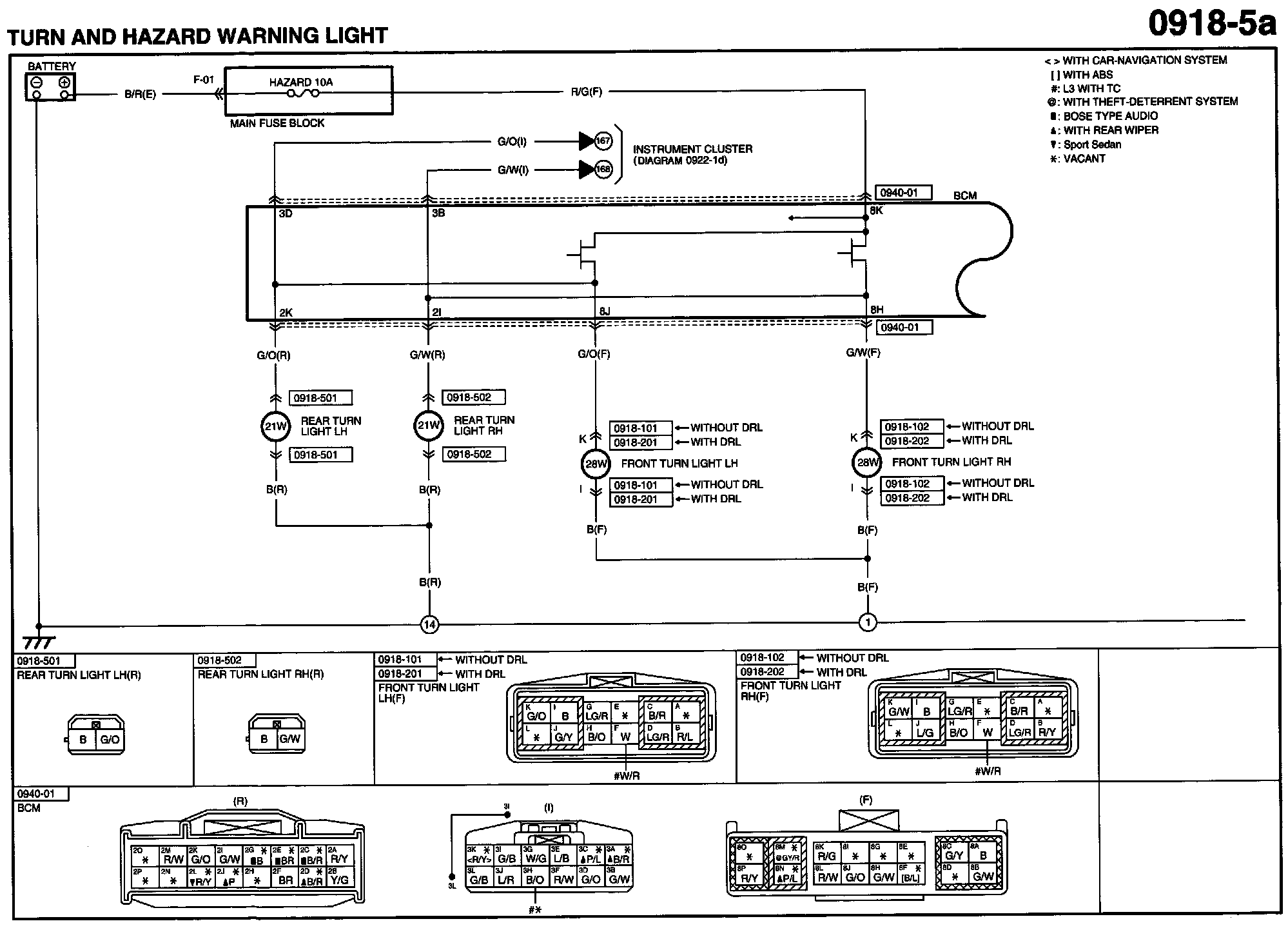

Diagram 0918-5a:

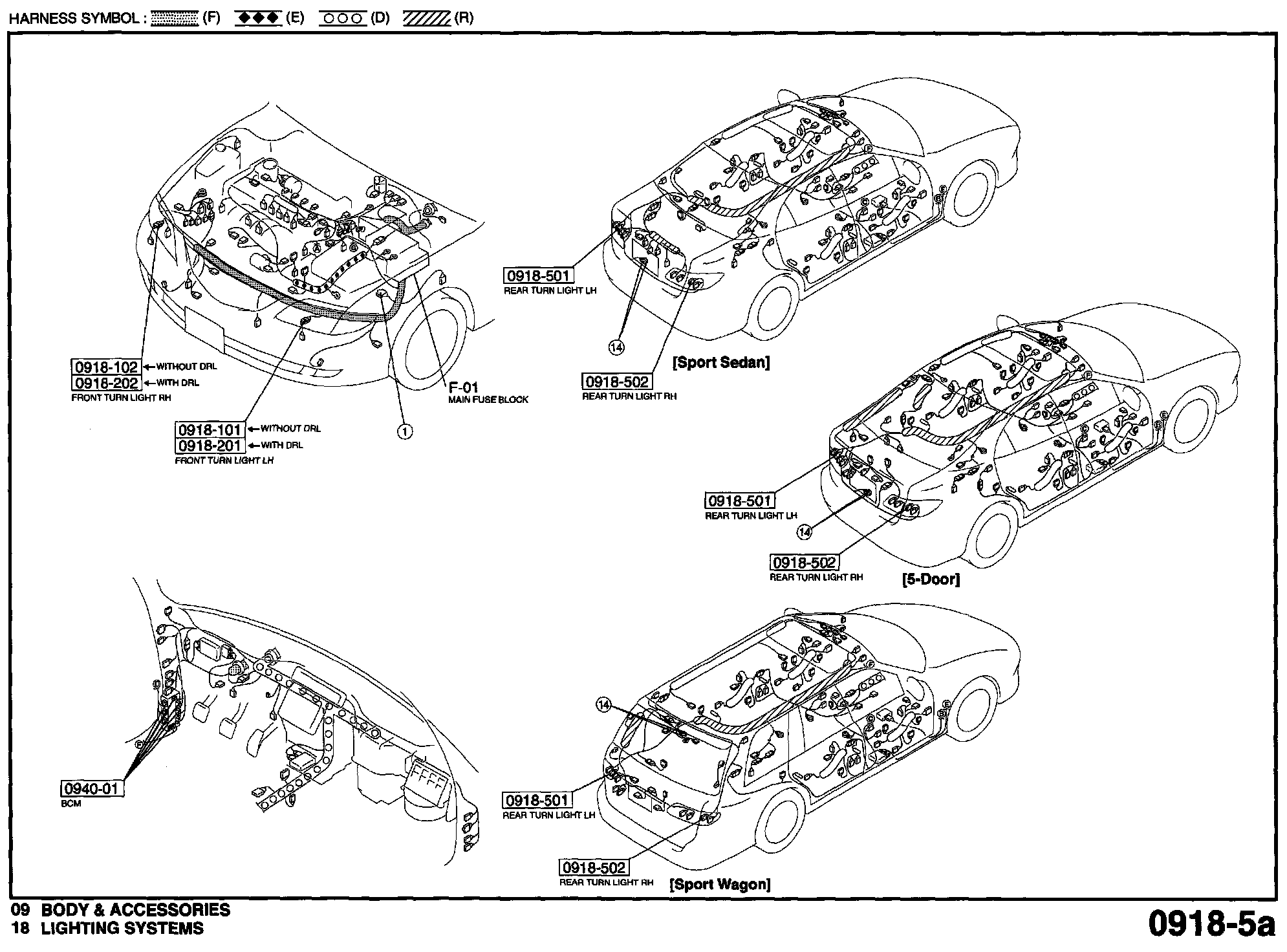

Routing View 0918-5a:

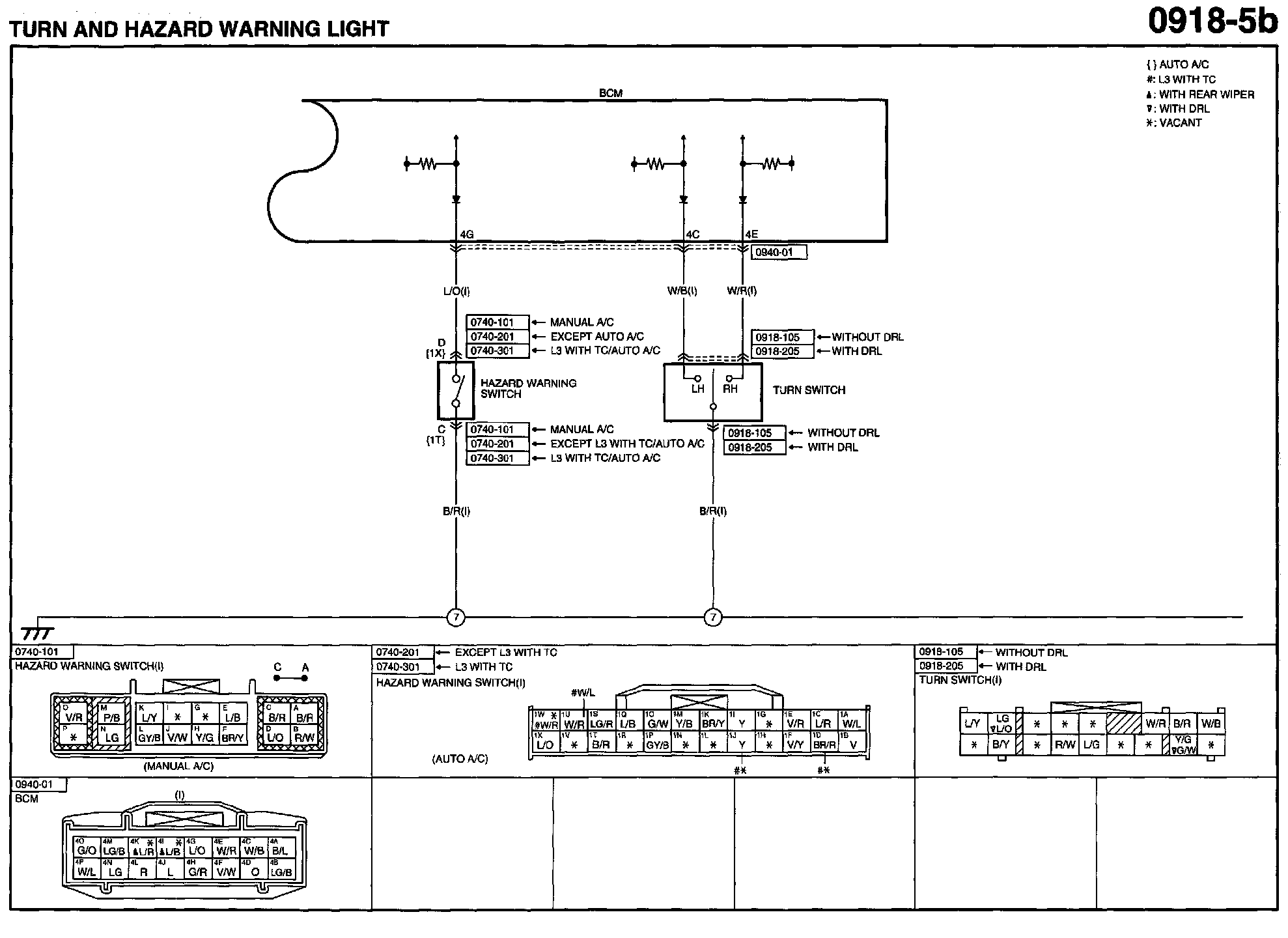

Diagram 0918-5b:

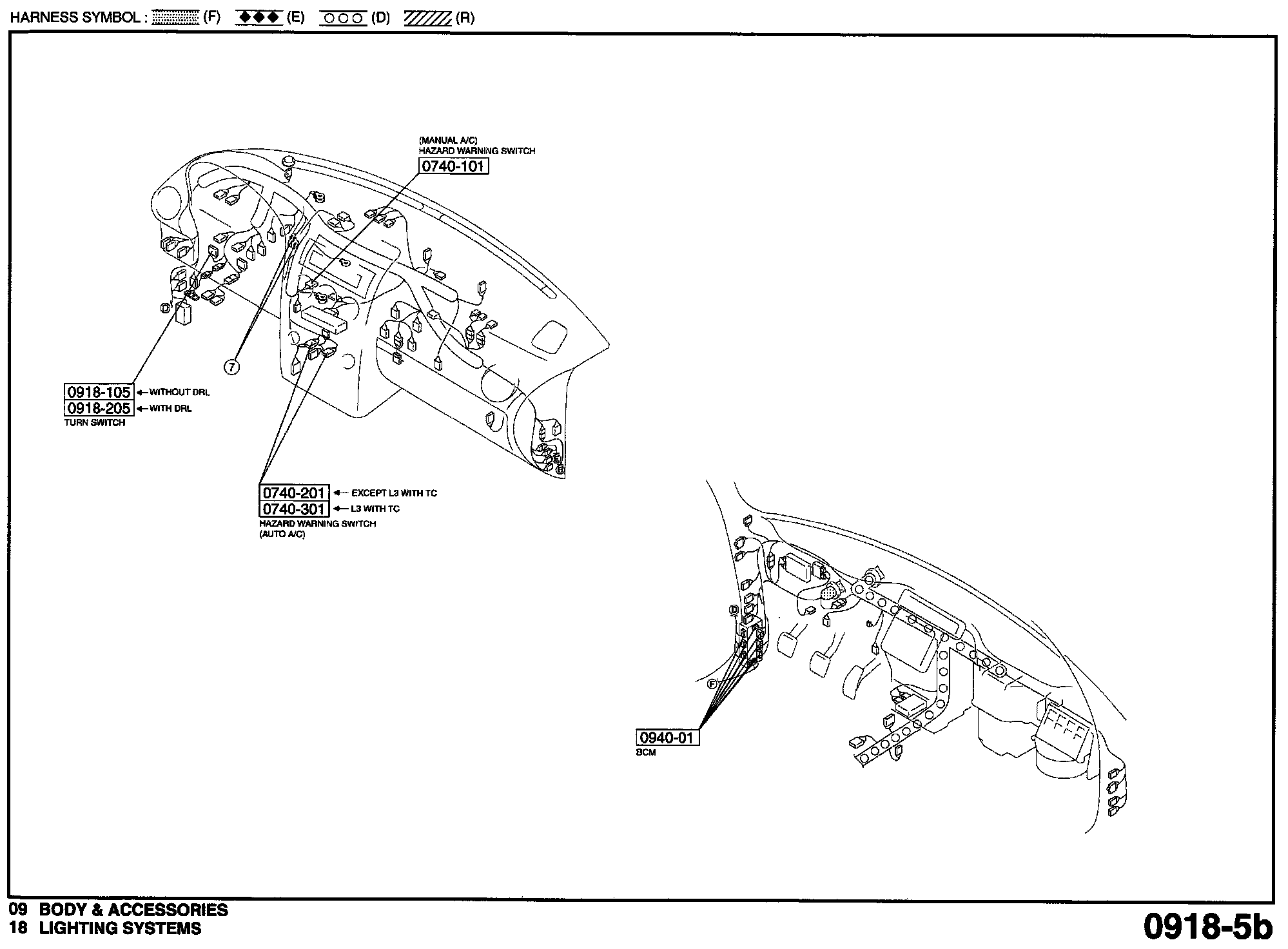

Routing View 0918-5b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
