Camshaft Inspection

CAMSHAFT INSPECTION

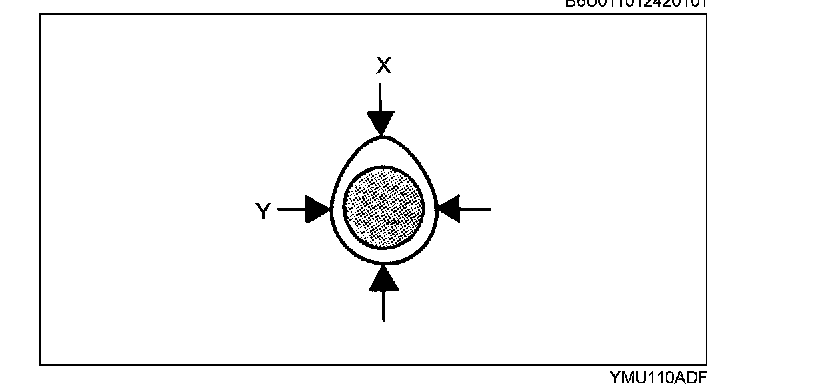

1. Measure the cam lobe height at the two points as indicated in the figure to calculate the gap between X and Y.
^ If not as specified, replace the camshaft.

Standard height
IN: 4.79 mm (0.189 in)
EX: 4.79 mm (0.189 in)

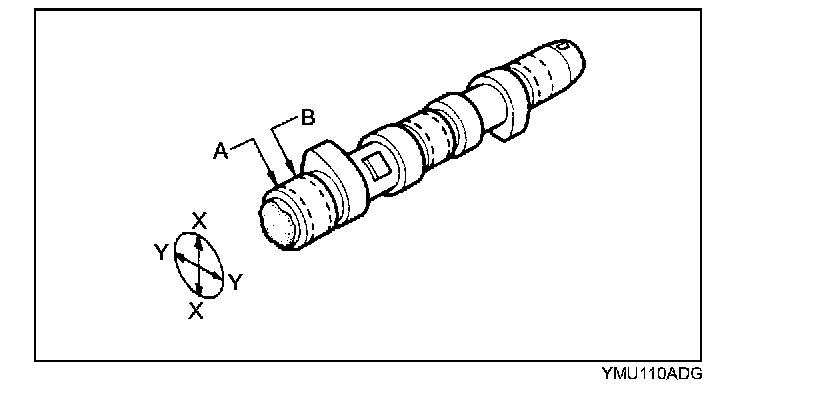

2. Measure the journal diameters in X and Y directions at the two points (A and B) as indicated in the figure.
^ If not as specified, replace the camshaft.

Standard diameter
26.936-26.962 mm (1.0604-1.0615 in)
