Camshaft End Play Inspection

CAMSHAFT END PLAY INSPECTION

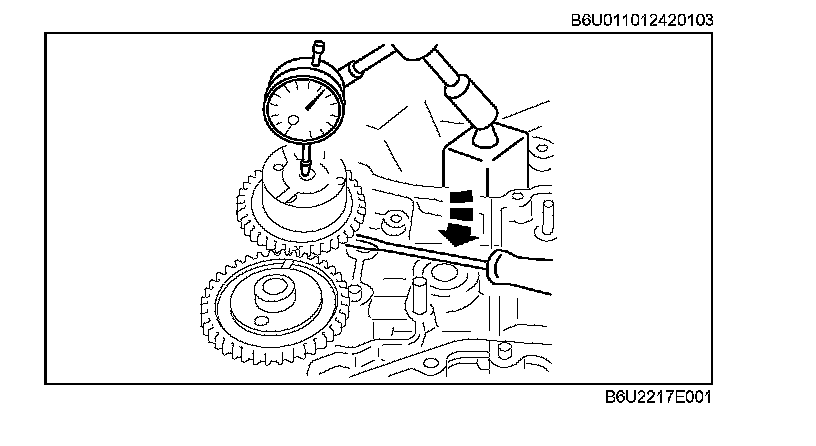

1. Measure the camshaft end play.
^ If the camshaft end play exceeds the maximum end play, replace the cylinder head or camshaft.

Standard end play
0.025-0.165 mm (0.0010-0.0064 in)
Maximum end play
0.190 mm (0.00748 in)

2. Remove the camshaft cap.
