No.17 Excessive Shift Shock From N to D or N to R Position/Range
>>
[FS5A-EL]
[FS5A-EL]

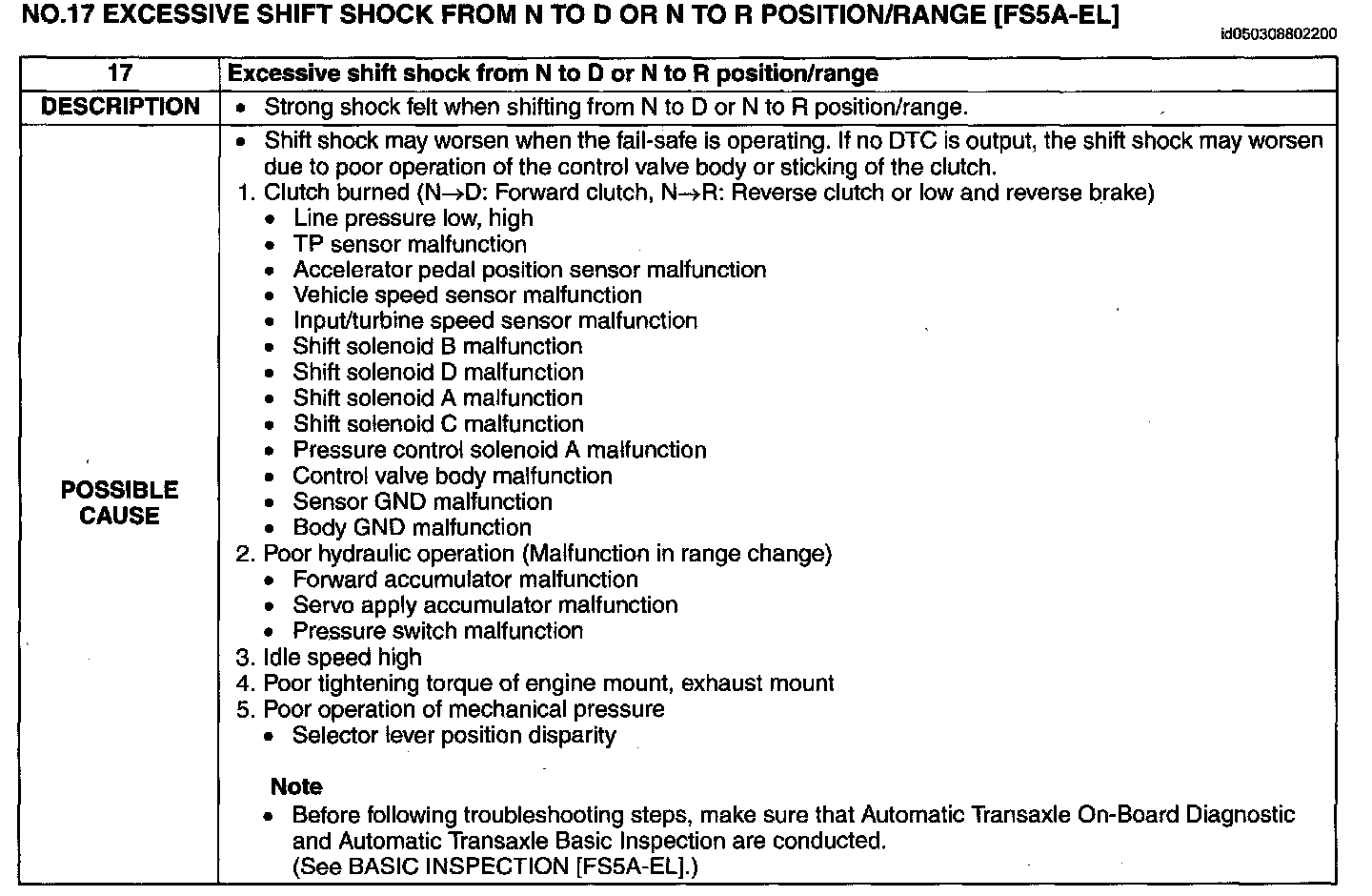

NO.17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE [FS5A-EL]
No.17 Excessive Shift Shock From N to D or N to R Position/Range [FS5A-EL]:

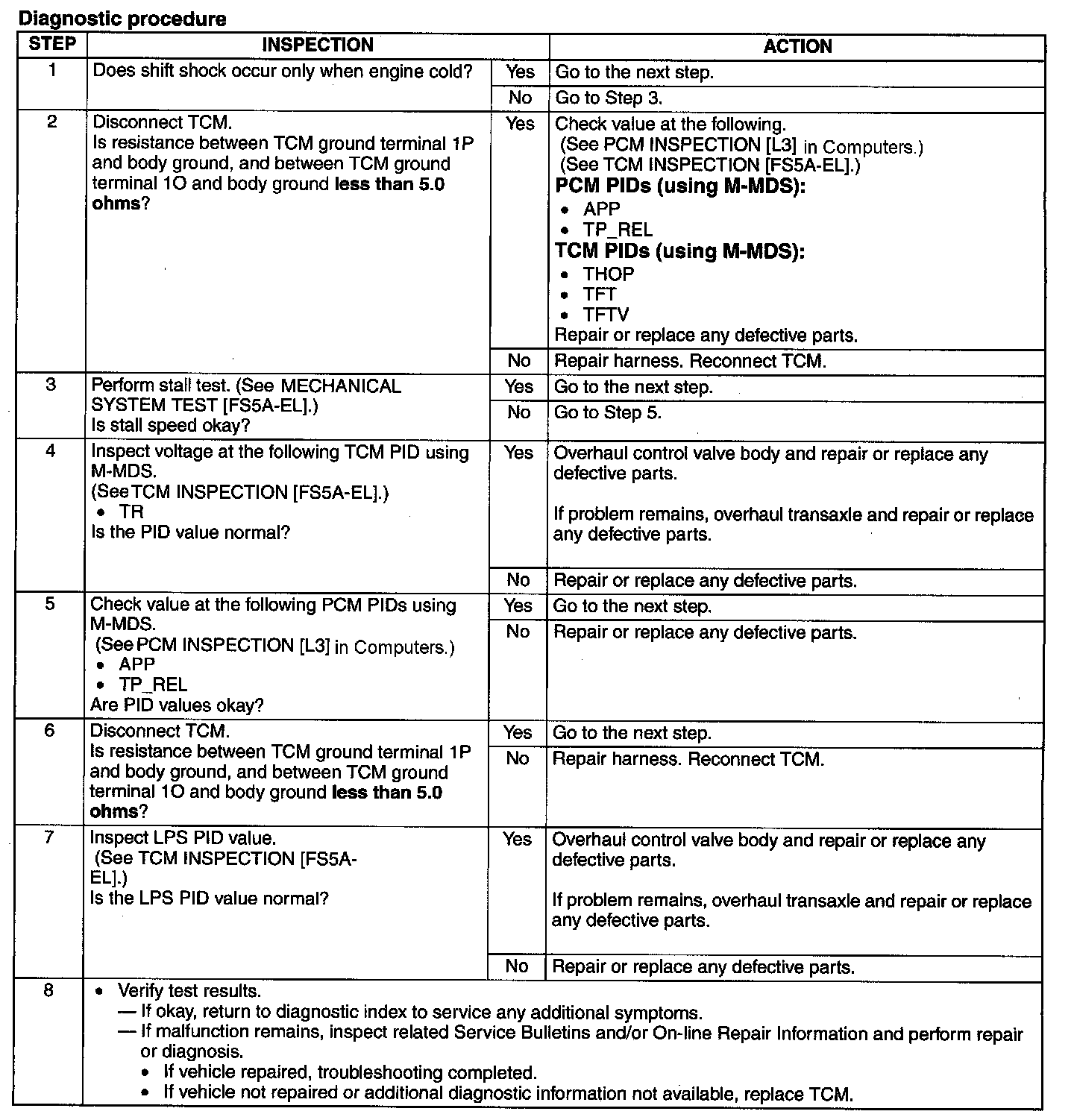

Diagnostic procedure
Step 1- Step 8:
