Wiring Diagram 05-102a Automatic Transaxle Control System Wiring Diagram [AW6A-EL]
Wiring Diagram 05-102a Automatic Transaxle Control System Wiring Diagram [AW6A-EL]

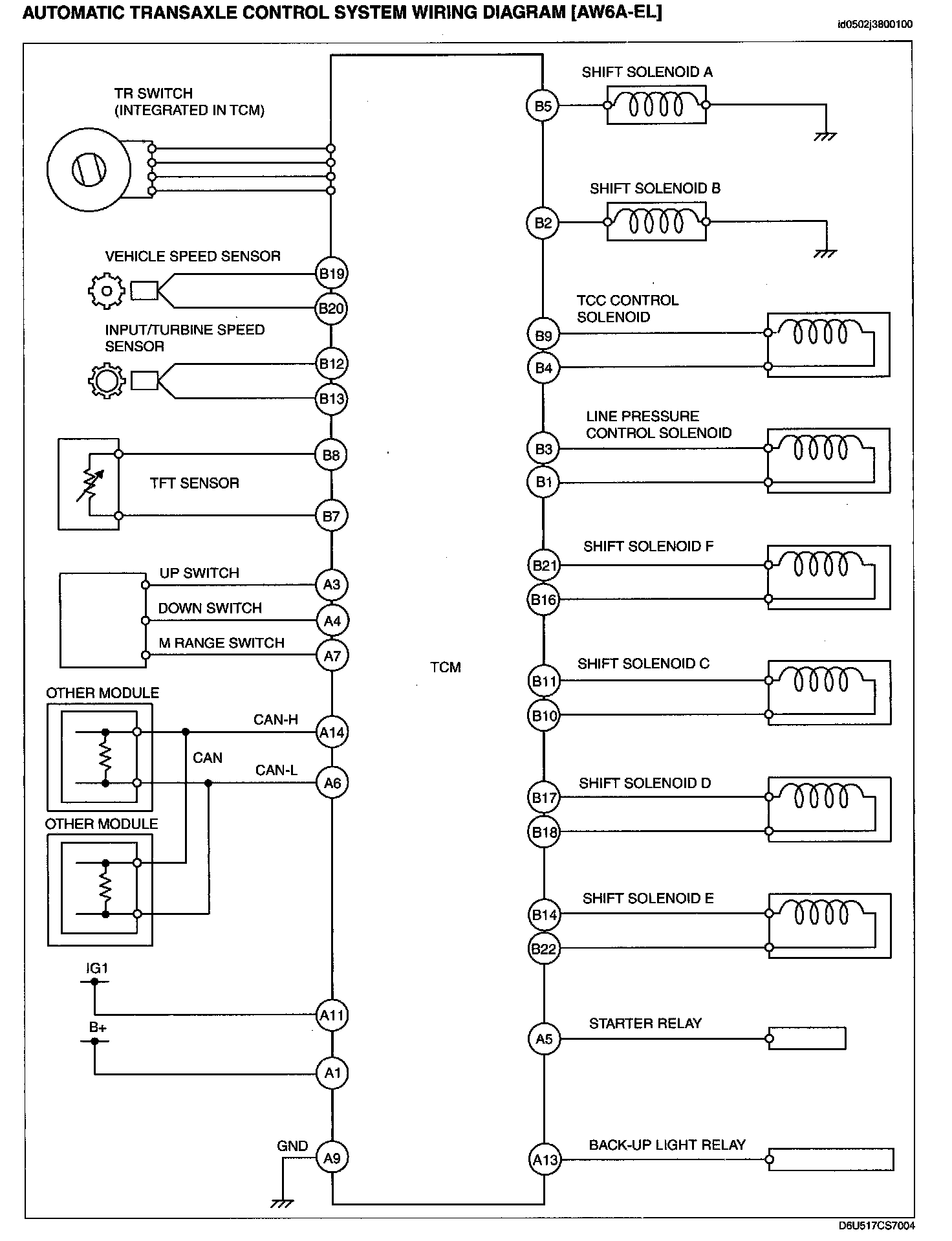

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [AW6A-EL]:
