Locations
>>
Connector Locations
>>
Lower Dashboard Connectors Connectors/Ground Points Locations
>>

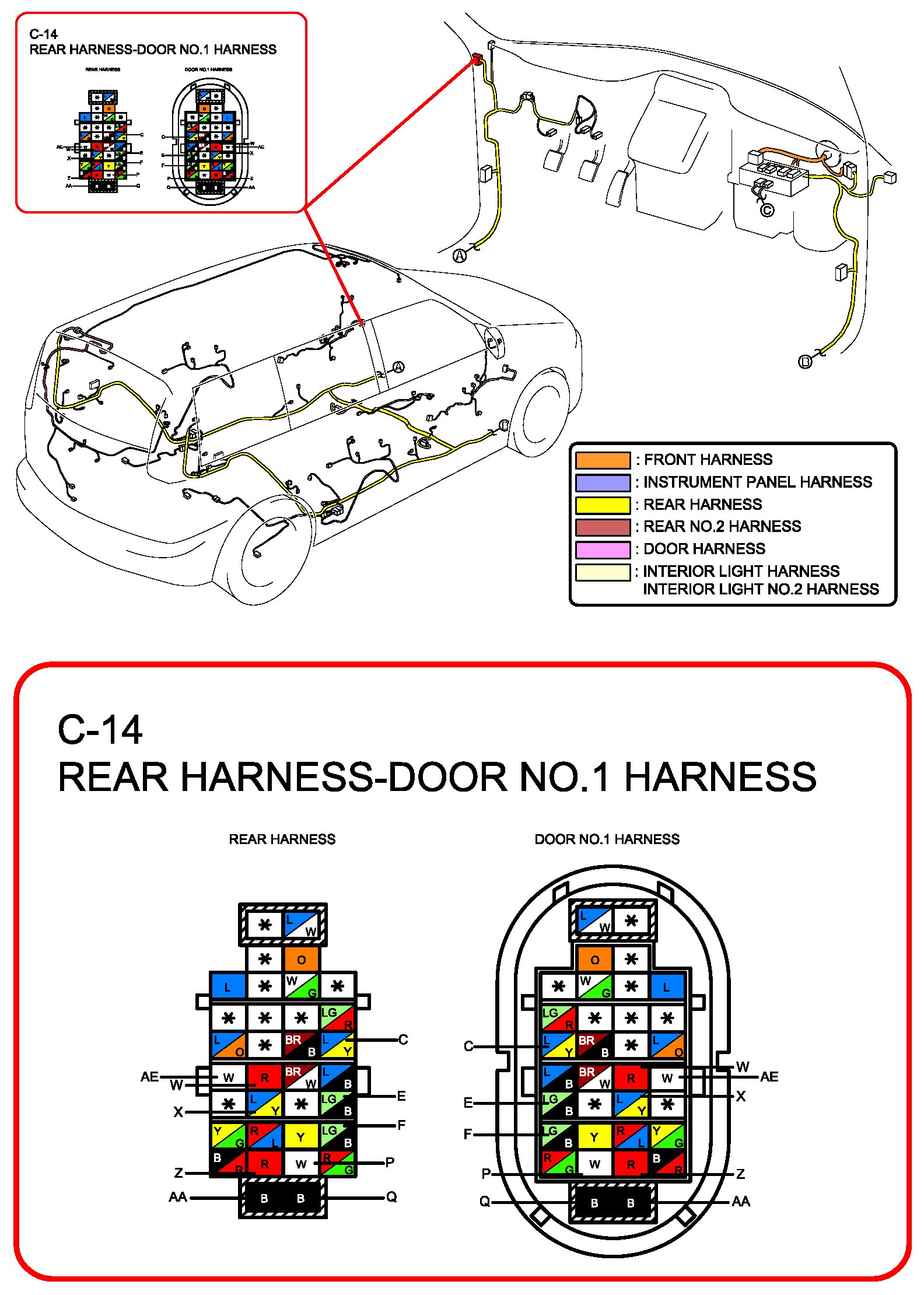

C-14 (Rear Harness-Door No. 1 Harness)
C-14 (Rear Harness-Door No. 1 Harness)
C-14 (Rear Harness-Door No. 1 Harness):
