Instrument Panel Illumination

Diagram 0918-9a:




Connectors 0918-9a:




Routing View 0918-9a:






Diagram 0918-9b:




Connectors 0918-9b:




Routing View 0918-9b:

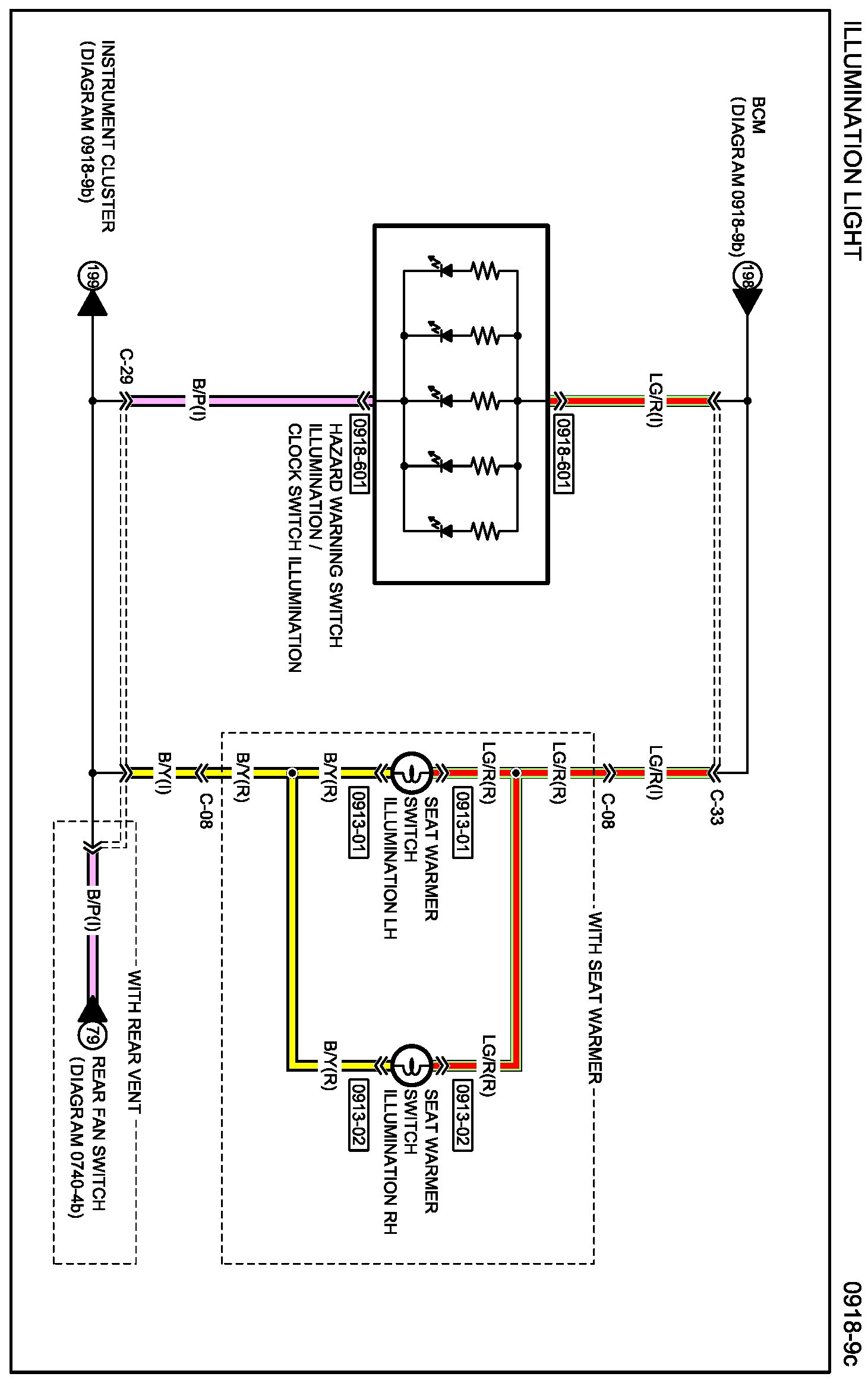

Diagram 0918-9c:

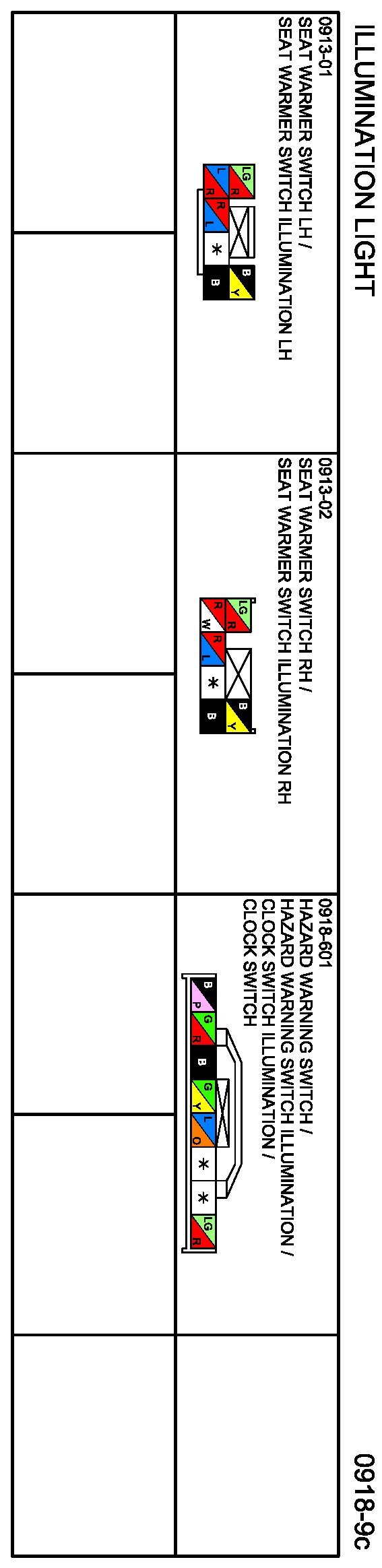

Connectors 0918-9c:

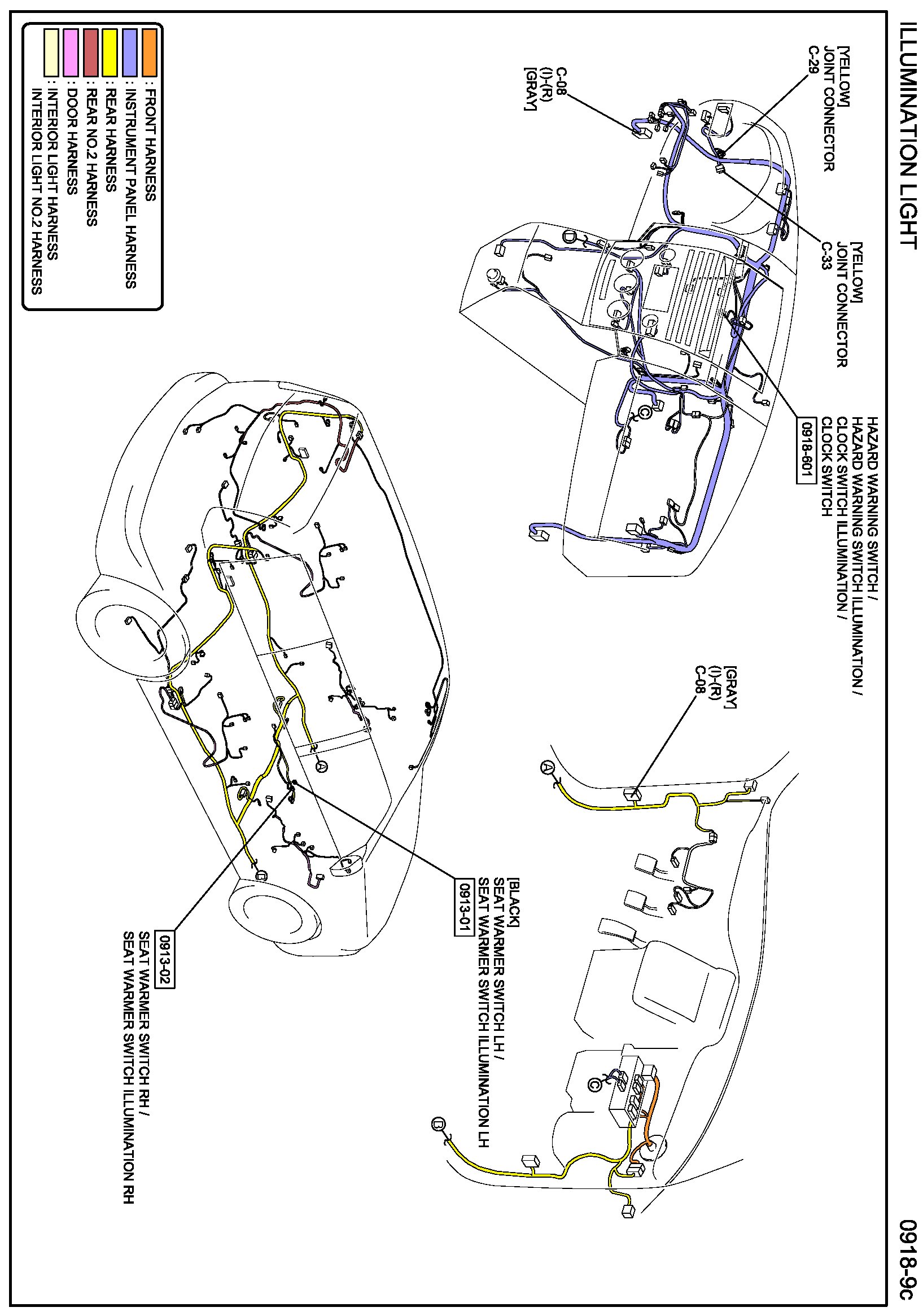

Routing View 0918-9c:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
