No.6 Brake System Warning Light Stays on 4 S or More When the Ignition Switch Is Turned to the on Position (Parking Brake Is RE

NO.6 BRAKE SYSTEM WARNING LIGHT STAYS ON 4 S OR MORE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION (PARKING BRAKE IS RELEASED)

No.6 Brake System Warning Light Stays on 4 S or More When the Ignition Switch Is Turned to the on Position (Parking Brake Is Released):

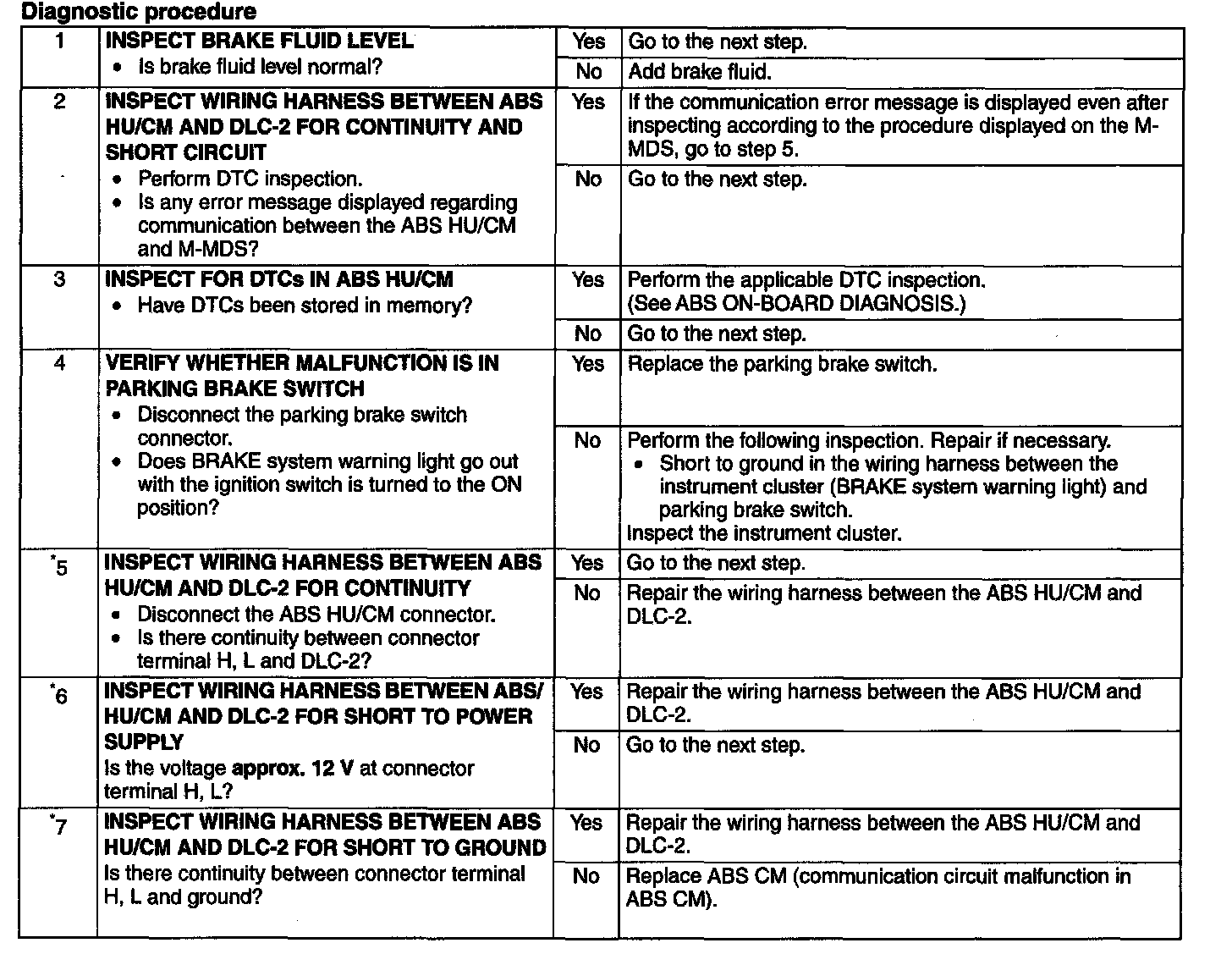

Diagnostic procedure

Step 1-Step 7:
