No.4 Both ABS Warning Light and Brake System Warning Light Stay on 4 S or More When the Ignition Switch Is Turned to the on POS

NO.4 BOTH ABS WARNING LIGHT AND BRAKE SYSTEM WARNING LIGHT STAY ON 4 S OR MORE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION

No.4 Both ABS Warning Light and Brake System Warning Light Stay on 4 S or More When the Ignition Switch Is Turned to the on Position:

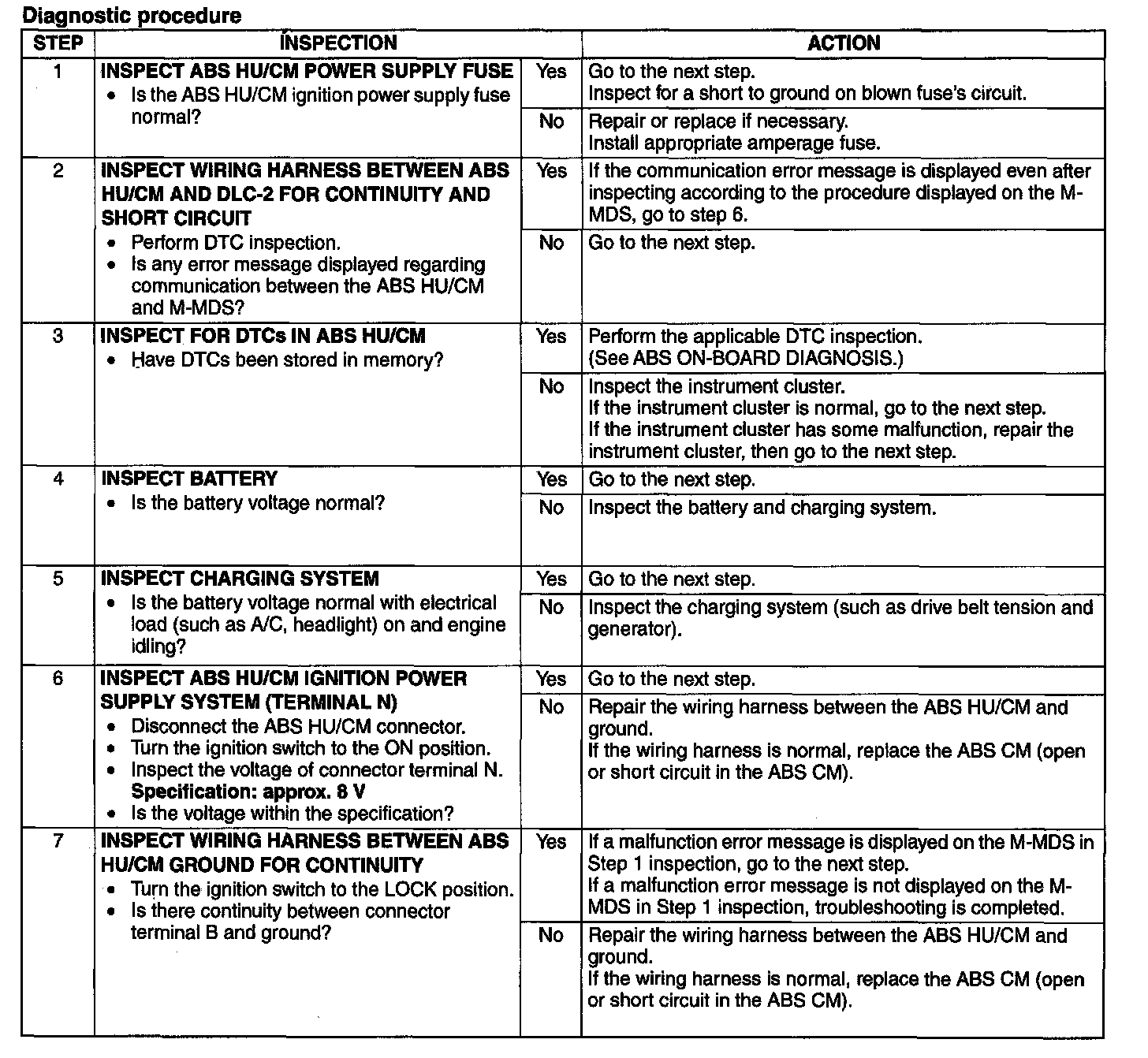

Diagnostic procedure

Step 1-Step 7:




Step 8-Step 10:
