Home >> Mazda >> 2008 >> 5 L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Paint, Striping and Decals >> Paint >> Locations

Paint: Locations

CHIPPING-RESISTANT COATING

The coating locations are indicated by the shaded areas.

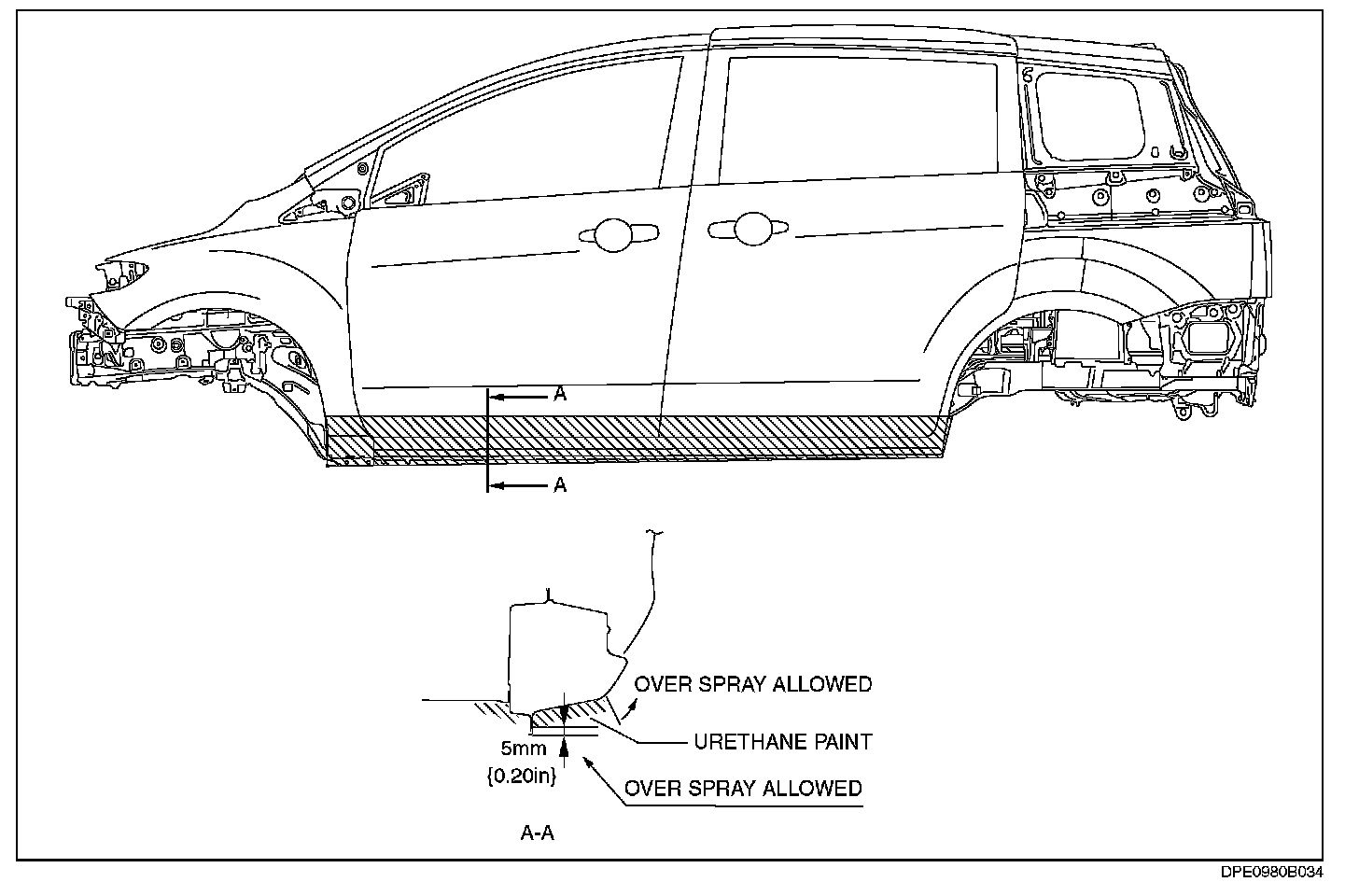

With Side Step Molding

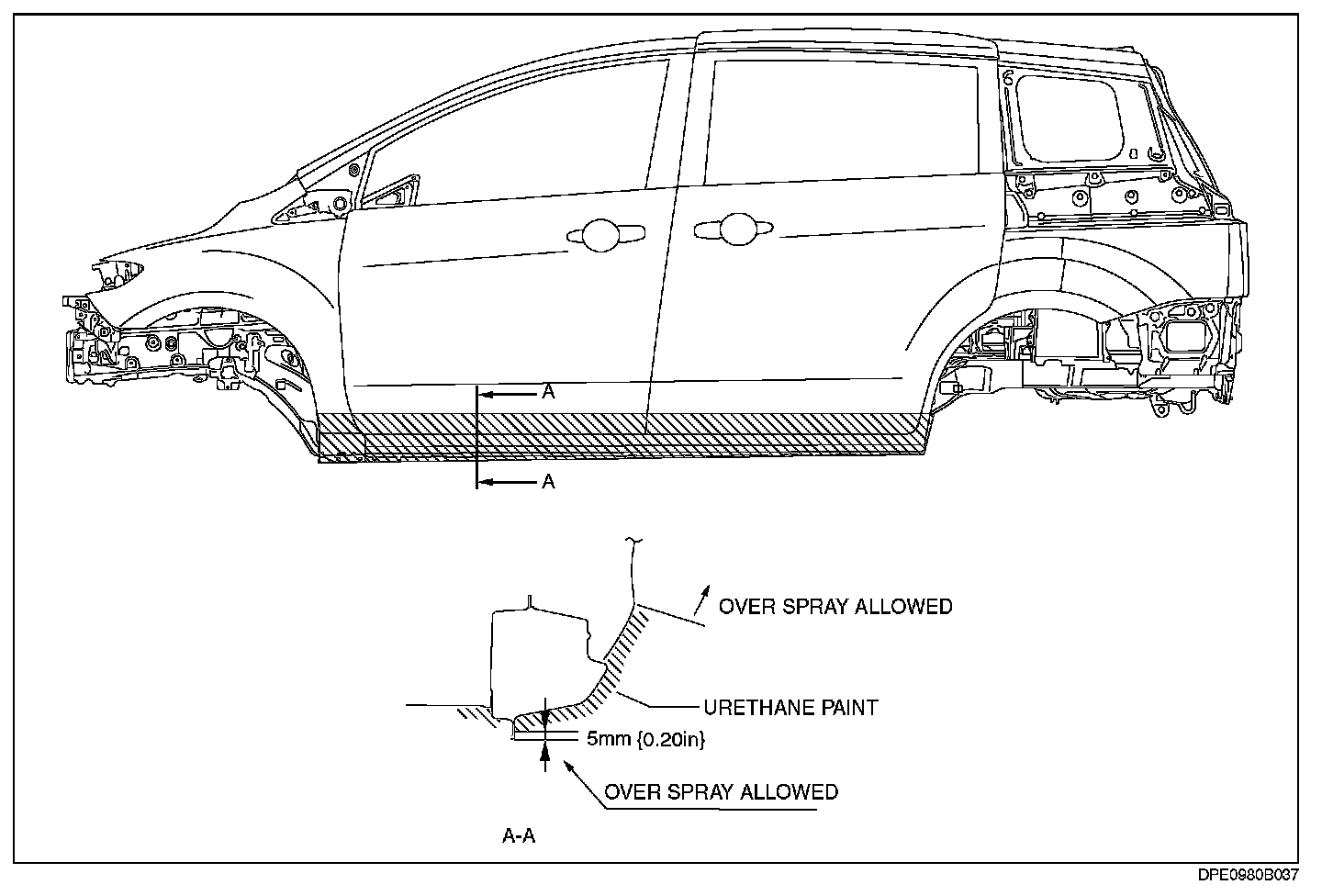

Without Side Step Molding
