Rear Antenna Feeder
REAR ANTENNA FEEDER REMOVAL/INSTALLATIONRear Antenna Feeder No.1
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. A-pillar trim.
2. Front scuff plate inner.
3. Rear scuff plate.
4. B-pillar lower trim.
5. Front seat belt upper anchor installation bolt.
6. B-pillar upper trim.
7. Rear package tray lid.
8. Sub-trunk
9. Third-row seat (7-passenger model).
10. Rear header trim.
11. Trunk end trim.
12. Third-row seat belt lower anchor installation bolt (7-passenger model).
13. Cargo compartment light.
14. Trunk side trim.
15. Second-row seat belt upper anchor installation bolt.
16. C-pillar trim.
17. Map light.
18. Assist handle.
19. Sunvisor.
20. Headliner.

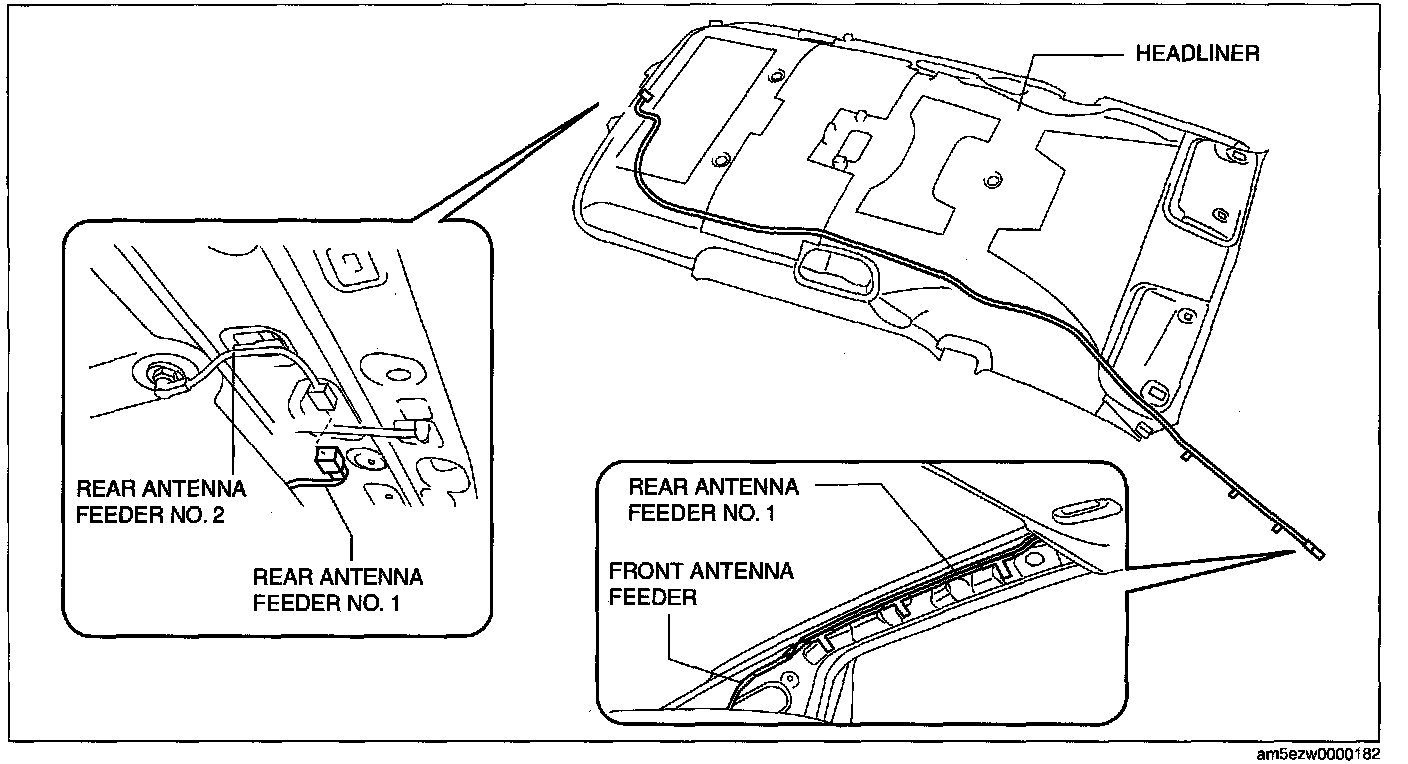

3. Remove the rear antenna feeder No.1 from the headliner.
4. Install the new rear antenna feeder No.1 to the headliner.
5. Install in the reverse order of removal.
Rear Antenna Feeder No.2
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Rear package tray lid.
2. Third-row seat.
3. Rear scuff plate.
4. Trunk end trim.
5. Lower anchor of the third-row seat belt.
6. Cargo compartment light.
7. Trunk side trim.
8. Rear header trim.
9. Upper anchor of the second-row seat belt.
10. C-pillar trim.
3. Partially peel back the headliner.

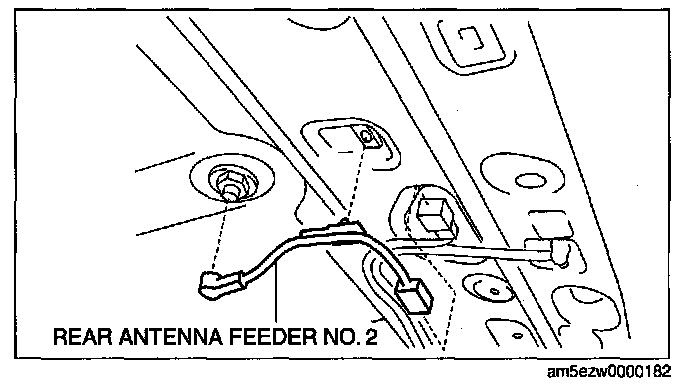

4. Remove the Rear antenna feeder No.2.
5. Install in the reverse order of removal.
