No.2 Excessive Noise From Electric Power Steering Oil Pump [Electro Hydraulic Power Assist Steering (EHPAS)

No.2 Excessive Noise From Electric Power Steering Oil Pump [Electro Hydraulic Power Assist Steering (EHPAS)

No.2 Excessive Noise From Electric Power Steering Oil Pump [Electro Hydraulic Power Assist Steering (EHPAS):

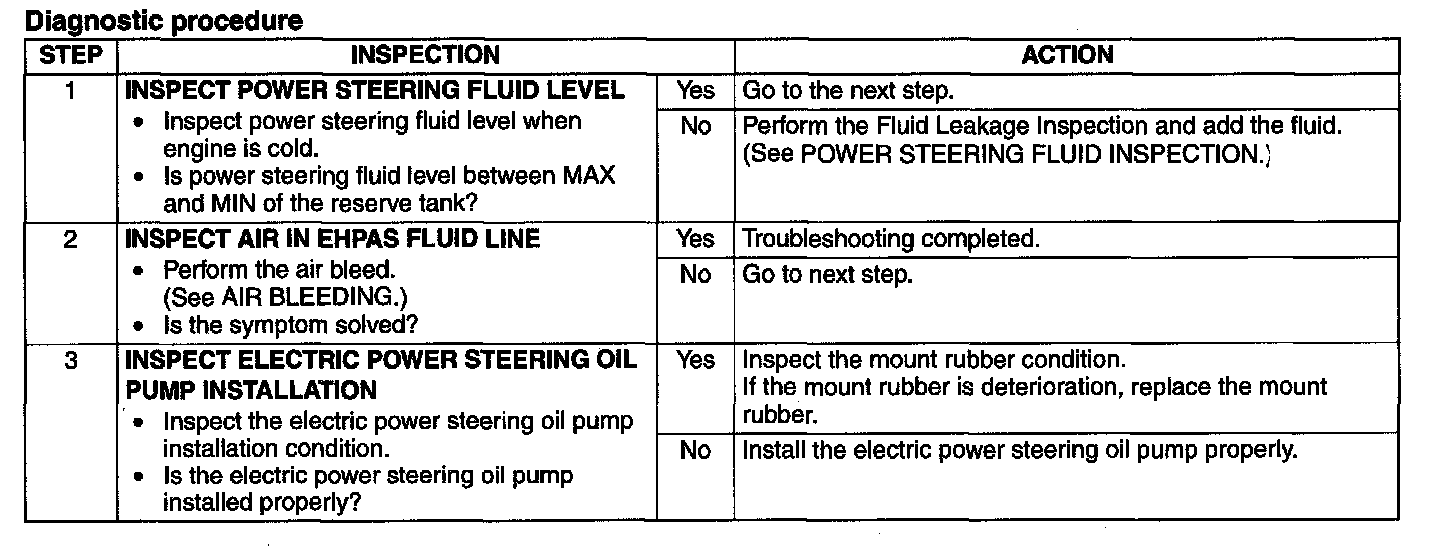

Diagnostic procedure

Step 1-Step 3:
