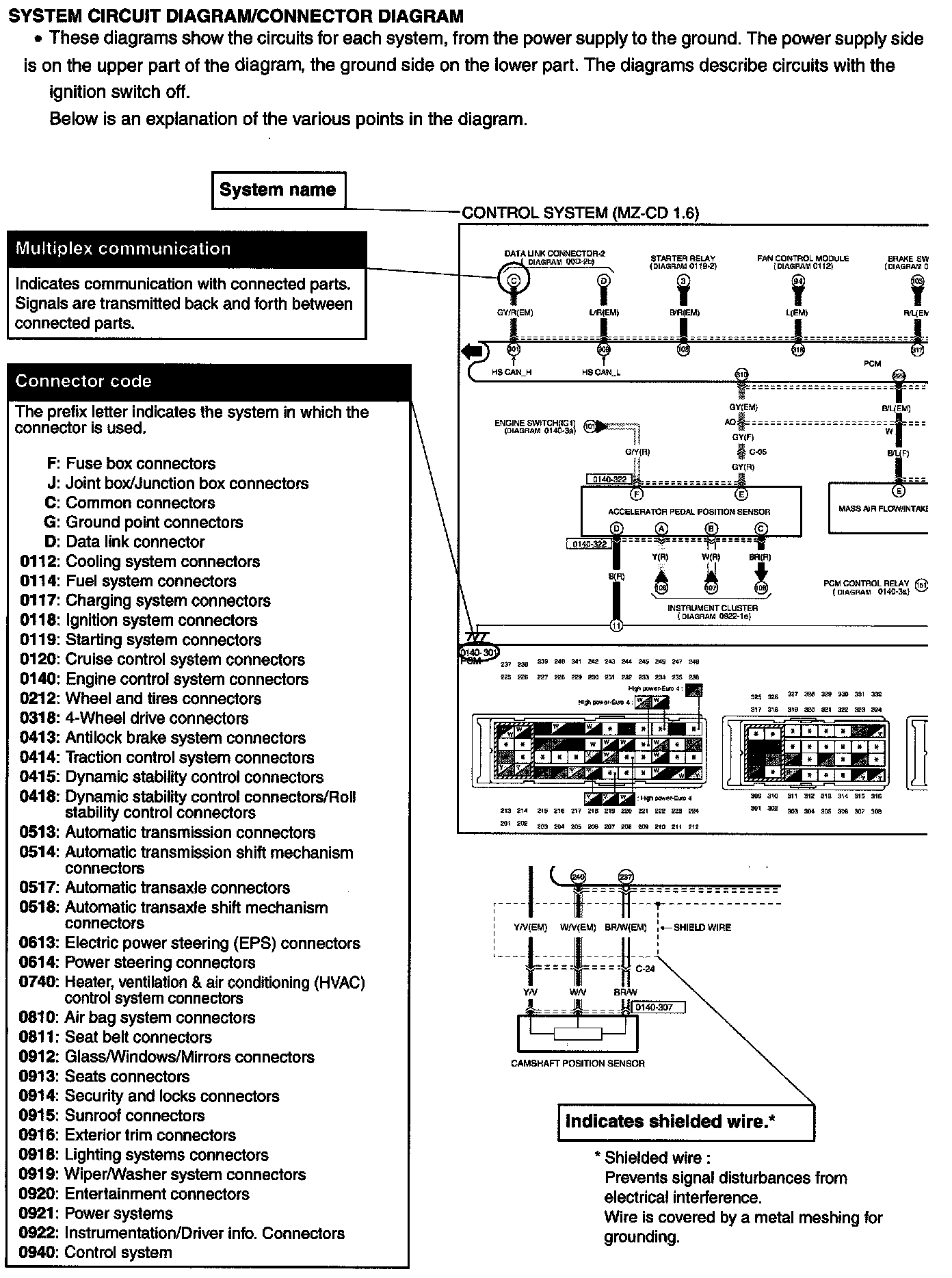

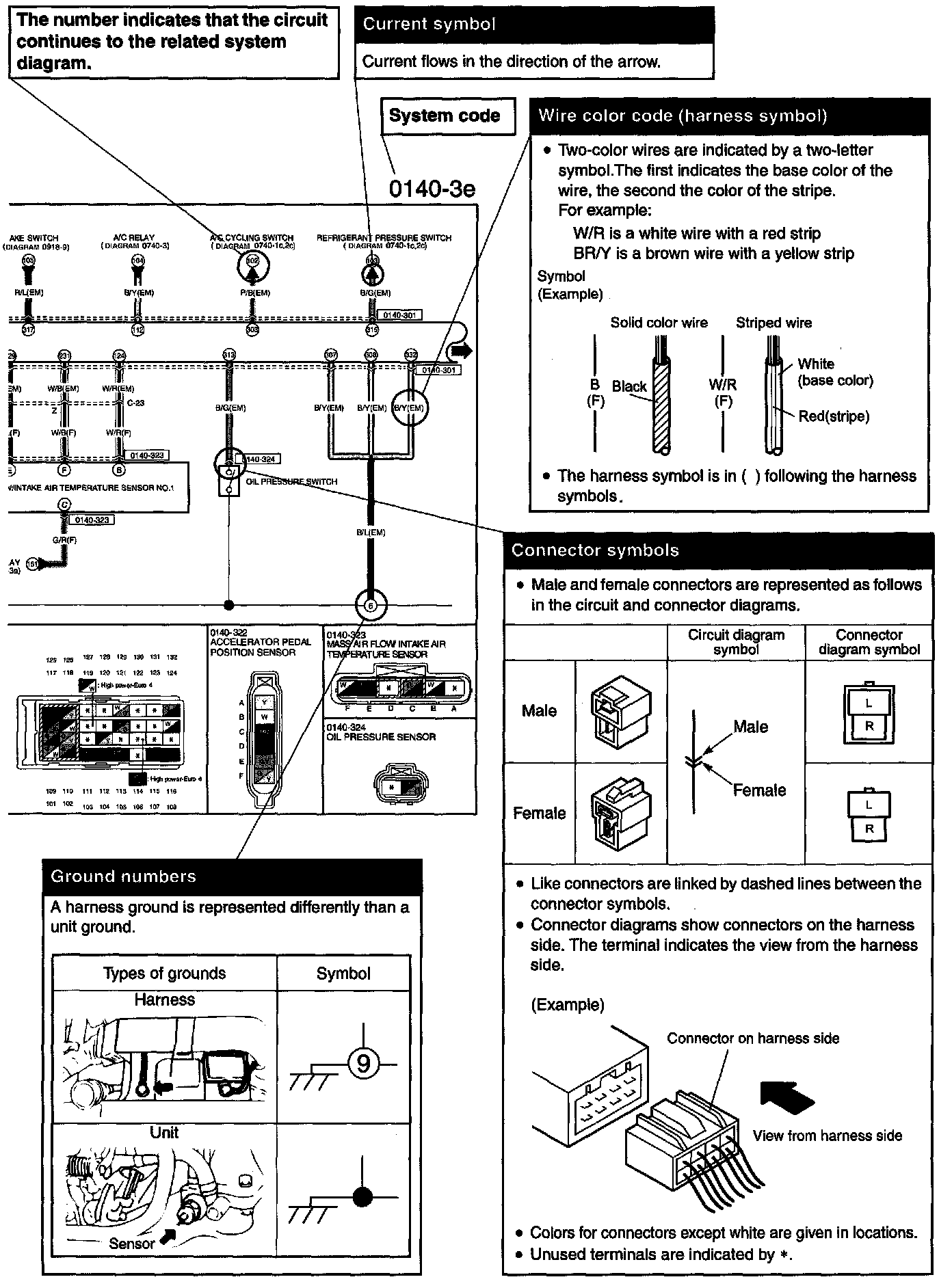

Home >> Mazda >> 2008 >> 3 L4-2.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Diagram Information and Instructions >> How To Read System Circuit Diagrams
