No.1 Any of the Following Lights Do Not Illuminate When the Ignition Switch Is Turned to the on Position: (ABS Warning Light, B

NO.1 ANY OF THE FOLLOWING LIGHTS DO NOT ILLUMINATE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION: (ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND/OR DSC OFF LIGHT) [DYNAMIC STABILITY CONTROL (DSC)]

No.1 Any of the Following Lights Do Not Illuminate When the Ignition Switch Is Turned to the on Position: (ABS Warning Light, Brake System Warning Light, DSC Indicator Light And/or DSC Off Light) [Dynamic Stability Control (DSC)]:

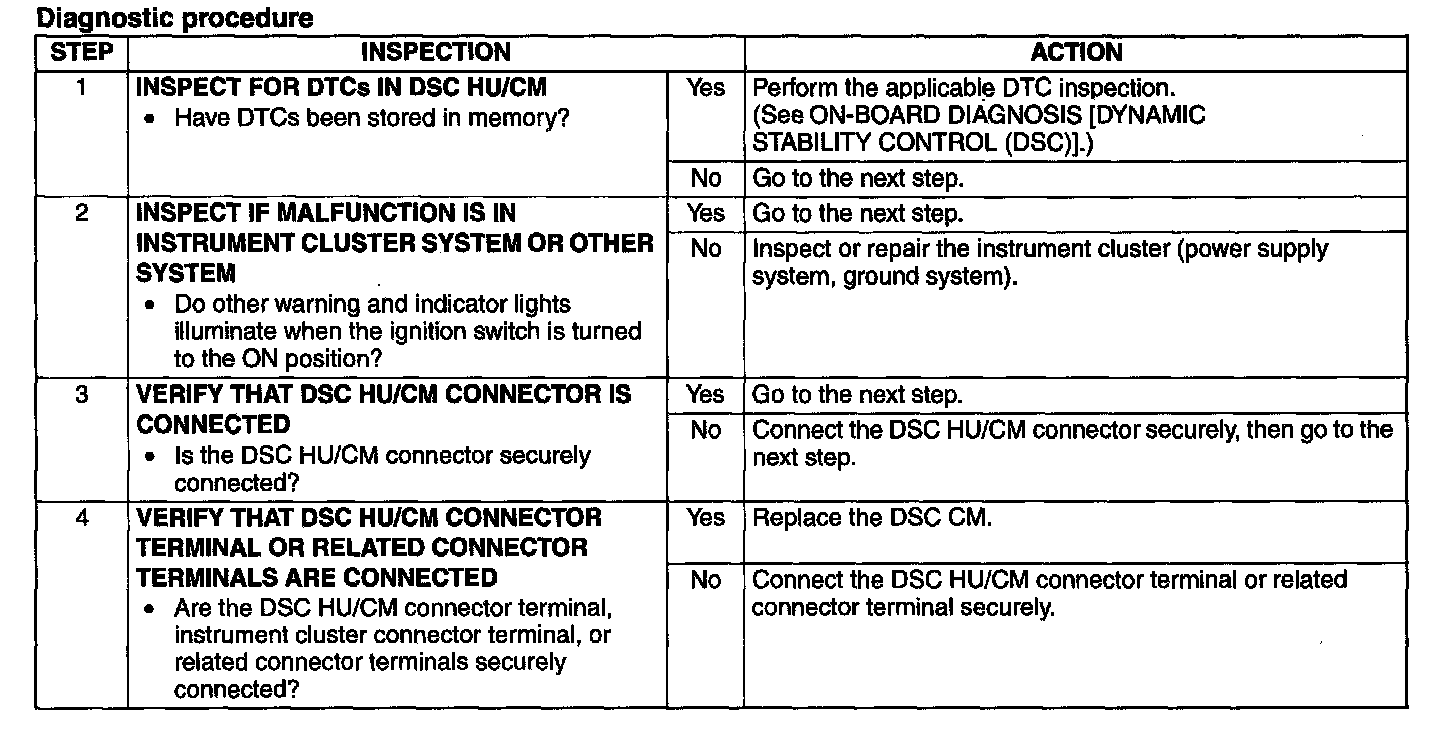

Diagnostic procedure

Step 1-Step 4:
