Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Engine >> Oil Pressure Sender >> Locations

Oil Pressure Sender: Locations

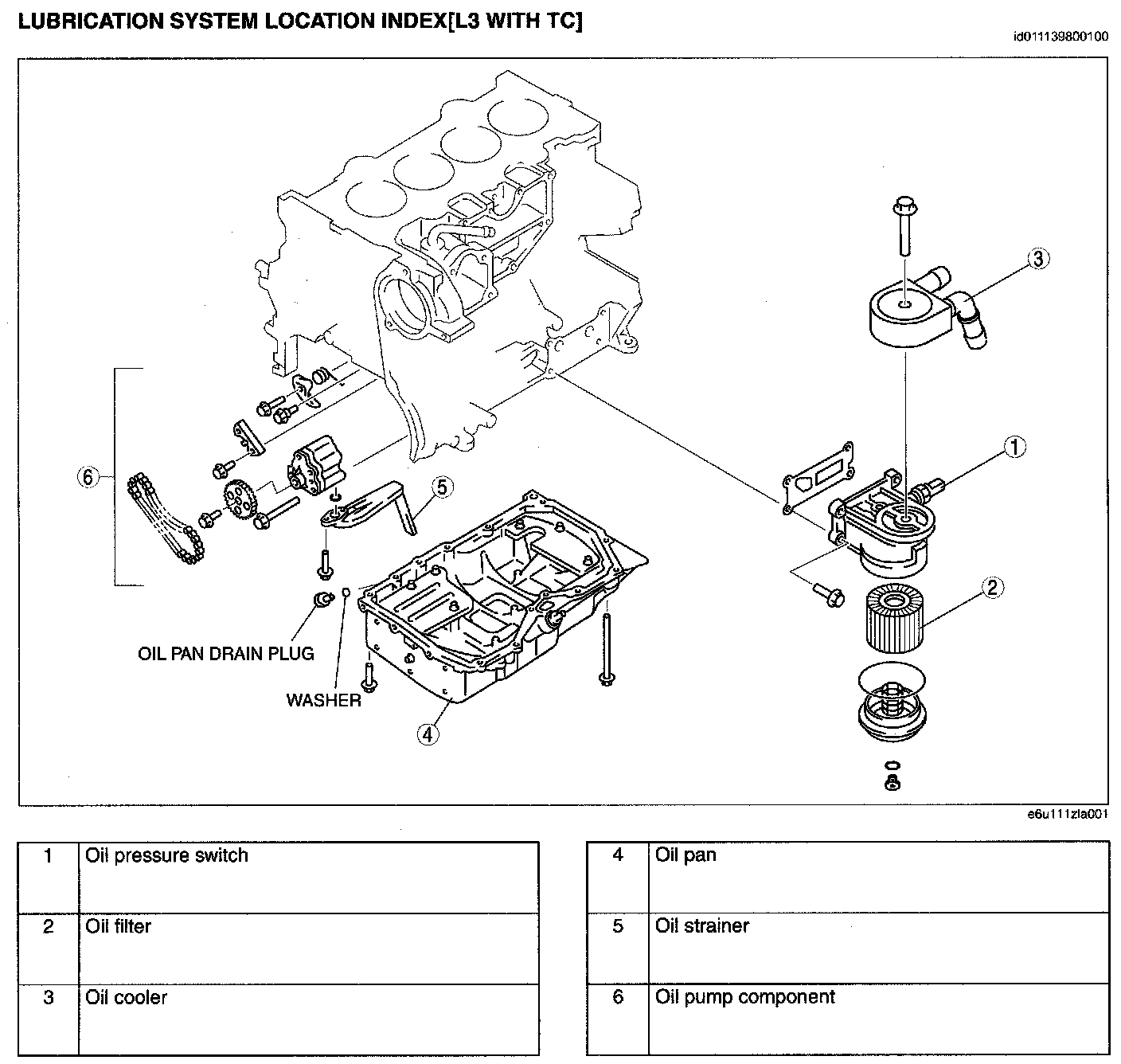

Lubrication System Location Index (L3 With TC):
