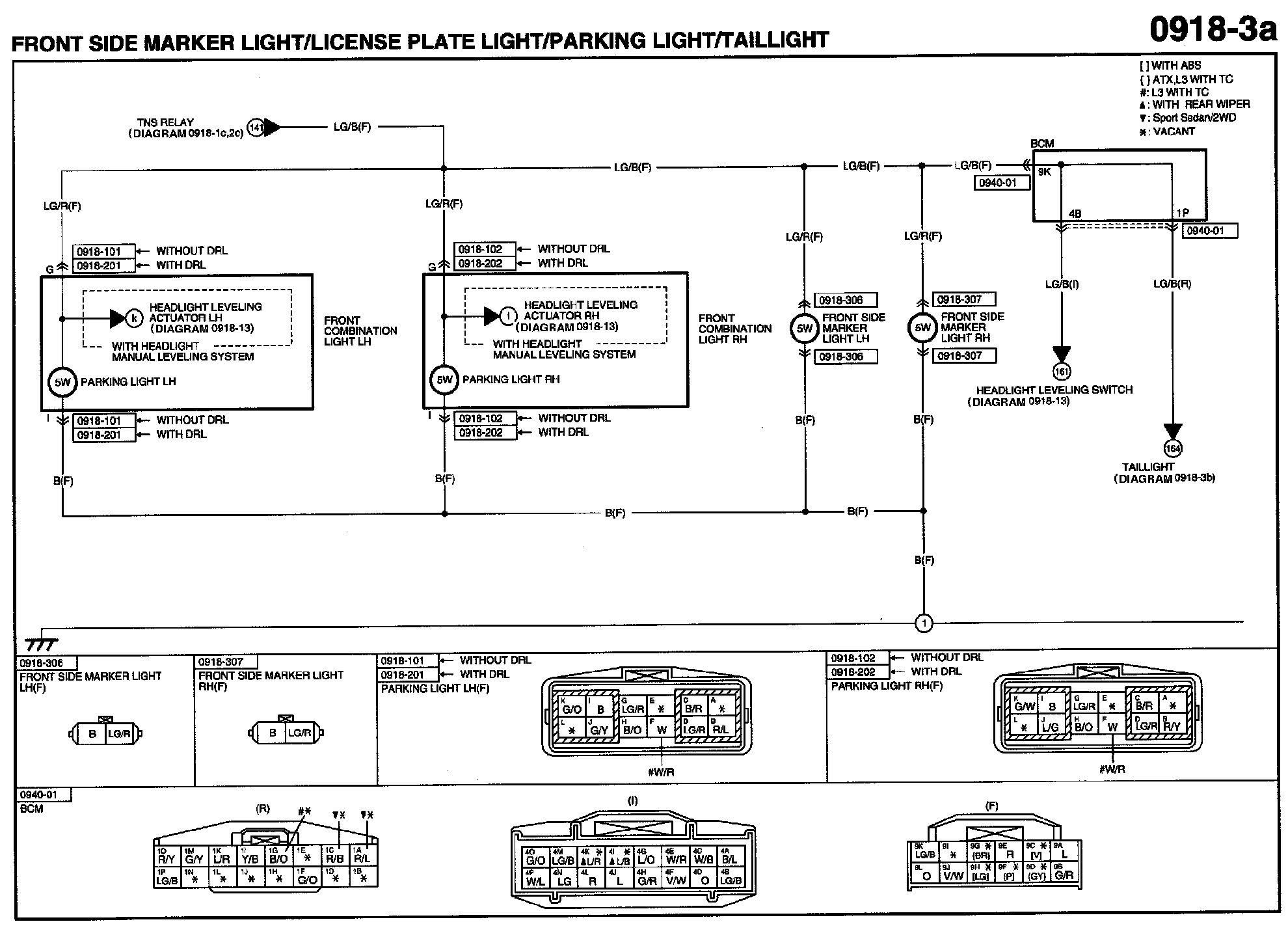

Diagram 0918-3a (Front Side Marker Light/License Plate Light/Parking Light/Taillight)

Diagram 0918-3a:
