P0817

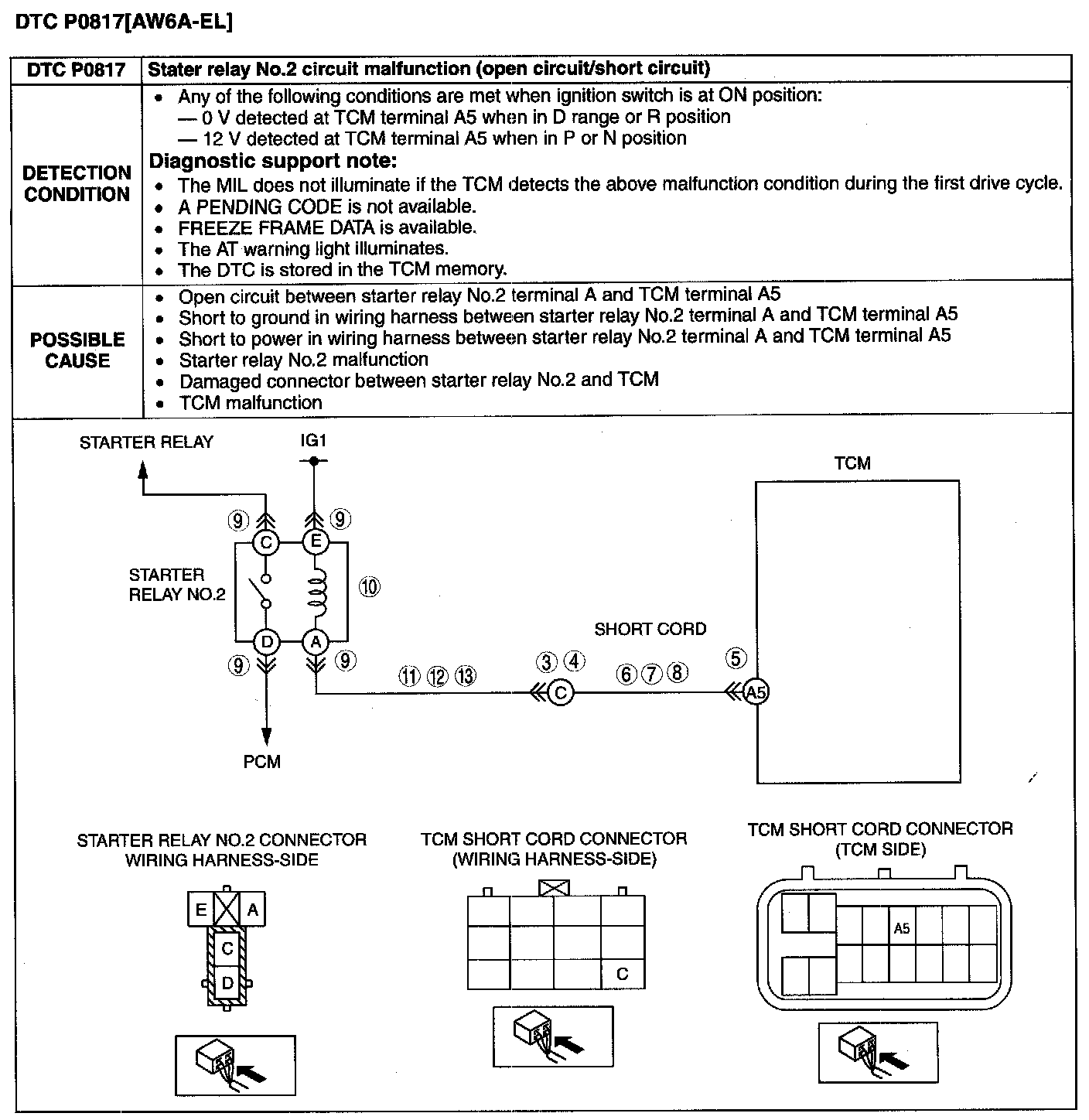

DTC P0817 [AW6A-EL]

DTC P0817 [AW6A-EL]:





Diagnostic Procedure

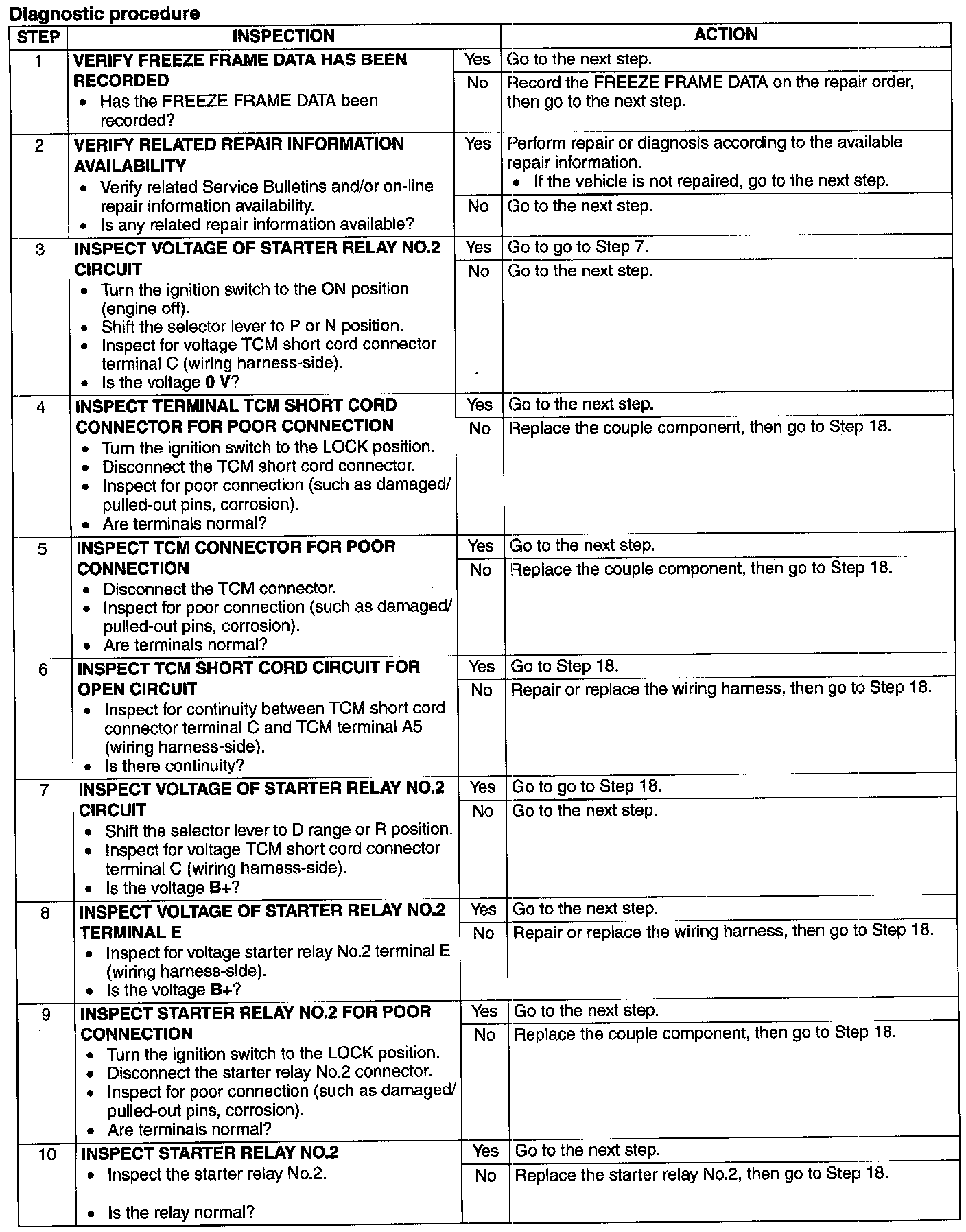

Step 1-Step 10:

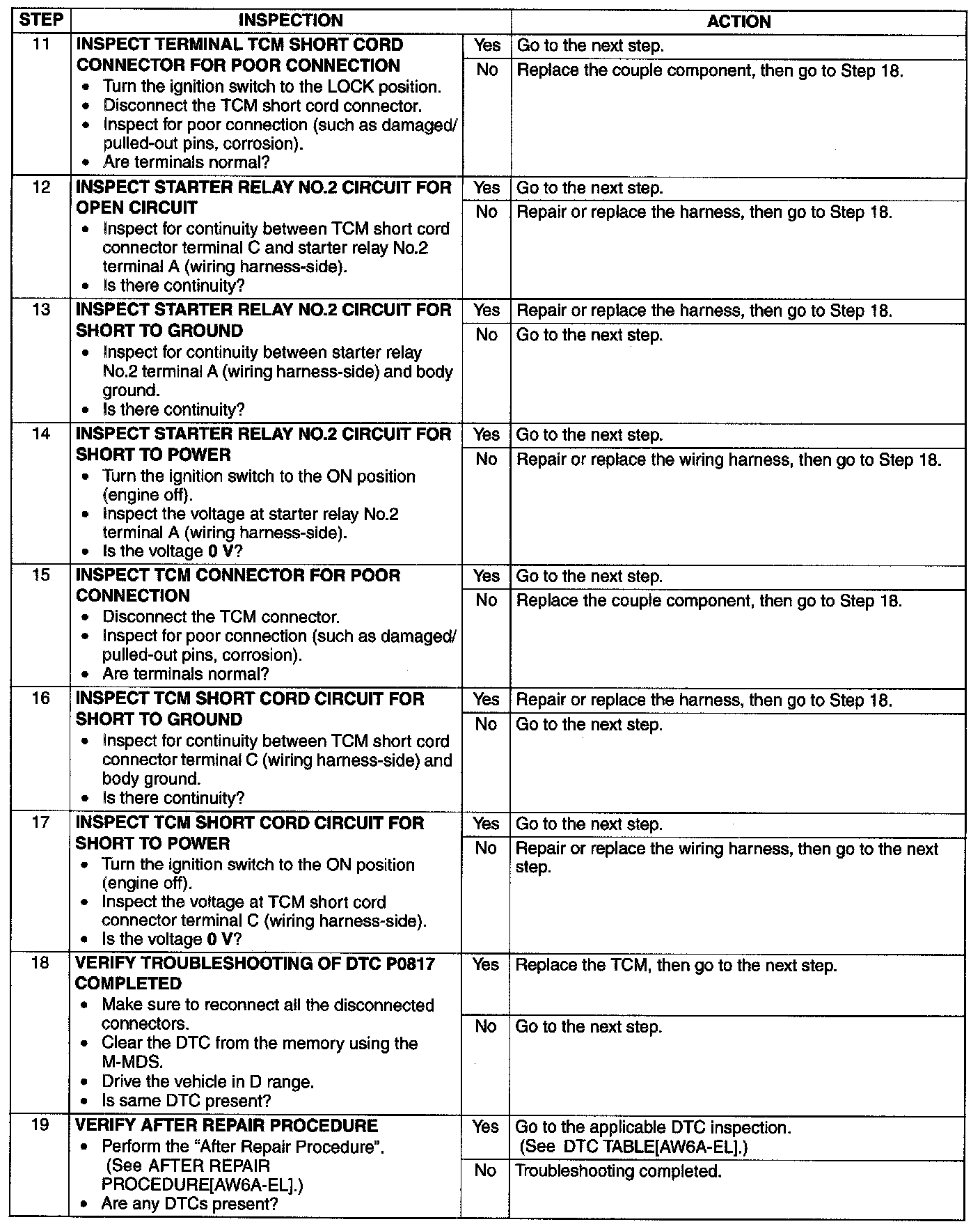

Step 11-Step 19:
