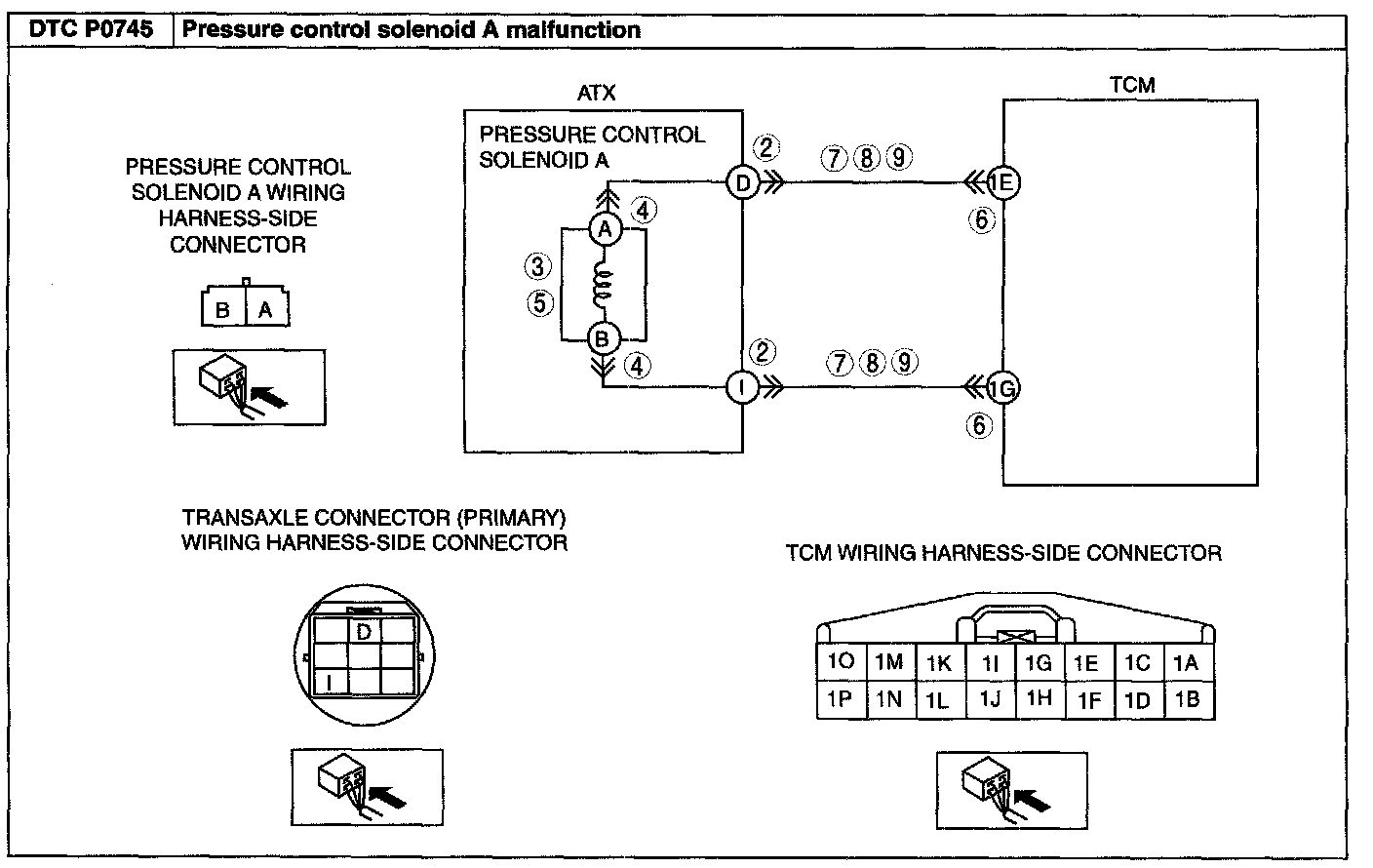

DTC P0745 [FS5A-EL]

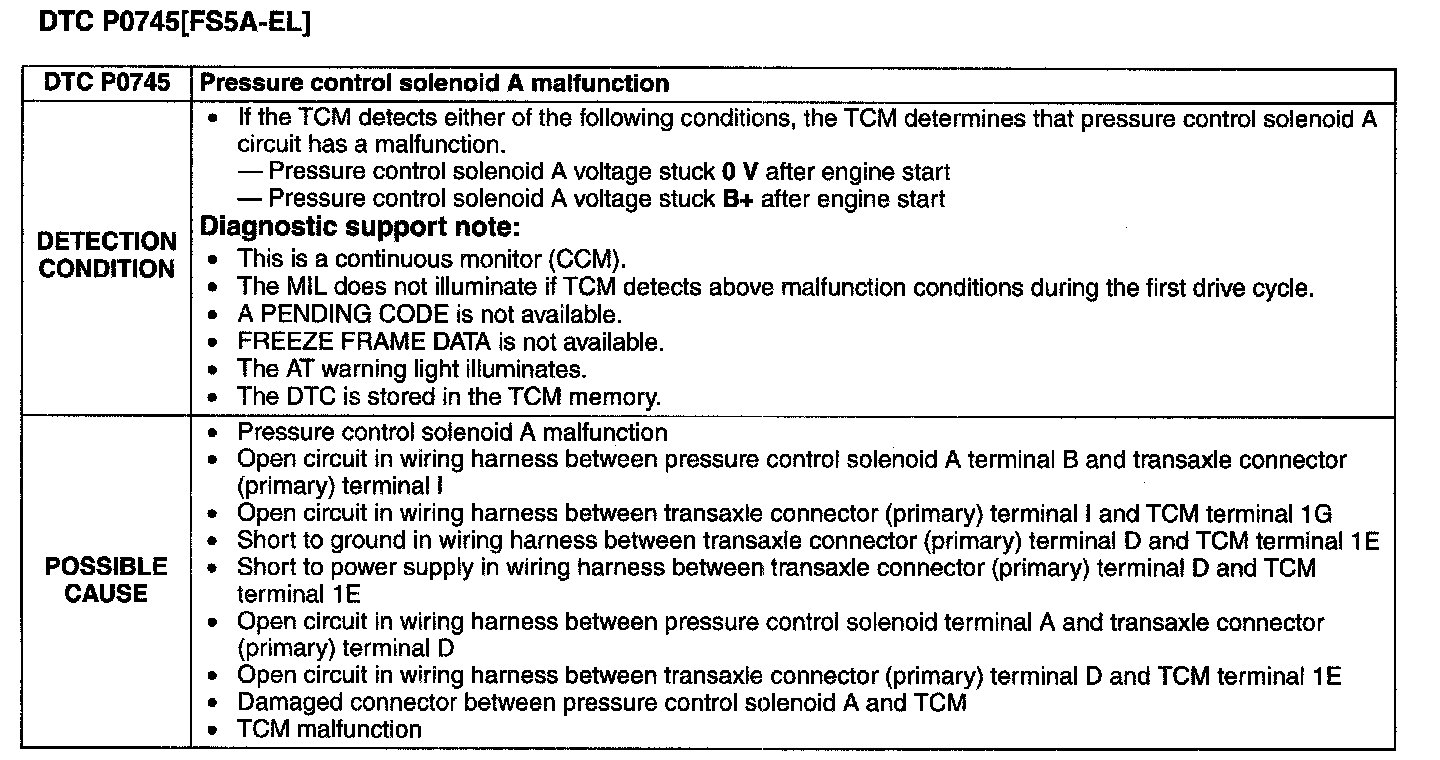

DTC P0745 [FS5A-EL] (Part 1):
DTC P0745 [FS5A-EL] (Part 2):
Diagnostic Procedure

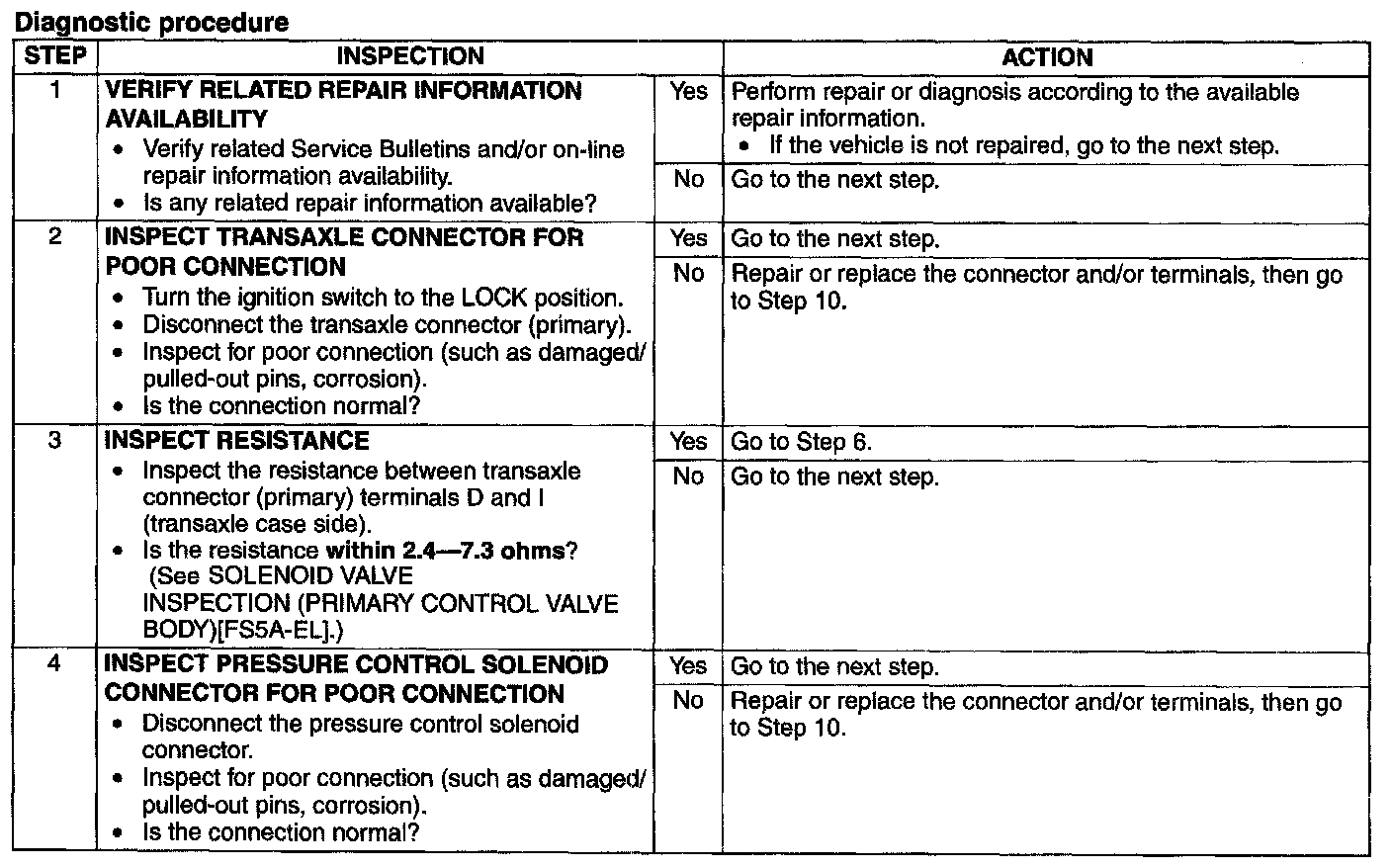

Step 1-Step 4:

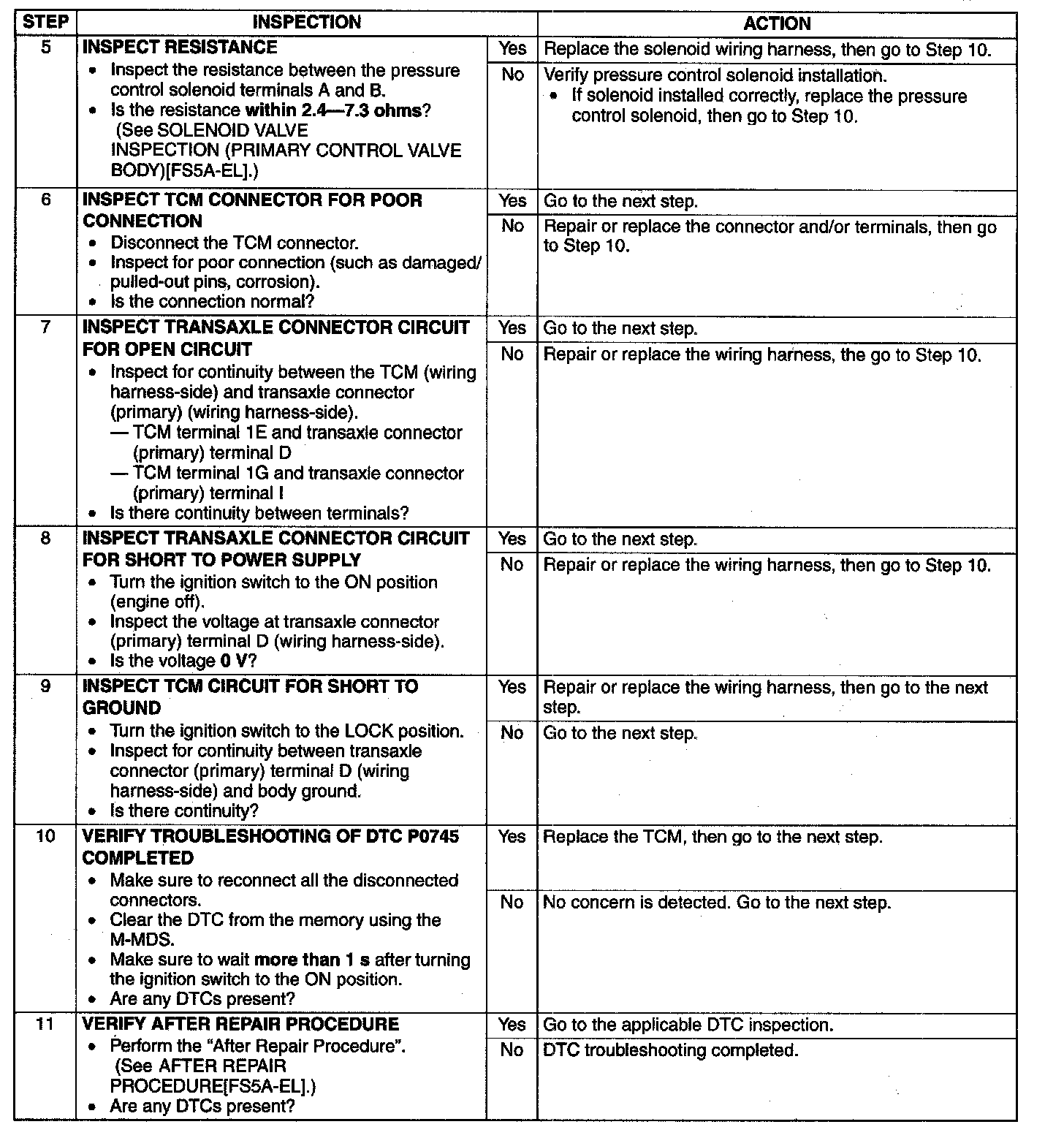

Step 5-Step 11:
