P0715

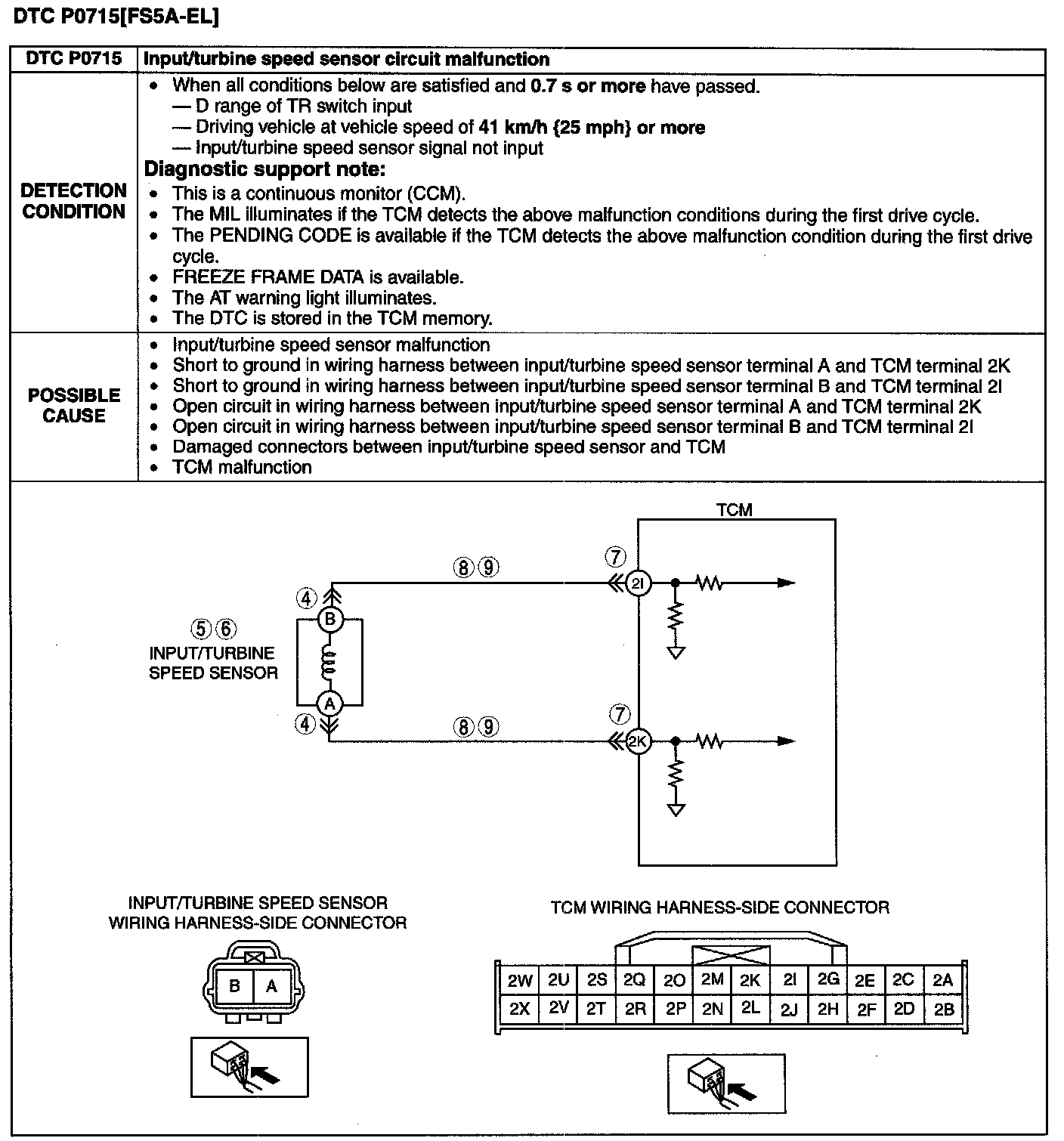

DTC P0715 [FS5A-EL]

DTC P0715 [FS5A-EL]:

Diagnostic Procedure

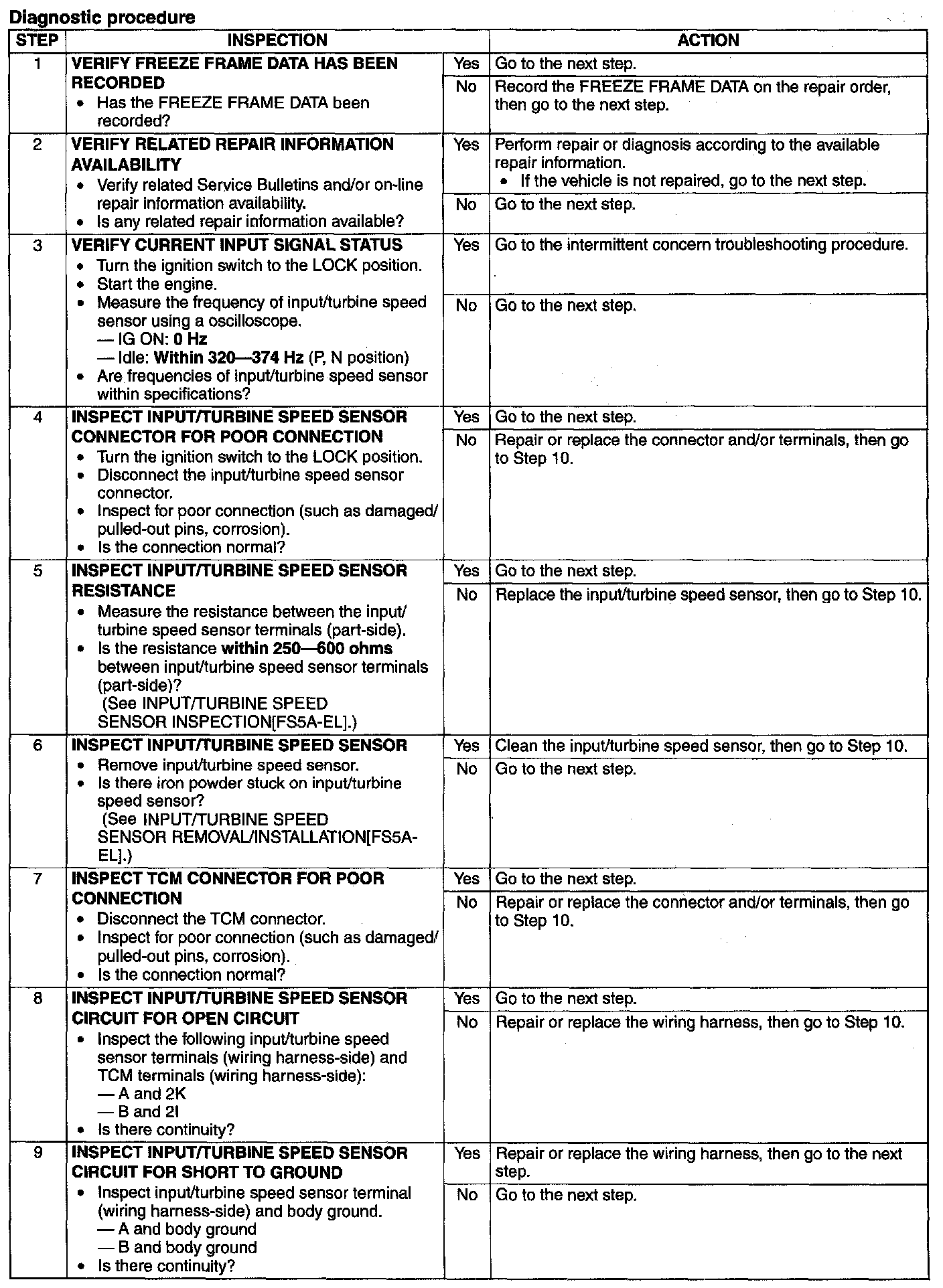

Step 1-Step 9:

Step 10-Step 11:
