Antilock Brake System Diagnosis

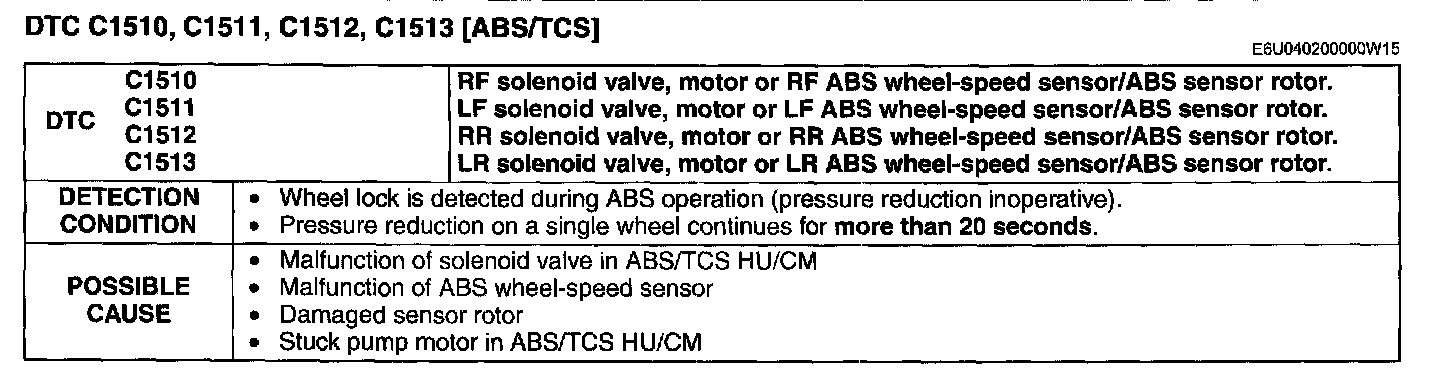

DTC C1510, C1511, C1512, C1513 [ABS/TCS]
C1510, C1511, C1512, C1513:

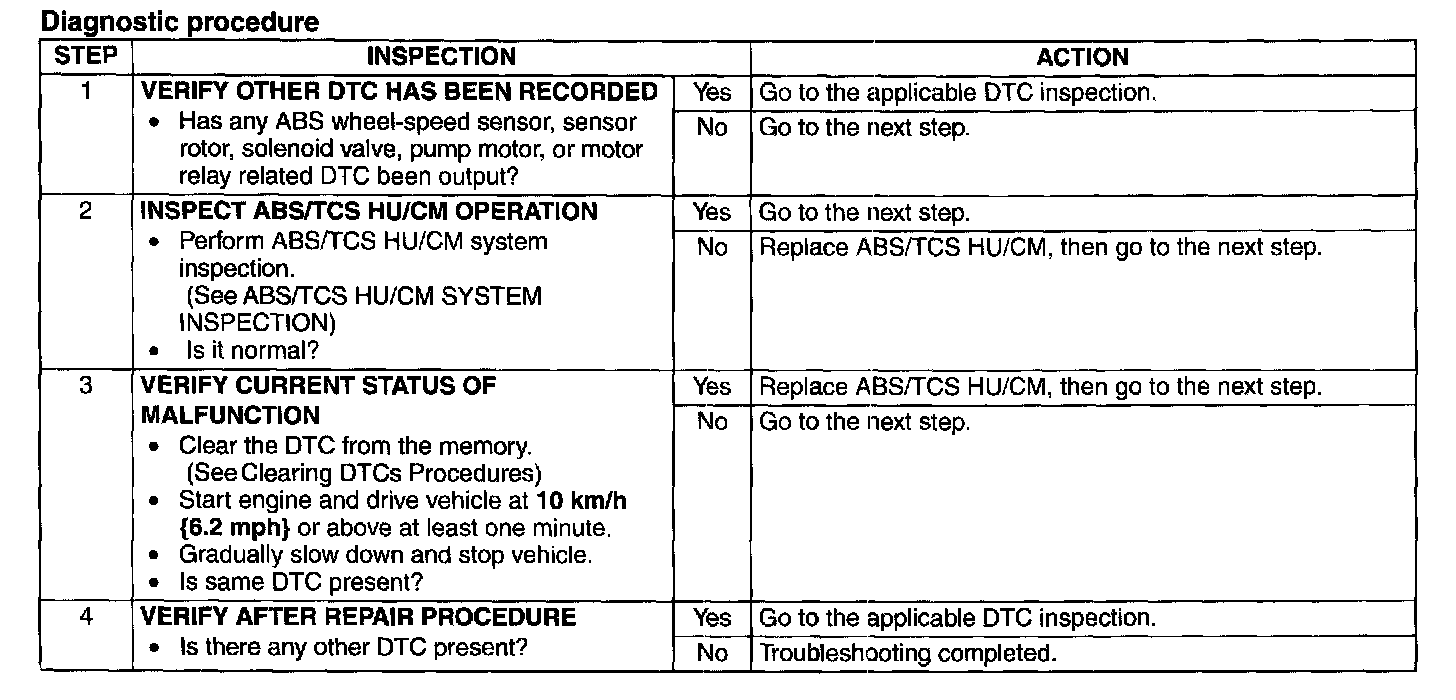

Diagnostic procedure
Step 1-Step 4:
