Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1158 >> Antilock Brake System Diagnosis

Antilock Brake System Diagnosis

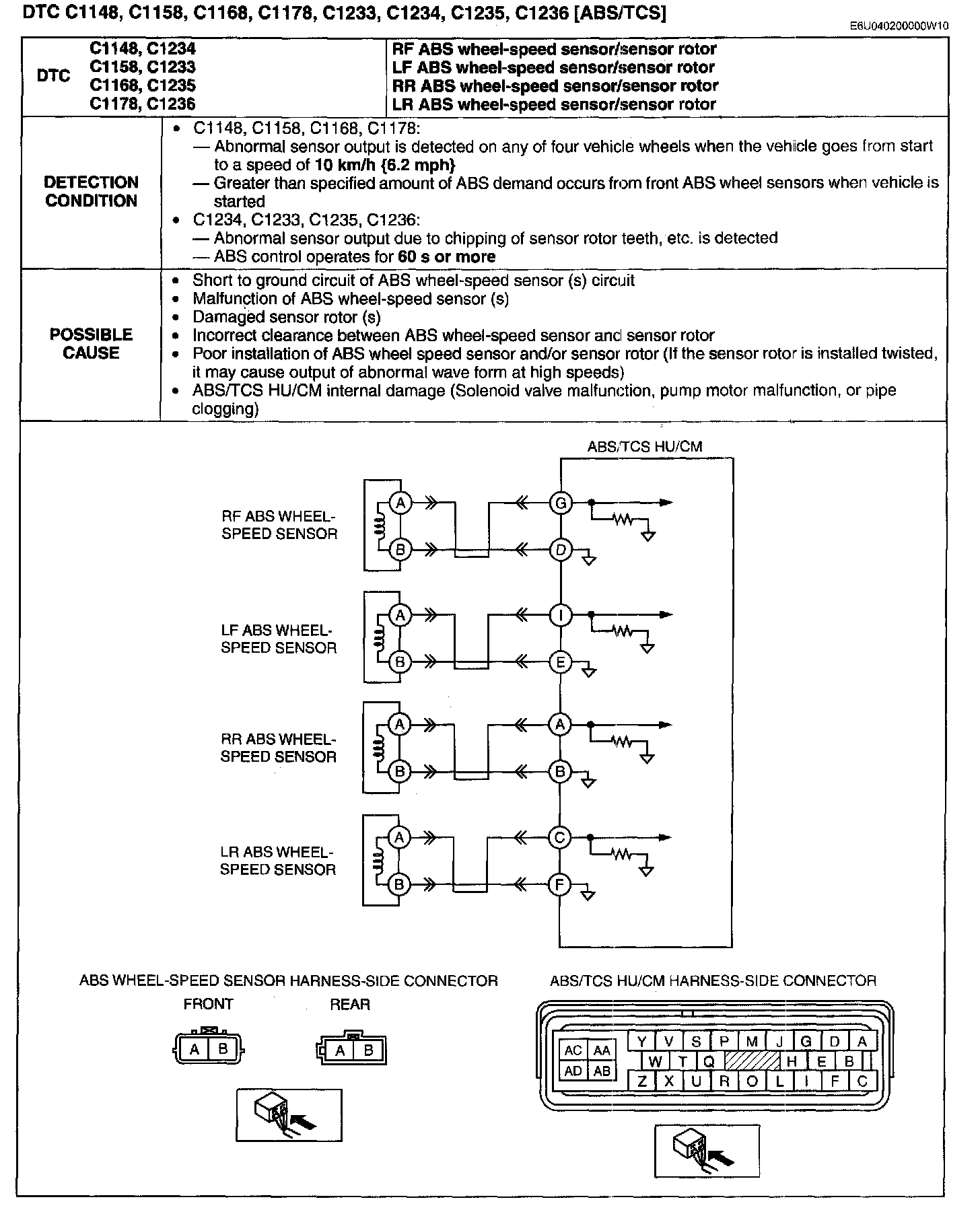

DTC C1148, C1158, C1168, C1178, C1233, C1234, C1235, C1236 [ABS/TCS]

C1148, C1158, C1168, C1178, C1233, C1234, C1235, C1236:





Diagnostic procedure

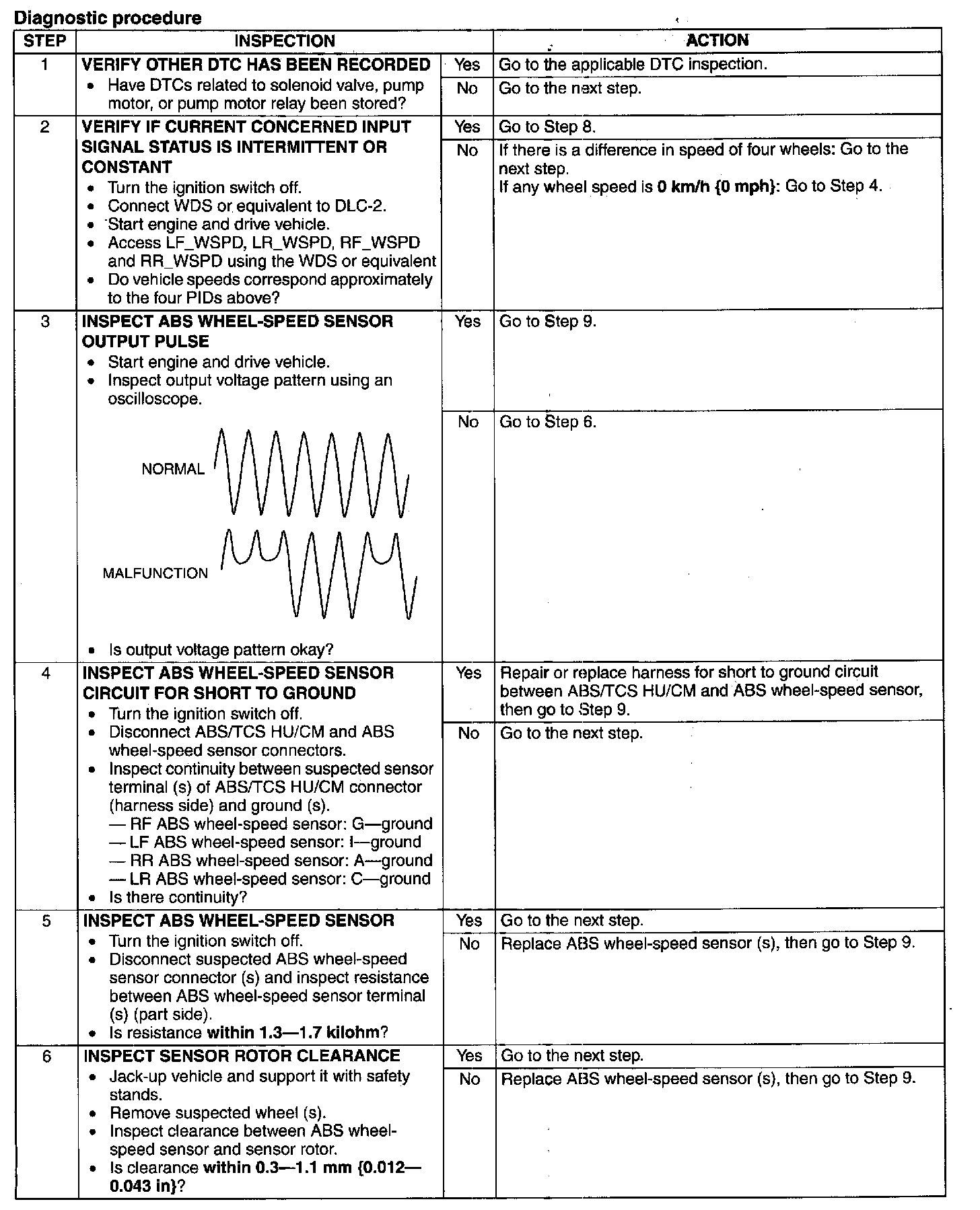

Step 1-Step 6:

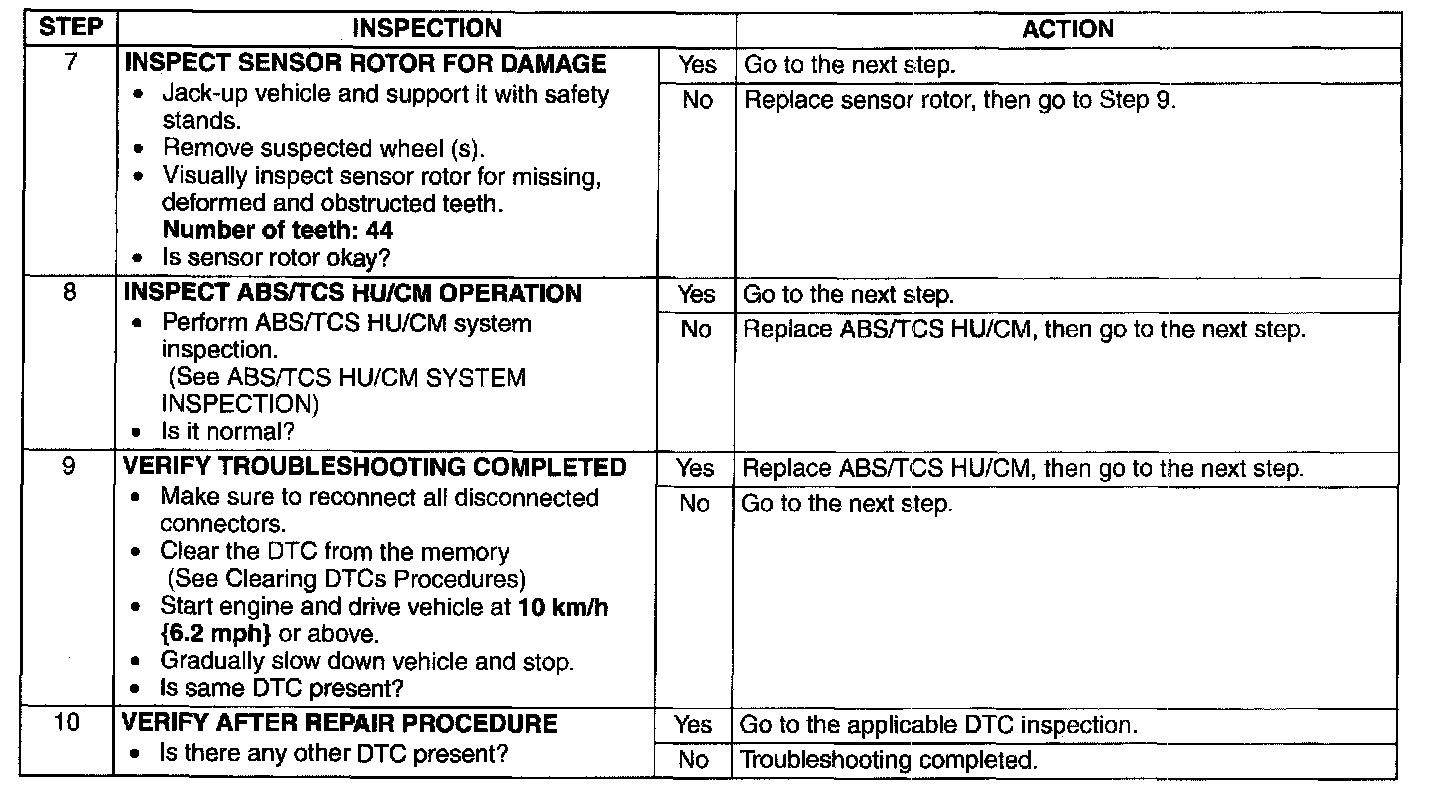

Step 7-Step 10:
