Gear Sensor/Switch: Locations

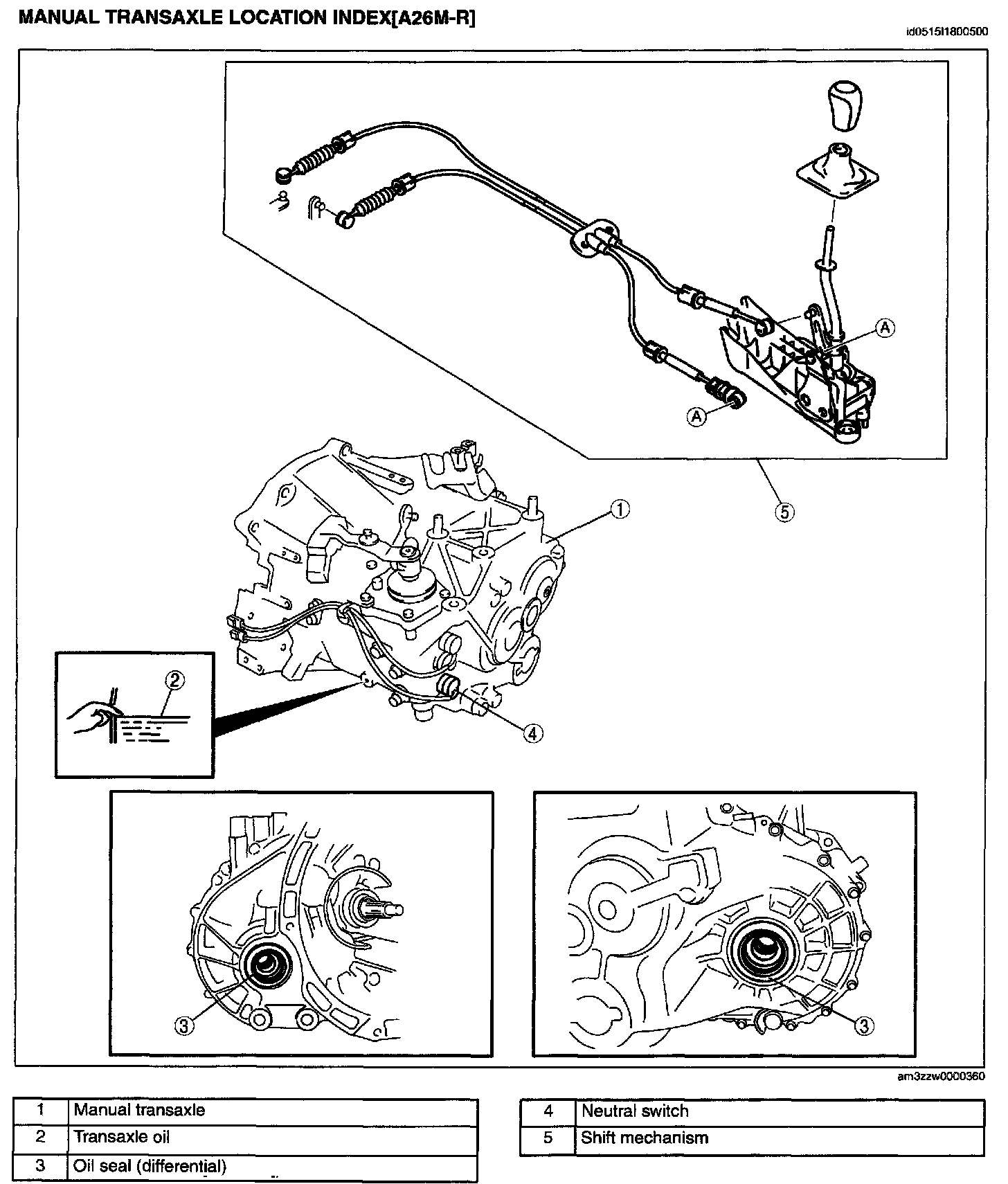

MANUAL TRANSAXLE LOCATION INDEX [A26M-R]

Manual Transaxle Location Index [A26M-R]:
