System Wiring Diagram Electro Hydraulic Power Assist Steering (EHPAS)

SYSTEM WIRING DIAGRAM [ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS)]

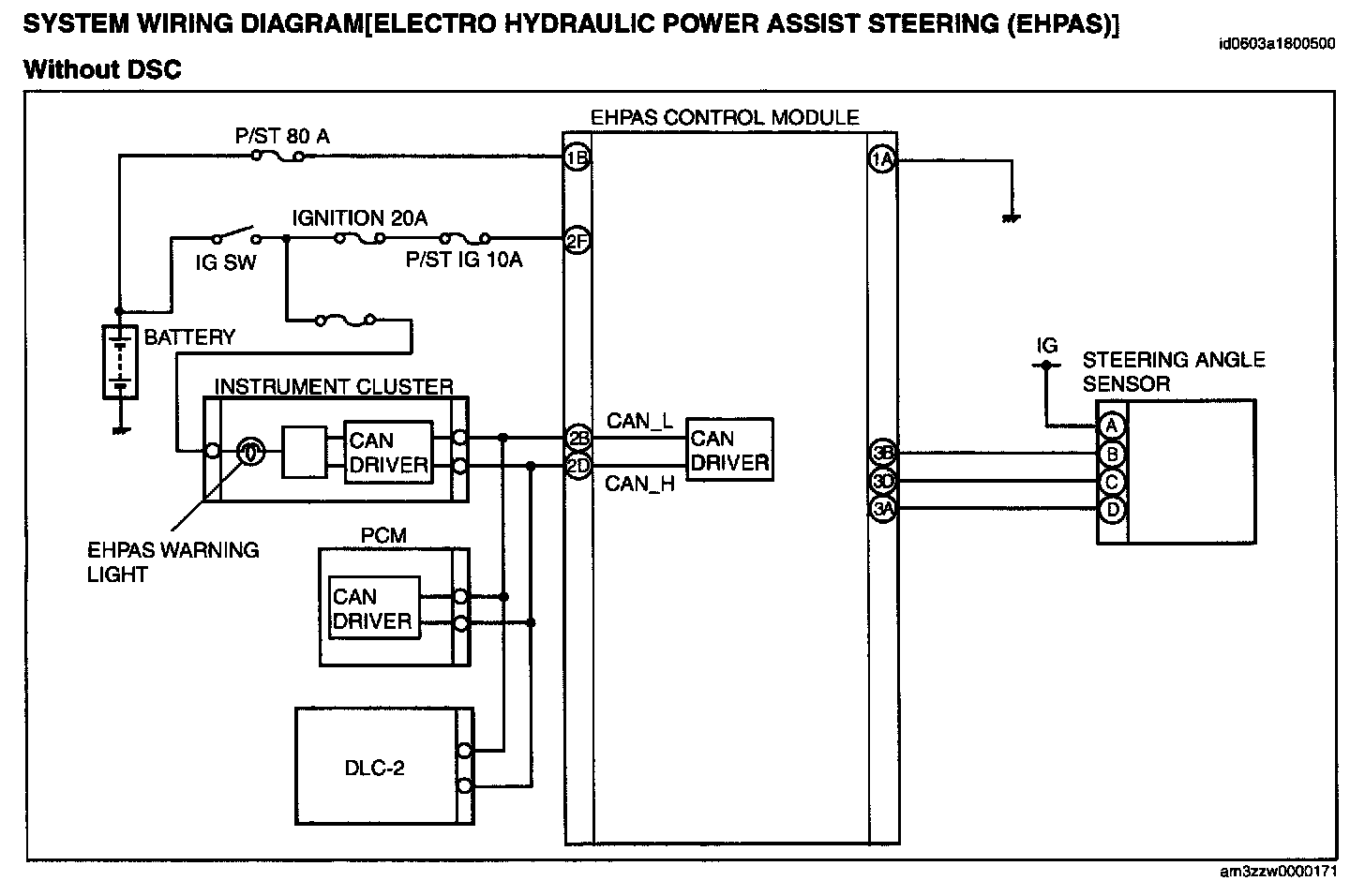

Without DSC

Diagram 06-03-1:





With DSC

Diagram 06-03-2:
