Home >> Mazda >> 2007 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0922-3 (Information Display)

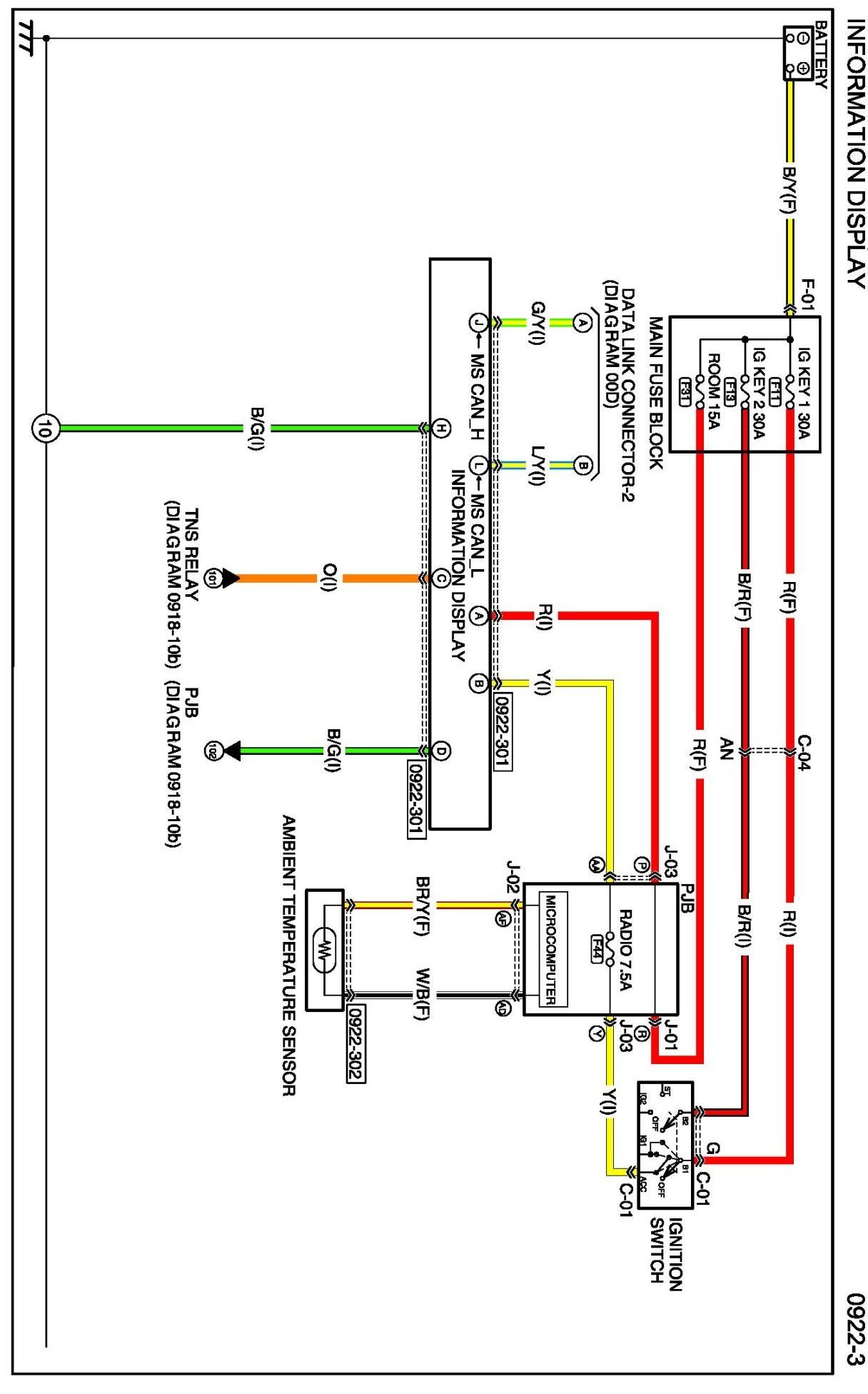

Diagram 0922-3 (Information Display)

Diagram 0922-3:
