No.28 Gear Position Indicator Light Illuminate In P, R or N Range [AW6A-EL, AW6AX-EL]
No.28 Gear Position Indicator Light Illuminate In P, R or N Range [AW6A-EL, AW6AX-EL]
NO.28 GEAR POSITION INDICATOR LIGHT ILLUMINATE IN P, R OR N RANGE [AW6A-EL, AW6AX-EL]

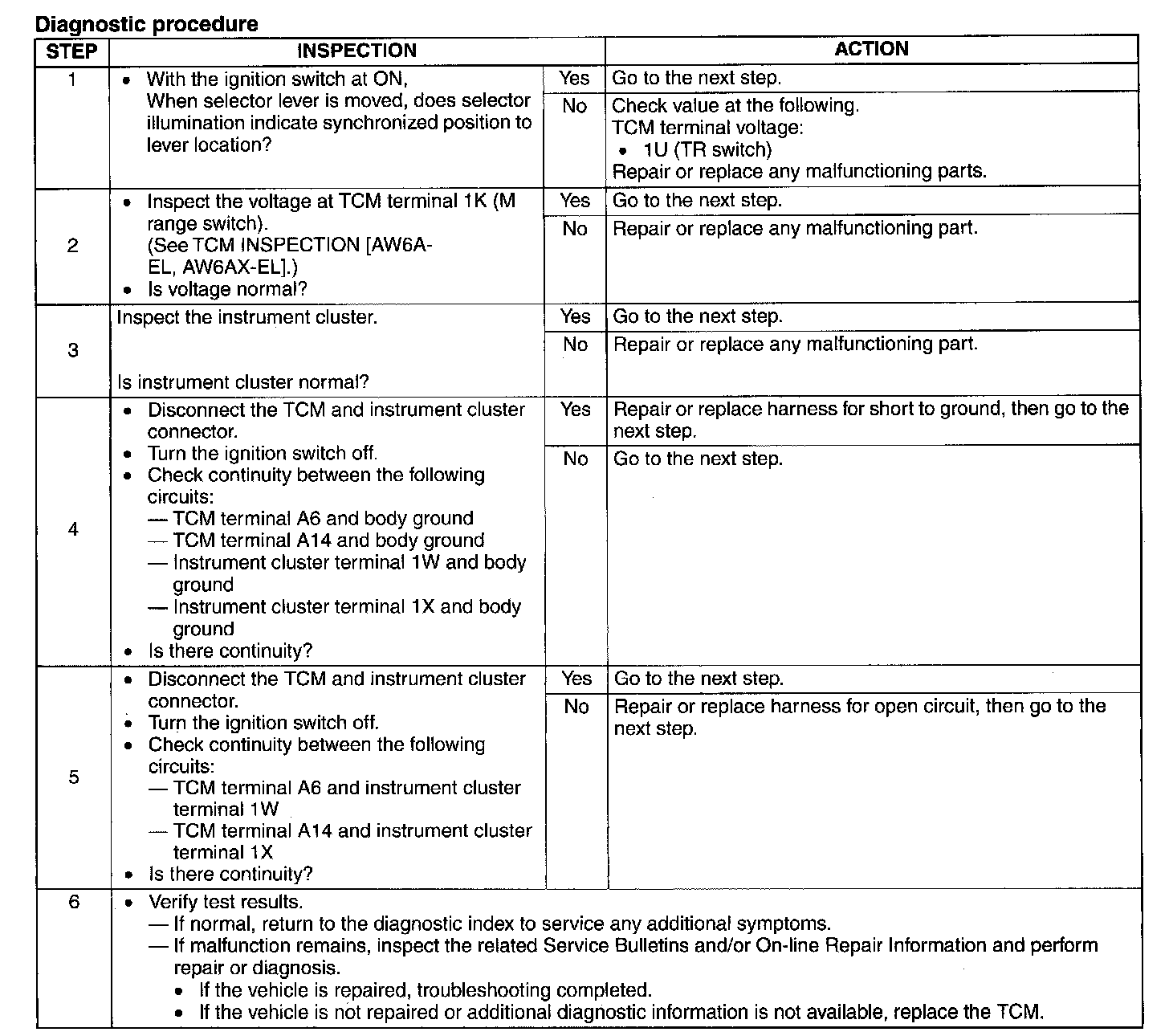

Diagnostic procedure
Step 1-Step 6:
