Mazda
>>
2007
>>
CX-9 V6-3.5L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Wiper and Washer Systems
>>
Windshield Washer Switch
>>
Locations
>>
Connector Locations
Connector Locations

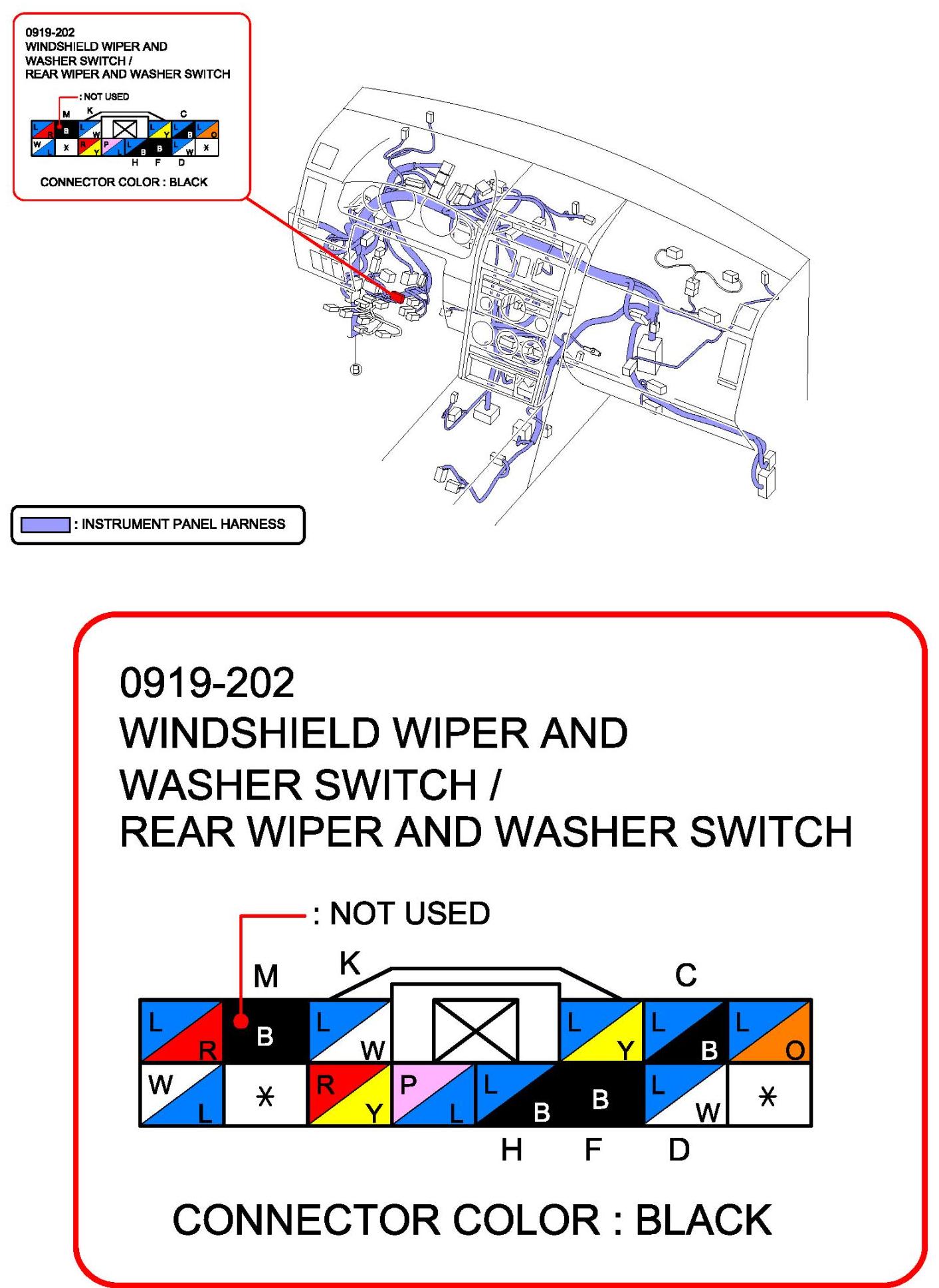

Windshield Wiper And Washer Switch/Rear Wiper And Washer Switch:

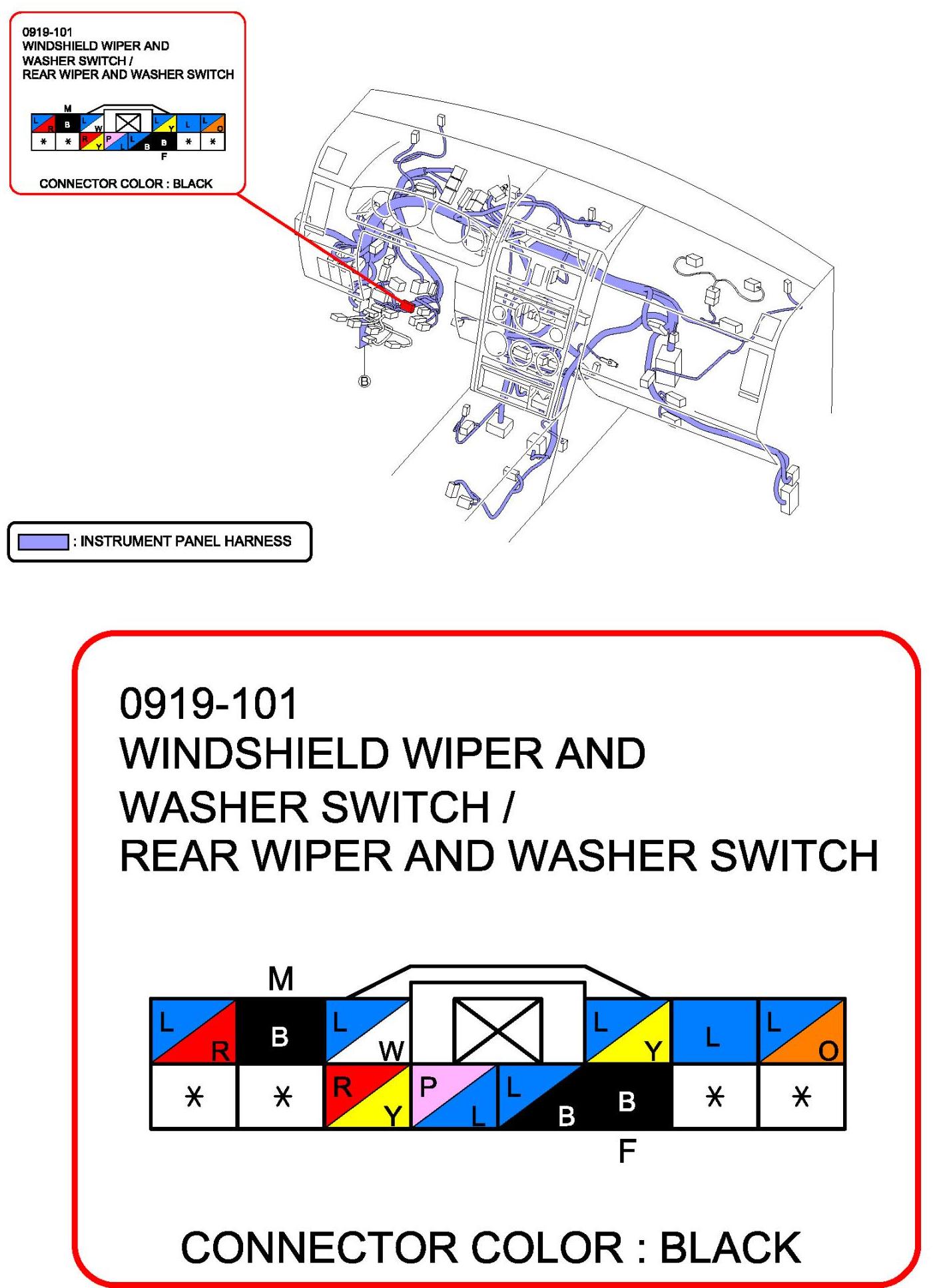

Windshield Wiper And Washer Switch/Rear Wiper And Washer Switch:
