Connector Locations

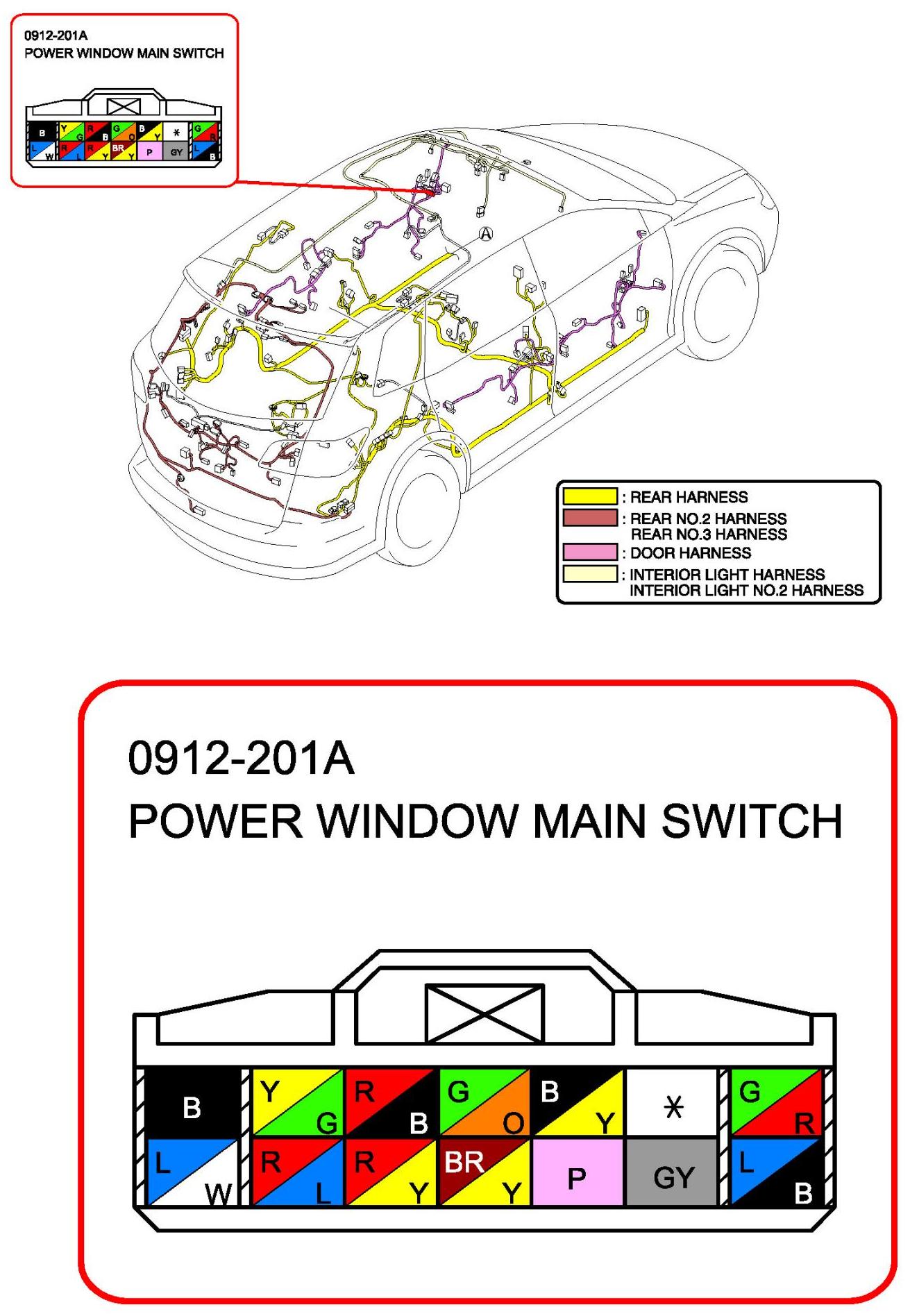

Power Window Main Switch:

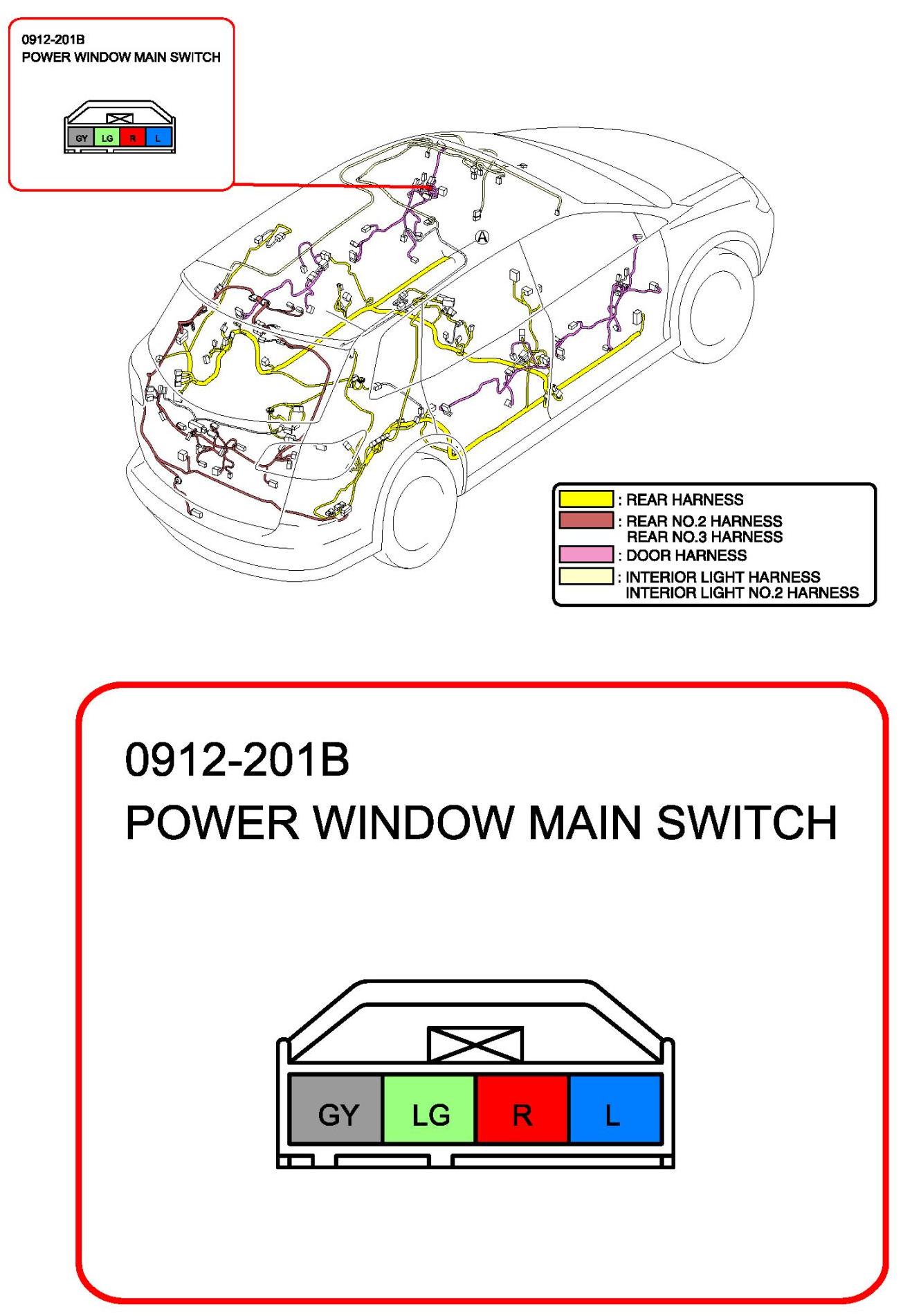

Power Window Main Switch:

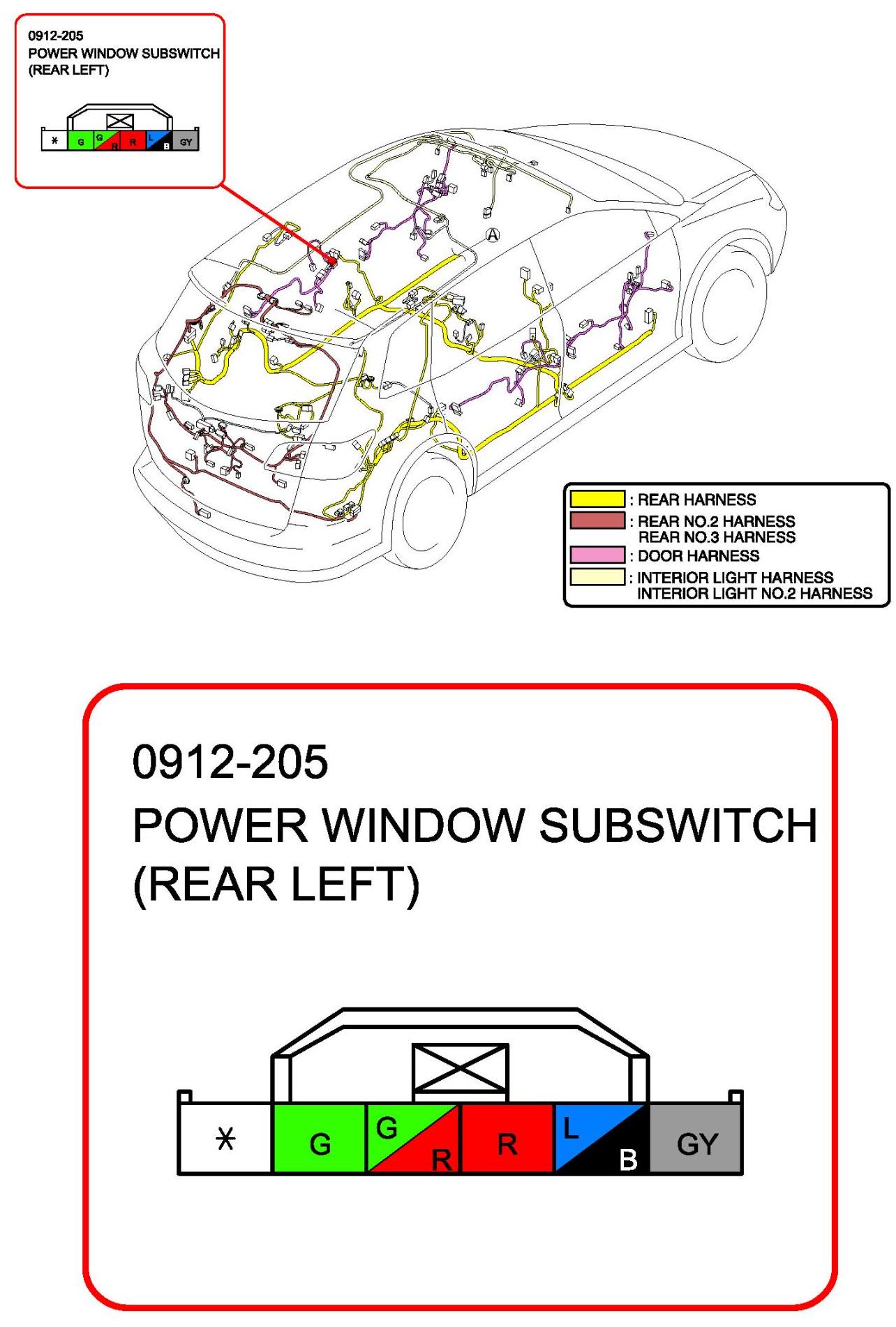

Power Window Subswitch (Rear Left):

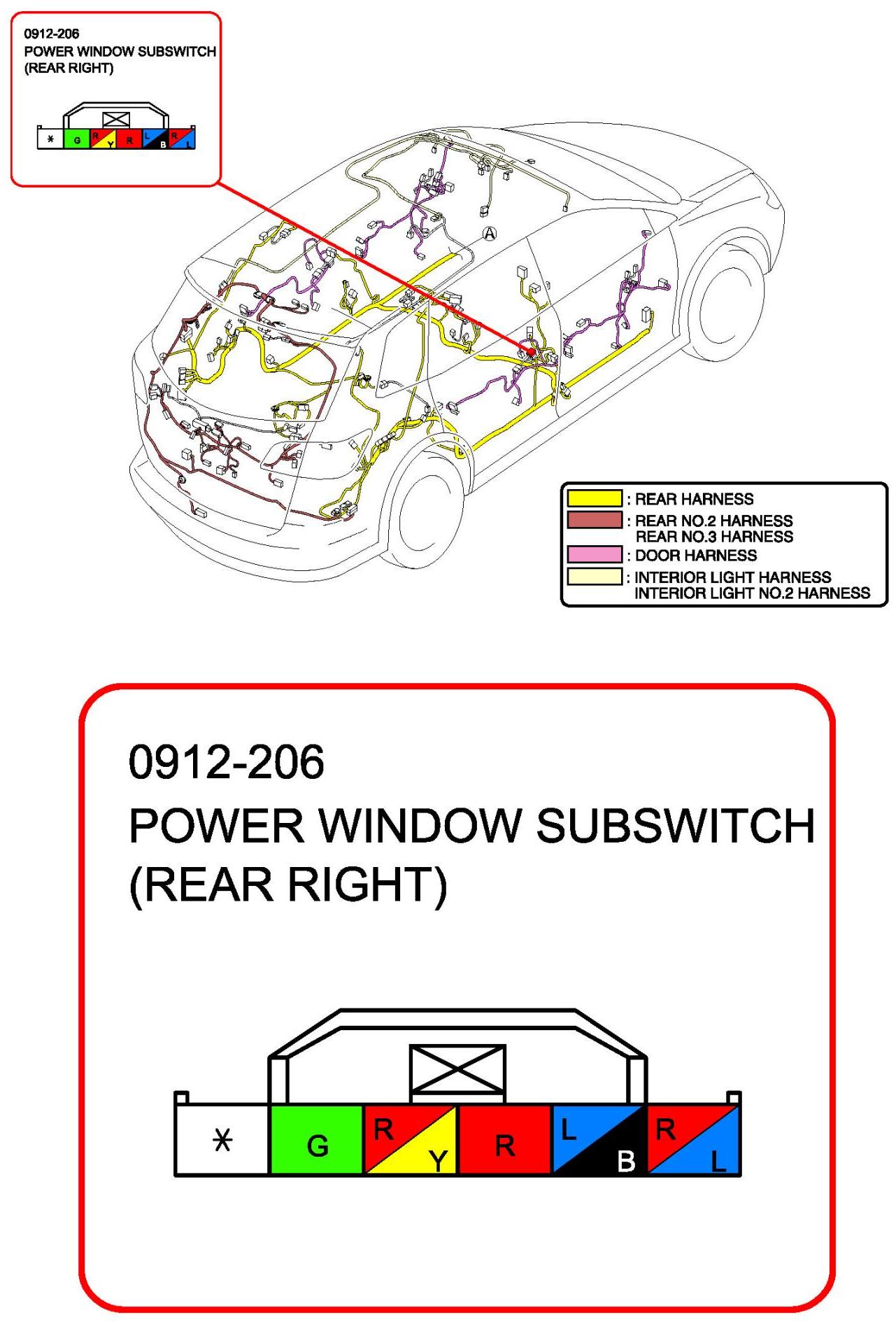

Power Window Subswitch (Rear Right):
